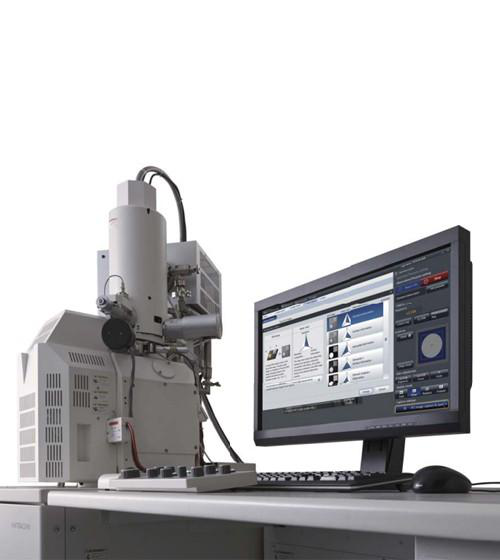

SU5000 Scanning Electron Microscope
Material Analysis and Forensics

SU5000 Scanning Electron Microscope

Supplier
Ybsemi-Solution
Part Number
SU5000 Scanning Electron Microscope
Category
Material Analysis and Forensics
Origin
China

The SU5000 Scanning Electron Microscope (SEM) offers advanced imaging capabilities with intuitive operation, enabling users to achieve high-quality images efficiently.

Specification Snapshot
Maximum Sample Size
200mm diameter
Maximum Sample Height
80mm
Display Mode Standard
1,280×960 resolution
Display Mode Reduced
800×600 resolution
Display Mode Dual
1,280×960 resolution
Image Data Storage
640×480, 1,280×960, 2,560×1,920, 5,120×3,840
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The SU5000 Scanning Electron Microscope (SEM) offers advanced imaging capabilities with intuitive operation, enabling users to achieve high-quality images efficiently.

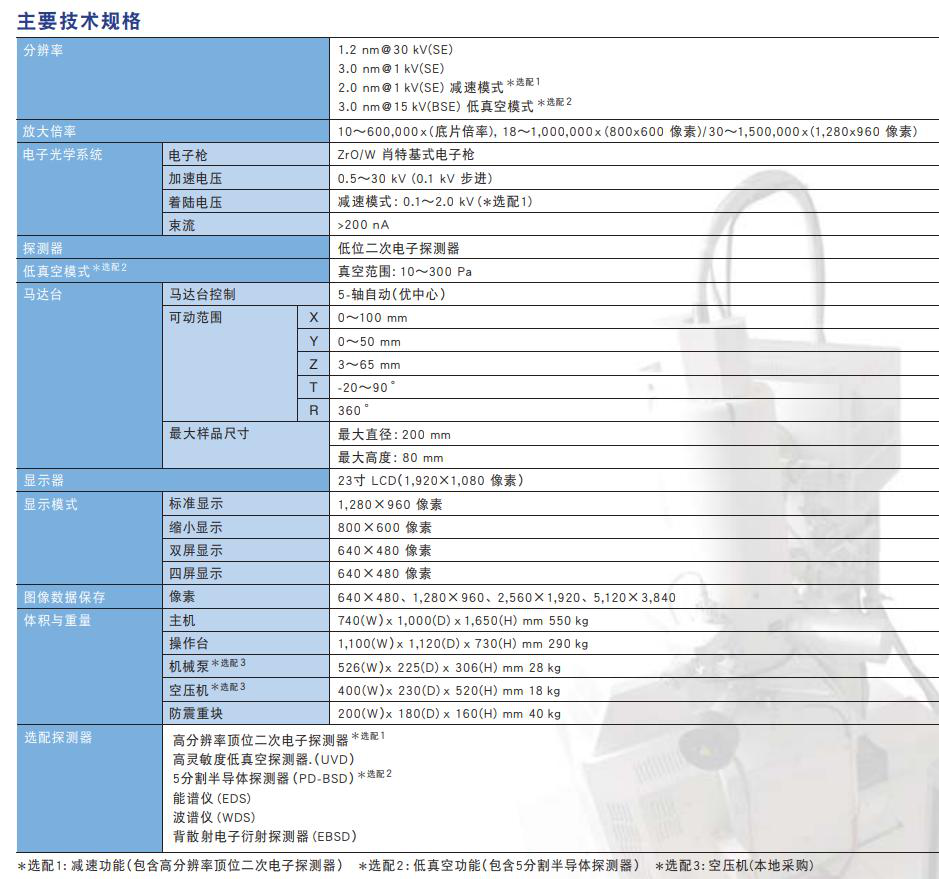

Specifications

ParameterValue
Resolution 1.2nm@30kV(SE)1.2nm
Resolution 3.0nm@1kV(SE)3.0nm
Resolution 2.0nm@1kV(SE)2.0nm
Resolution 2.0nm@15kV(BSE)2.0nm
Magnification10–600,000× (low vacuum mode), 18–1,000,000× (800×600 image), 30–1,500,000× (1,280×960 image)
Electron GunZr/O/W Schottky emission electron gun
Accelerating Voltage0.5–30kV (0.1kV step)
Decelerating Voltage0.1–2.0kV (optional)
Beam Current≥200nA
DetectorLow vacuum secondary electron detector
Low Vacuum Range10–300Pa
Stage Control5-axis motorized (centered)
Movable Range T-20–90°
Movable Range R360°
Maximum Sample Size200mm diameter
Maximum Sample Height80mm
Monitor23" LCD (1,920×1,080 resolution)
Display Mode Standard1,280×960 resolution
Display Mode Reduced800×600 resolution
Display Mode Dual1,280×960 resolution
Image Data Storage640×480, 1,280×960, 2,560×1,920, 5,120×3,840
Dimensions and Weight Main Unit740(W)×1,200(D)×1,650(H)mm, 550kg
Dimensions and Weight Operation Table1,100(W)×1,120(D)×730(H)mm, 90kg
Dimensions and Weight Cabinet526(W)×225(D)×306(H)mm, 28kg
Dimensions and Weight Anti-Vibration Table200(W)×180(D)×160(H)mm, 40kg
Optional Detector High-Resolution Low Vacuum Secondary Electron DetectorAvailable
Optional Detector Low Vacuum FunctionAvailable
Optional Detector Energy Dispersive Spectrometer (EDS)Available
Optional Detector Wavelength Dispersive Spectrometer (WDS)Available
Optional Detector Electron Backscatter Diffraction (EBSD)Available

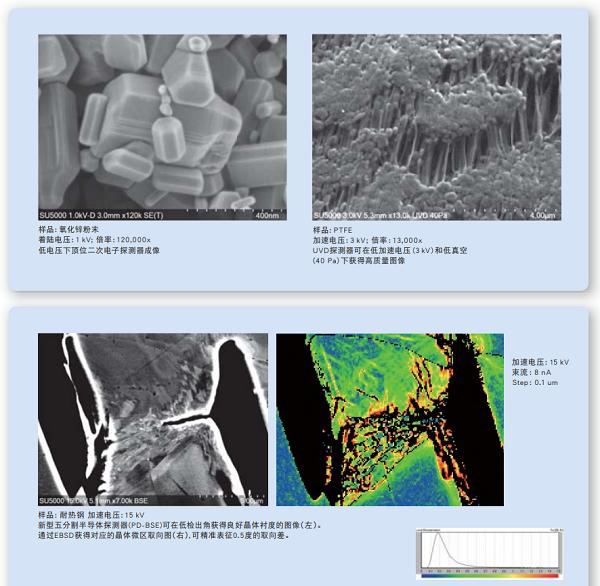

Applications

1. Material analysis 2. Surface observation 3. Elemental analysis 4. Industrial quality control

Key Features

1. Intuitive operation interface 2. High-resolution imaging 3. Advanced elemental and surface analysis capabilities 4. Flexible stage control for diverse sample sizes
