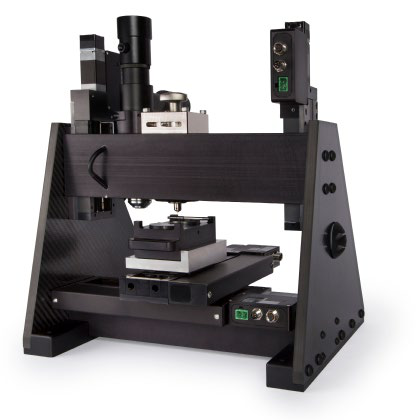

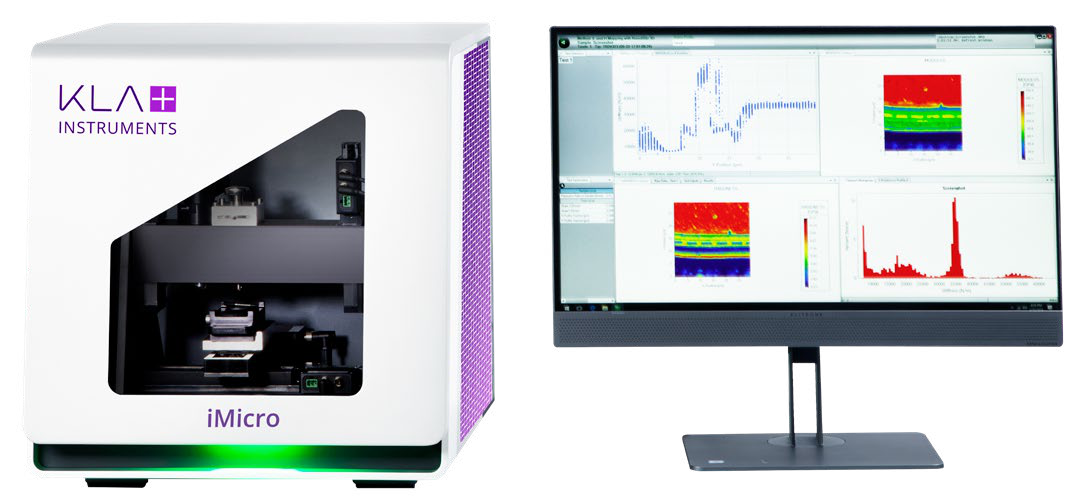

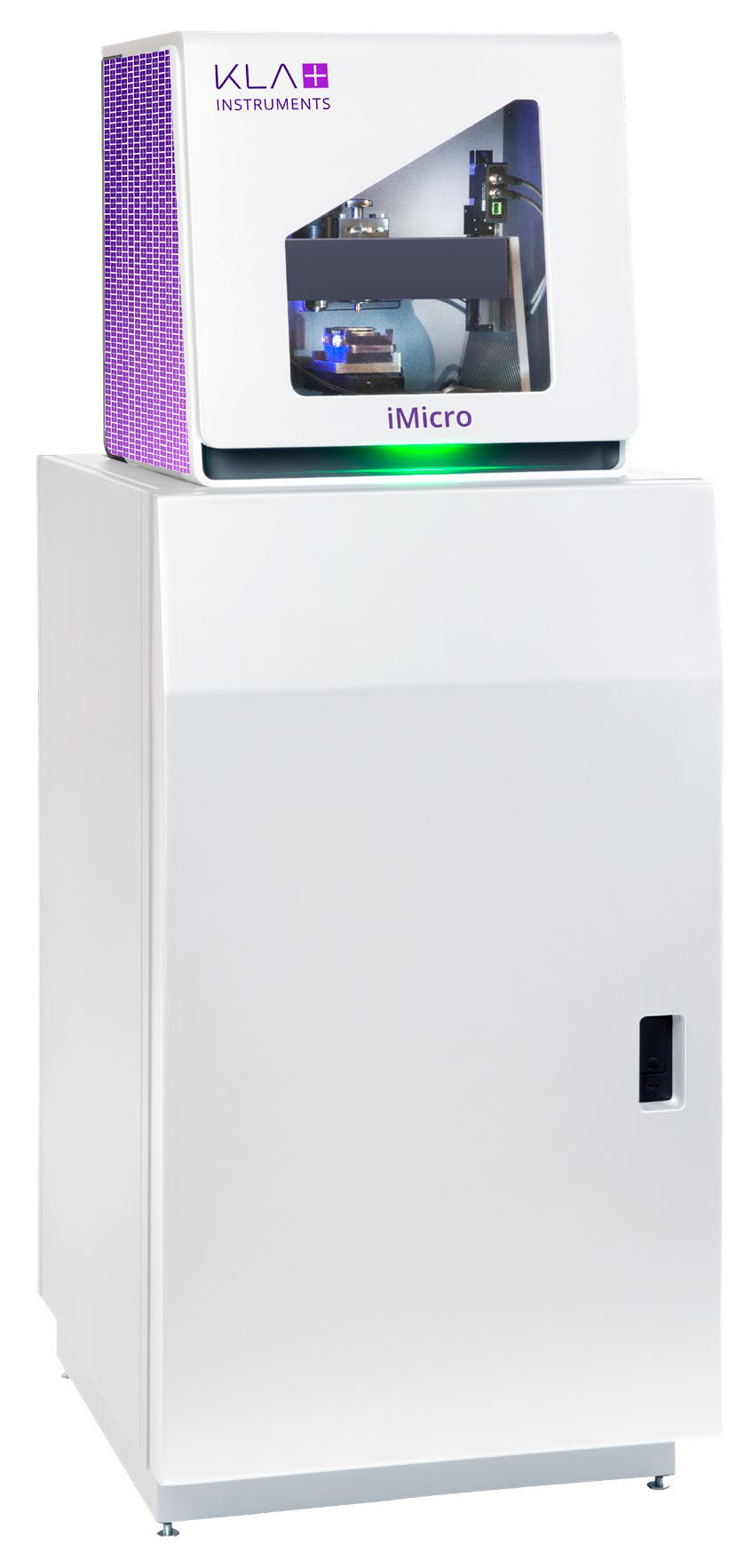

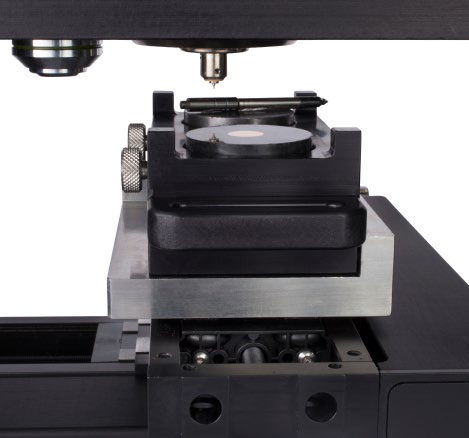

iMicro
iMicro is a comprehensive nano-mechanical testing instrument designed for precise and versatile material testing. It offers automated nanoindentation capabilities for hardness, modulus, and scratch testing, making it suitable for various applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Load Range | 1000mN |
| Maximum Resolution | 0.04μN |
| Maximum Indentation Depth | 80μm |
| Standard Mechanical Load Range | 1000mN |
| Standard Mechanical Load Accuracy | 6nN |
| Precision Load Range | 50mN |
| Precision Load Accuracy | 3nN |
| Data Acquisition Rate | 100kHz |
| Maximum Depth Resolution | 0.02nm |
| Maximum Indentation Depth (Soft Materials) | 45μm |
| High Precision Positioning Resolution | 1nm |
| High Precision Positioning Range | 106mm |
| Sample Heating Temperature | 300°C |

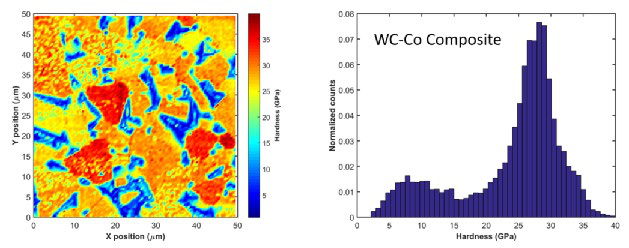

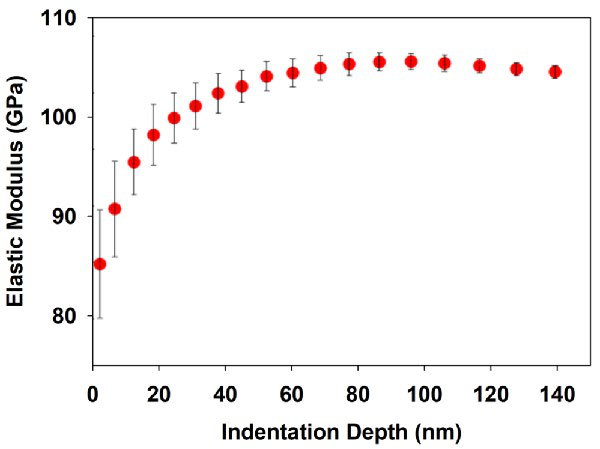

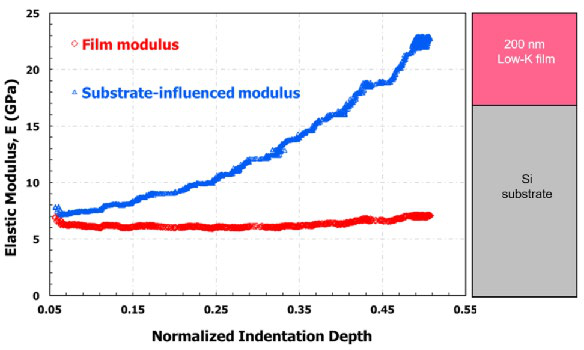

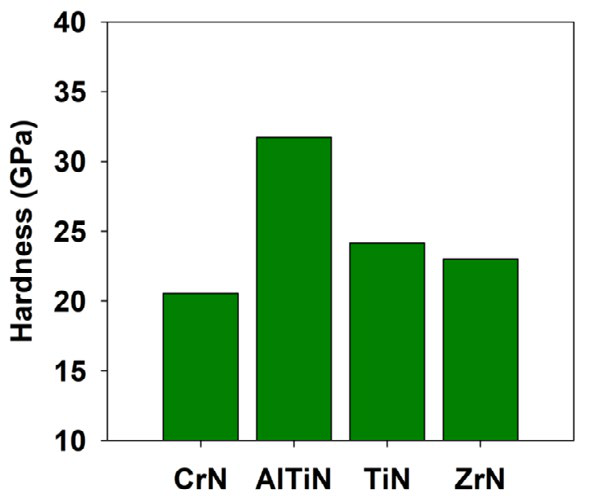

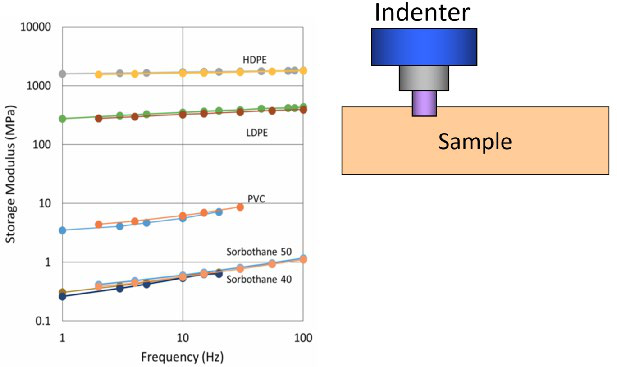

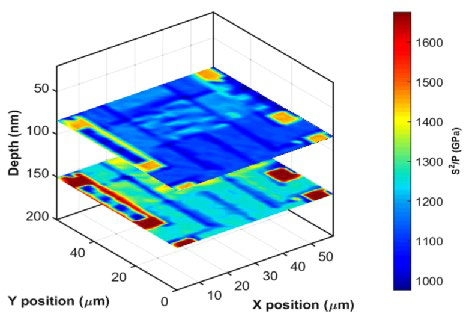

Applications
Key Features
Datasheet
