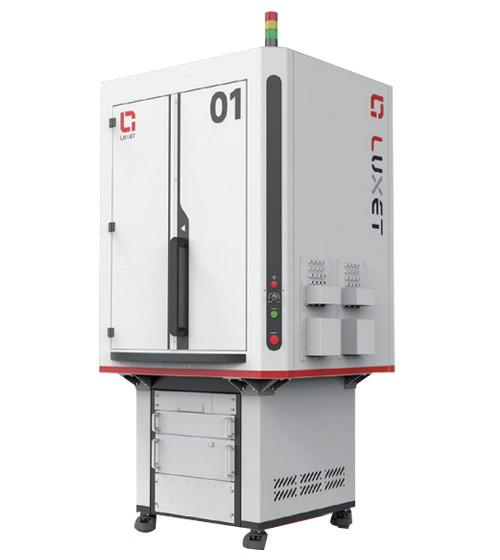

Thermo 100
Thermo 100 is a high-precision optical device designed for infrared measurement and imaging applications. It features advanced cooling technology and multiple lens options for versatile use.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

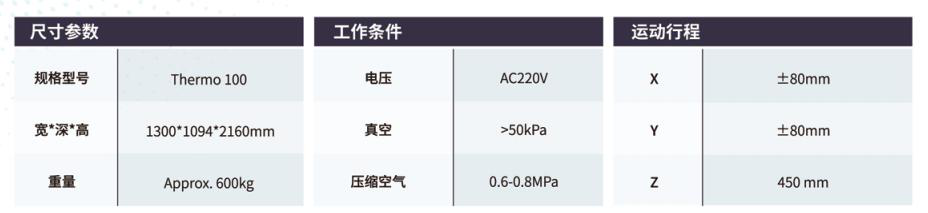

| Model | Thermo 100 |
| Dimensions | 1300*1094*2160mm |
| Weight | Approx.600kg |
| Voltage | AC220V |
| Vacuum | >50kPa |
| Compressed Air | 0.6-0.8MPa |
| Travel Range X | ±80mm |
| Travel Range Y | ±80mm |
| Travel Range Z | 450mm |
| Detector | InSb |
| Detector | MCT |
| Array Size | 640*512 |
| Cooling Method | Stirling cooler |
| Thermal Sensitivity | <25mK |
| Cooling Lifetime | 20000h |

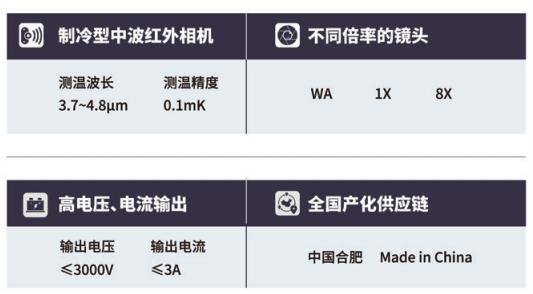

| Temperature Measurement Wavelength | 3.7-4.8μm |
| Temperature Measurement Accuracy | 0.1mK |
| Output Voltage | ≤3000V |
| Output Current | ≤3A |
| Lens Model WA | 0.125 aperture, 96*76.8-19.2*15.36mm field of view, 180mm working distance, 1700g weight |
| Lens Model 1X | 0.125 aperture, 9.6*7.68mm field of view, 20μm resolution, 43.6mm working distance, 570g weight |
| Lens Model 8X | 0.8 aperture, 1.2*0.96mm field of view, 2μm resolution, 15.5mm working distance, 700g weight |
