GTA9012

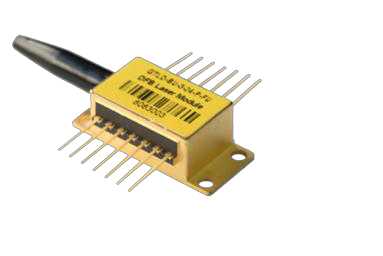

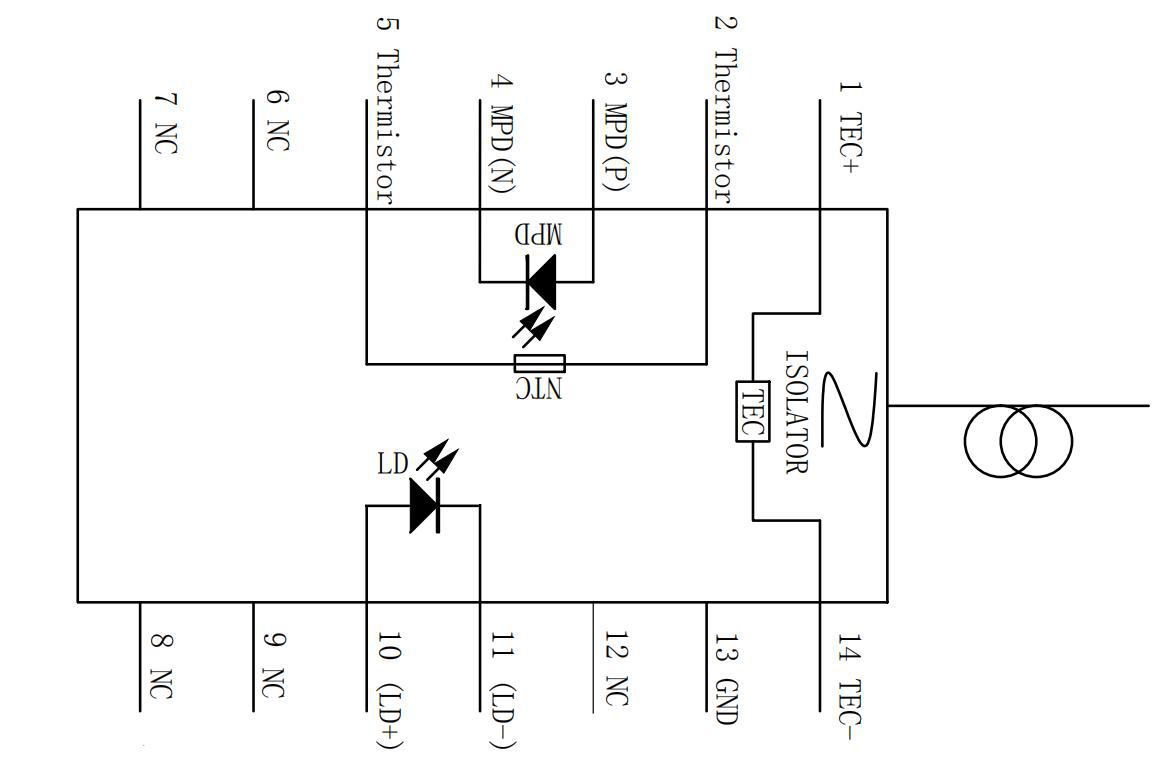

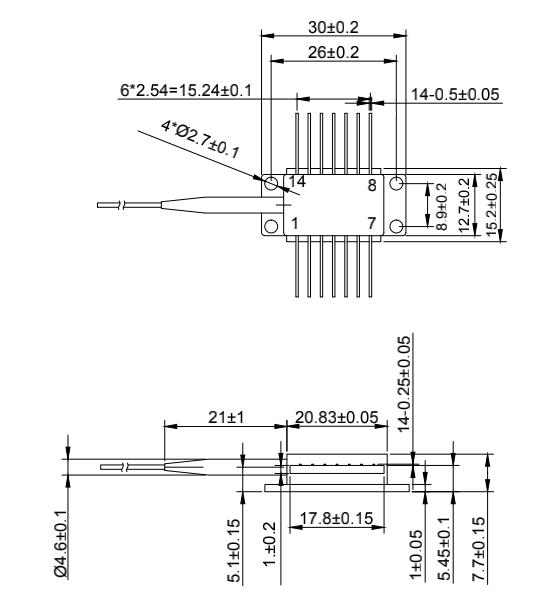

The GTA9012 is a 1650nm DFB Butterfly Laser Module with 14 pins, designed for high-performance optical communication applications. It features high linearity direct modulation, built-in isolator, TEC, thermistor, and monitor PD, and is RoHS compliant.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Laser Chip Current | 1200mA |
| Reverse Current (Laser Diode) | 2mA |
| Reverse Voltage | <500μA |
| Storage Temperature | -40~100°C |
| Soldering Temperature/Time | 260°C/10s |
| Relative Humidity | 95% Top<30°C |
| Thermal Electric Cooler Current | 1.5A |
| Fiber Yield Strength | 30nm |
| Fiber Bend Radius | 1kgf |
| Monitor Detector Reverse Photo Current | 1mA |
| Monitor Detector Forward Current | 2mA |
| Caser Operating Temperature Range | -20~60°C |
| Power Supply Voltage | 5V |
| Bias Current | 70mA |
| Thermoelectric Cooler Current | 1000mA |
| Thermoelectric Cooler Voltage | 2V |
| Operating Voltage | 3V |
| Threshold Current | 10~45mA |
| Thermistor | 9.5~10.5kΩ |
| Monitor Current | 10~150μA |
| Monitor Dark Current | 10~500nA |
| Central Wavelength | 1645~1650nm |
| Output Power | 1~100mW |
| Side Mode Suppression Ratio | 30~50dB |
| Slope Efficiency | 0.3mW/mA |
| Spectral Width | 0.3nm |
| Tracking Error | 1dB |
| Monitor PD Capacitance | 0.5pF |
| Connector Repeatability | 0.3dB |
| Frequency Range | 45~1000MHz |
| Rise Time/Fall Time | 2.0ns |
