E2Y-806C-360C-VH1.1(1x6) Micro-Channel Water-Cooled Vertical Stack

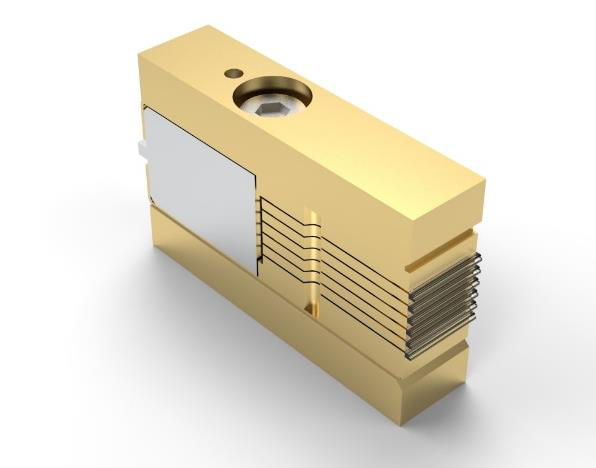

The E2Y-806C-360C-VH1.1(1x6) is a micro-channel water-cooled vertical diode laser stack from BWT (Kaiplin). It integrates 6 laser bars in a compact gold-plated package and delivers 360W CW output power at a center wavelength of 806nm. With fast-axis collimation (FAC), low smile effect, high electro-optical efficiency of up to 57% and reliable micro-channel water cooling, this vertical stack is an ideal pump source for DPSS lasers as well as for scientific research, medical and material processing applications.
Save to Favorites
Overview
Specifications

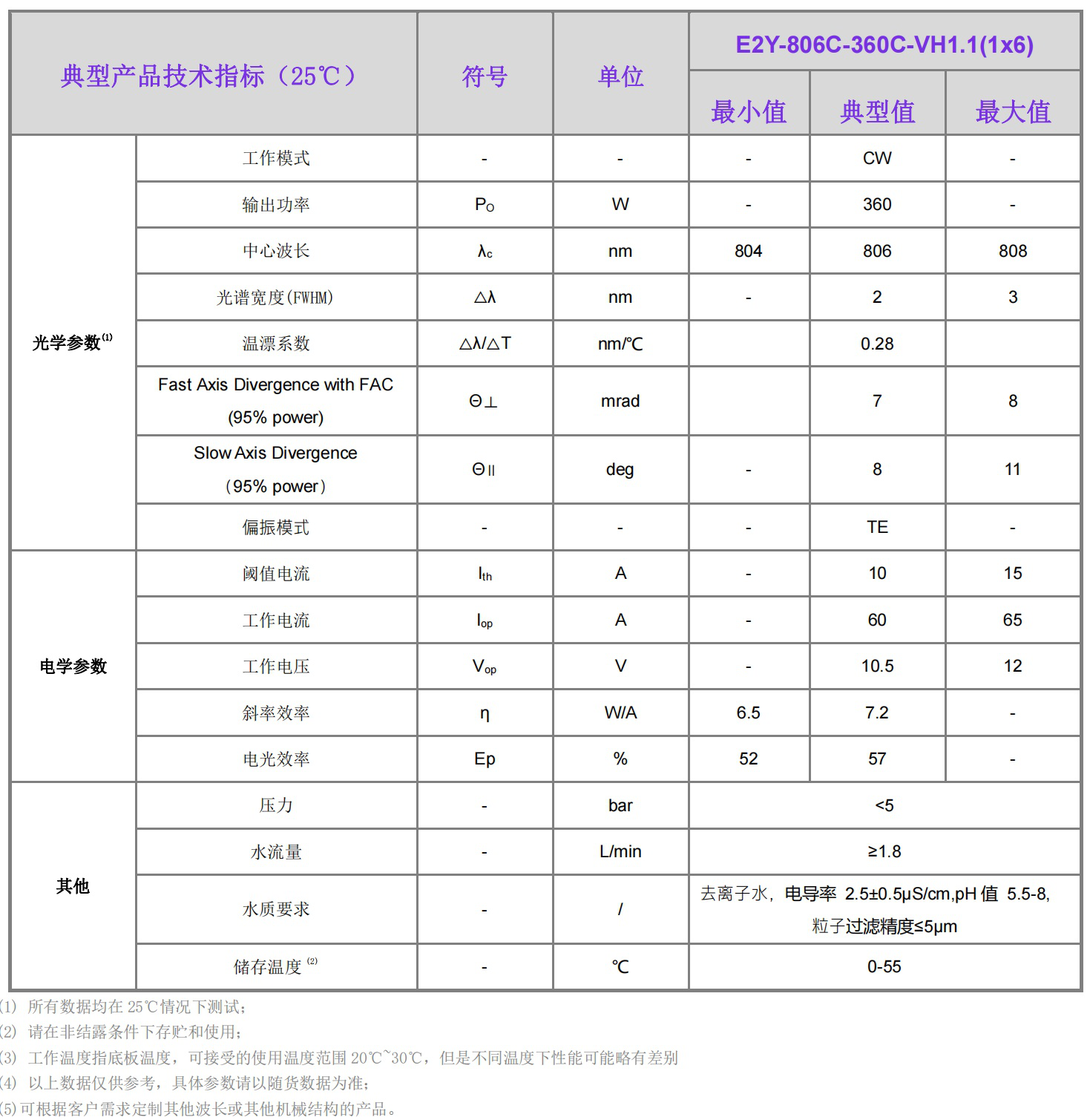

| Parameter | Value |
|---|---|
| Operation Mode | CW |
| Output Power (Typ.) | 360W |
| Center Wavelength (Min.) | 804nm |
| Center Wavelength (Typ.) | 806nm |
| Center Wavelength (Max.) | 808nm |
| Spectral Width FWHM (Typ.) | 2nm |
| Spectral Width FWHM (Max.) | 3nm |
| Wavelength Temperature Coefficient | 0.28nm/℃ |
| Fast Axis Divergence with FAC (95% Power) (Typ.) | 7mrad |
| Fast Axis Divergence with FAC (95% Power) (Max.) | 8mrad |
| Slow Axis Divergence (95% Power) (Typ.) | 8deg |
| Slow Axis Divergence (95% Power) (Max.) | 11deg |
| Threshold Current (Typ.) | 10A |
| Threshold Current (Max.) | 15A |
| Operating Current (Typ.) | 60A |
| Operating Current (Max.) | 65A |
| Operating Voltage (Typ.) | 10.5V |
| Operating Voltage (Max.) | 12V |
| Slope Efficiency (Min.) | 6.5W/A |
| Slope Efficiency (Typ.) | 7.2W/A |
| Electro-Optical Conversion Efficiency (Min.) | 52% |
| Electro-Optical Conversion Efficiency (Typ.) | 57% |
| Number of Laser Bars | 6 |
| Cooling Water Pressure | <5bar |
| Water Flow Rate | ≥1.8L/min |
| Water Quality Requirements | Deionized water; conductivity: 2.5±0.5 μS/cm; pH: 5.5-8; particle filtration rating: ≤5 μm |
| Operating Temperature | 20℃~30℃ |
| Storage Temperature | 0-55℃ |

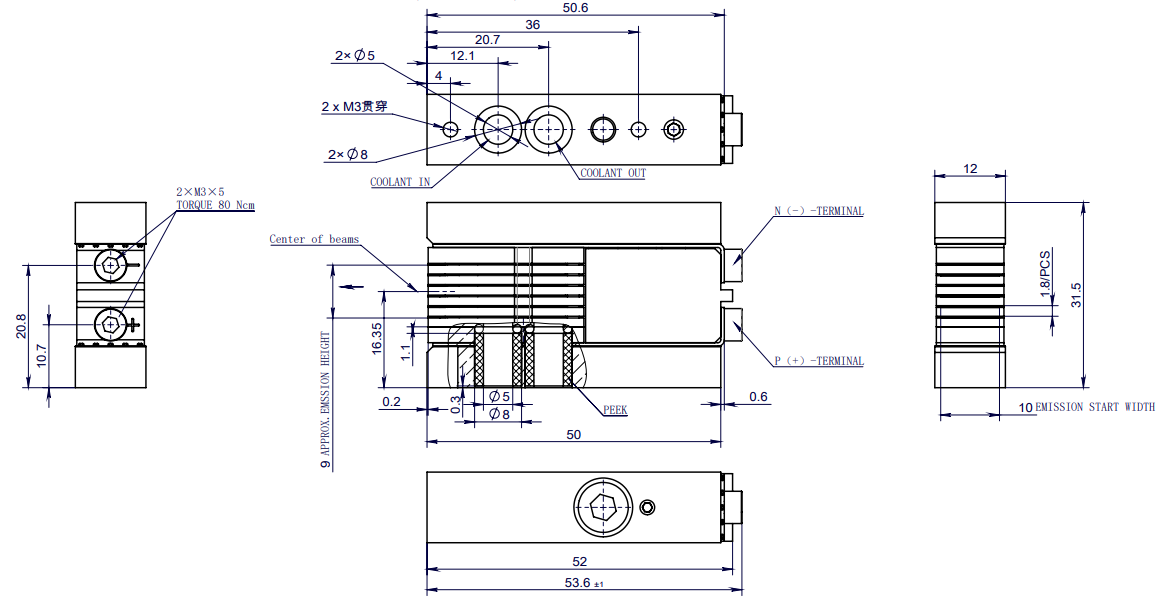

| Dimensions (L×H×W) | 53.6mm×31.5mm×12mm |
| Mounting Holes | 2×M3,2×Φ5,2×Φ8 |
