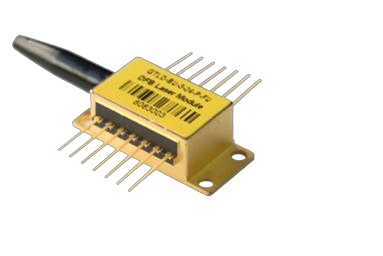

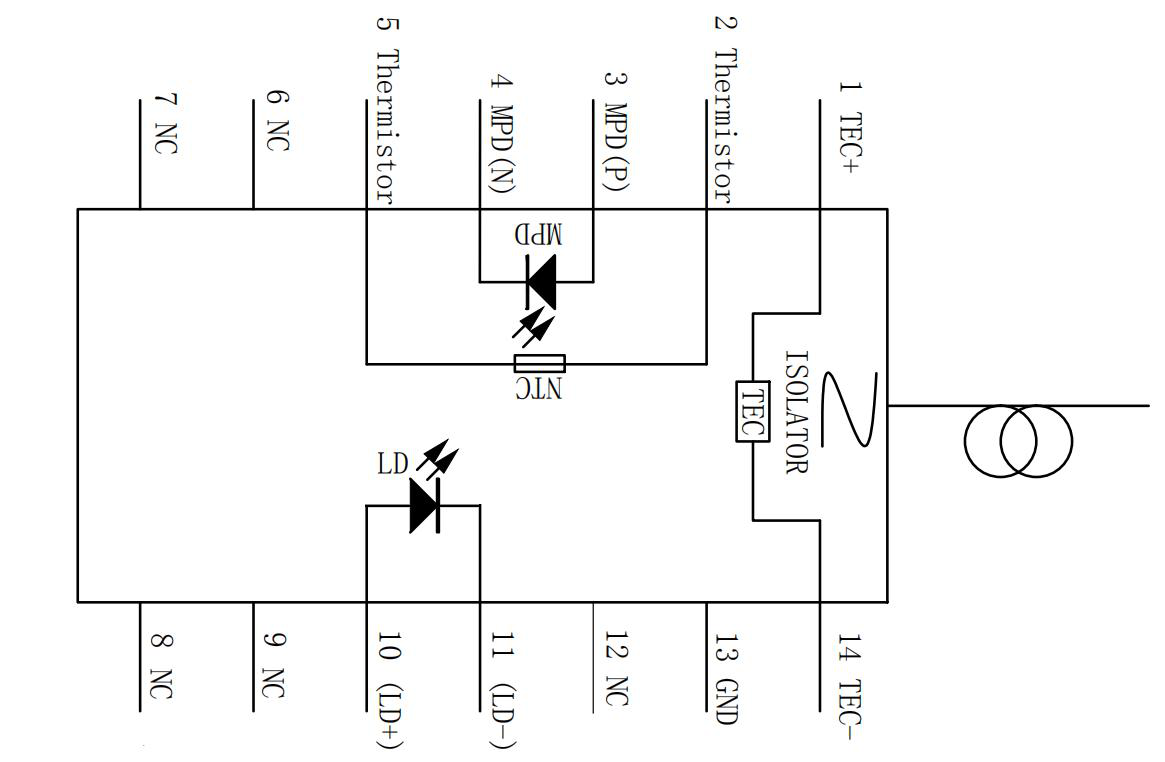

GTA9050 & GTA9060 DFB Butterfly Laser Modules
The GTA9050 and GTA9060 are high-performance DFB butterfly laser modules designed for optical communication and sensing applications. They feature high output power, built-in isolators, and advanced monitoring capabilities.
Save to Favorites
Overview

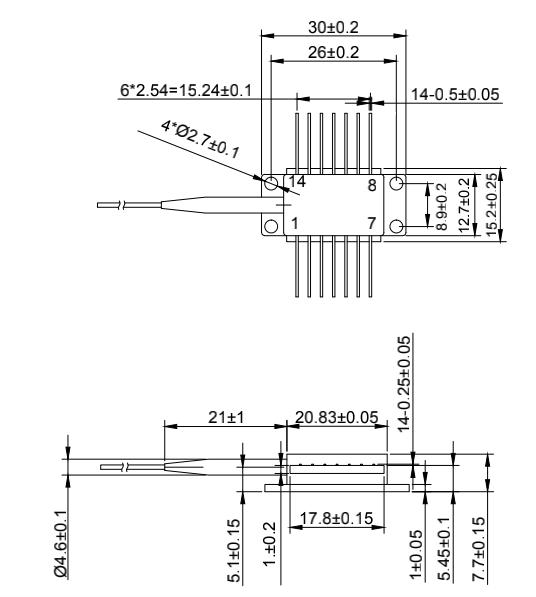

Specifications
| Parameter | Value |
|---|---|
| Side Mode Suppression Ratio (SMSR) GTA9050 | 30~50dB |
| Side Mode Suppression Ratio (SMSR) GTA9060 | 30~50dB |
| Slope Efficiency | 0.3mW/mA |
| Spectral Width | 0.3nm |
| Bias Current | 70mA |
| Tracking Error | 0.5dB |
| Monitor PD Capacitance | 0.5pF |
| Connector Repeatability | 0.3dB |
| Frequency Range | 45~1000MHz |
| Rise Time/Fall Time | 2.0ns |
| Operating Temperature Range | -20~60°C |
| Storage Temperature | -40~100°C |
| Power Supply Voltage | 5V |
| Relative Humidity | 80% |
| Thermoelectric Cooler Current | 1000mA |
| Thermoelectric Cooler Voltage | 2V |
| Threshold Current | 10~45mA |
| Thermistor | 9.5~10.5kΩ |
| Monitor Current | 10~150μA |
| Monitor Dark Current | 500nA |
| Central Wavelength GTA9050 | 1305~1310nm |
| Central Wavelength GTA9060 | 1545~1550nm |
| Output Power GTA9050 | 1~300mW |
| Output Power GTA9060 | 1~250mW |
| Laser Chip Current | 1200mA |
| Reverse Current | 2mA |
| Reverse Voltage | 15V |
| Fiber Bend Radius | 1kgf |
| Fiber Yield Strength | 30nm |
