Pump Protector

Pump Protector

Supplier
Fibretop
Part Number
Pump Protector
Category
Pump Source
Origin
China

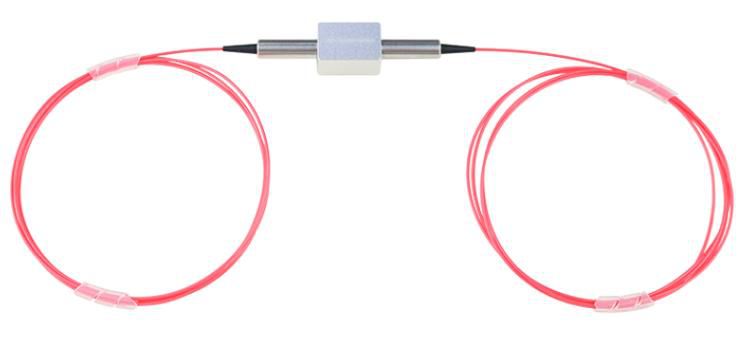

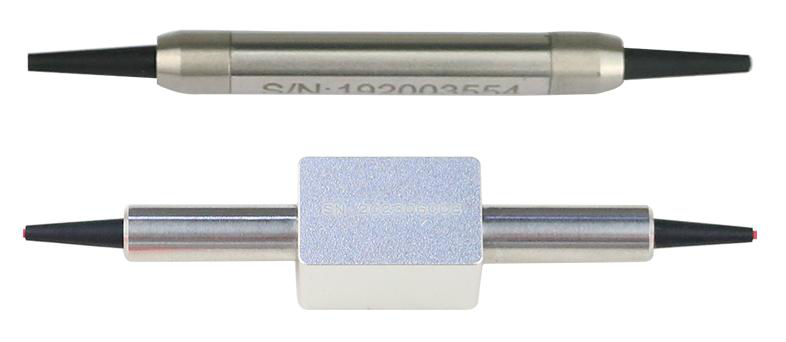

The pump protector is designed to prevent ASE back-reflected light from damaging pump lasers. It provides pump protectors with different power levels for wavelengths ranging from 800 to 2000nm.

Specification Snapshot
Signal Wavelength Range (nm) 1020~1120
1020~1120
Signal Wavelength Range (nm) 1530~1570
1530~1570
Polarization Dependent Loss (dB)
0.2
Return Loss (dB)
50
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The pump protector is designed to prevent ASE back-reflected light from damaging pump lasers. It provides pump protectors with different power levels for wavelengths ranging from 800 to 2000nm.

Specifications

ParameterValue
Pump Laser Central Wavelength (nm) 793/808793/808
Pump Laser Central Wavelength (nm) 915/974/976915/974/976
Operating Wavelength Range (nm)±15
Signal Wavelength Range (nm) 1020~11201020~1120
Signal Wavelength Range (nm) 1530~15701530~1570
Maximum Insertion Loss (dB)0.6
Minimum Isolation (dB)30
Polarization Dependent Loss (dB)0.2
Return Loss (dB)50
Power Handling-CW (W)0.5, 1, 5, 10
Fiber TypeMM fiber
Fiber Length1m or customized
Connector TypeFC/APC or customized
Maximum Input Power (W)5

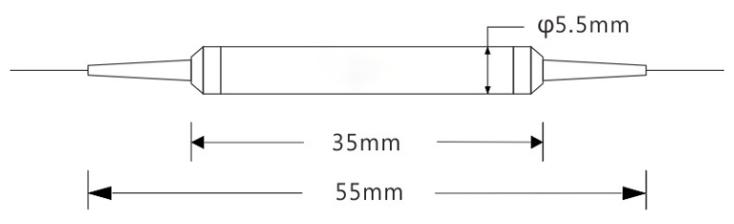

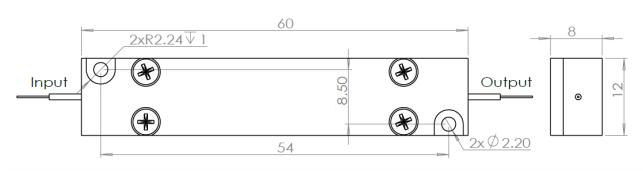

Package Dimensions (mm)φ5.5xL35, or 60x12x8
Operating Temperature (°C)-5~+60
Storage Temperature (°C)-40~+85

Applications

1. Fiber laser devices and fiber amplifiers 2. Fiber communication systems 3. Fiber sensing 4. Scientific research

Key Features

1. High power handling 2. Low insertion loss 3. High stability and reliability 4. Compact structure
