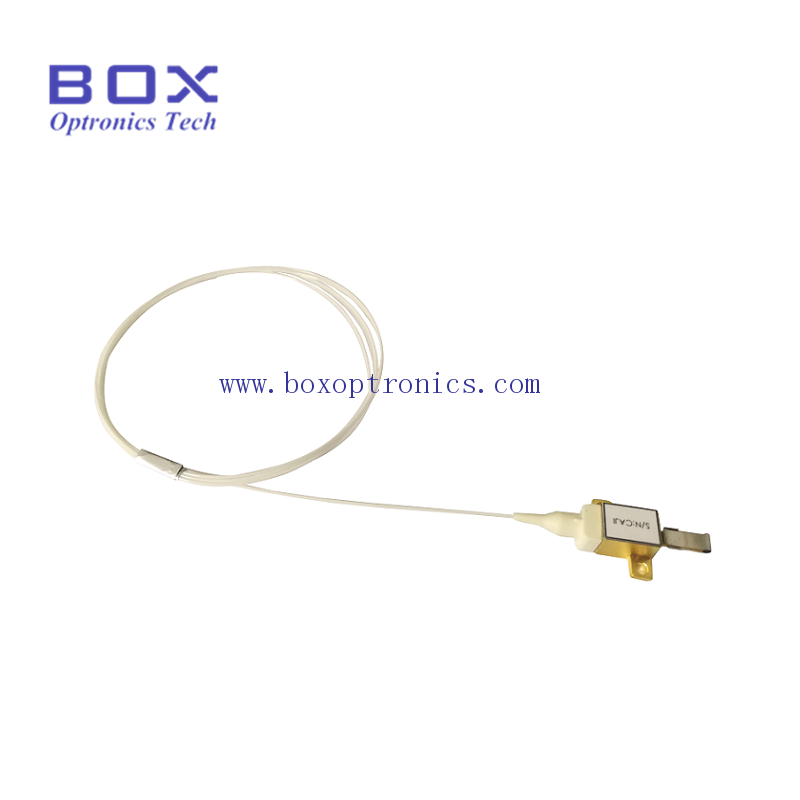

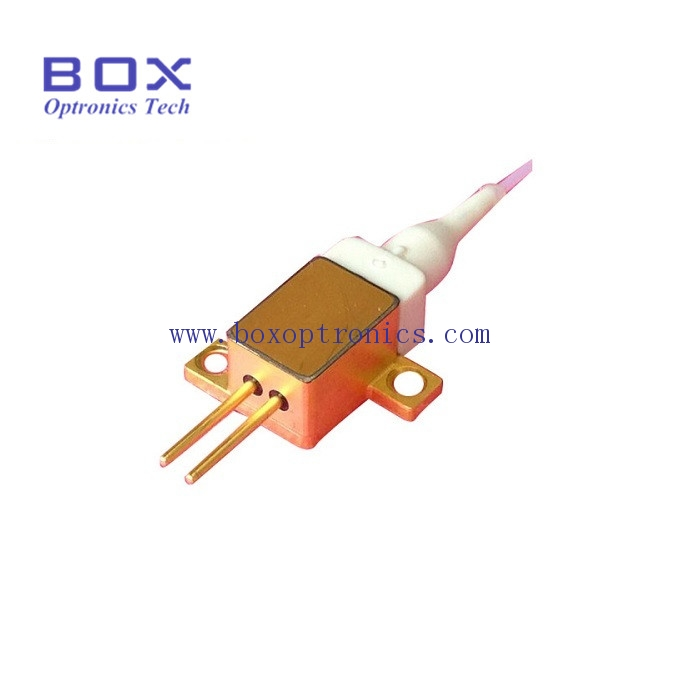

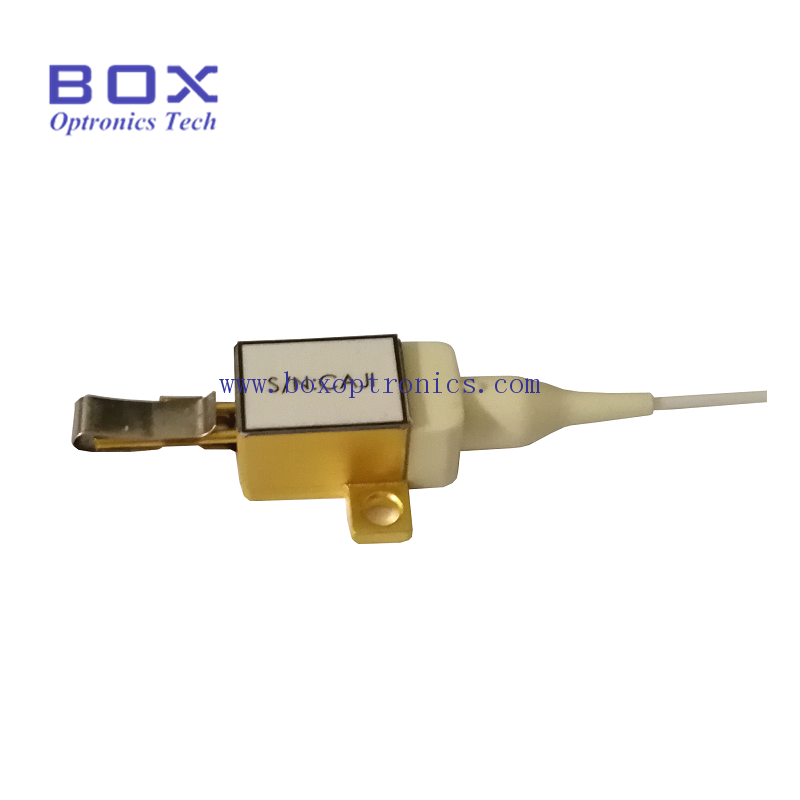

10W 915nm 0.22NA High power laser
The 915nm multimode pump laser diode module uses fiber coupling and a highly reliable L4 package. It provides high output power up to 10 watts in a fiber-coupled package.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 光输出功率 Pₒᵤₜ | min:10.0 W |
| 有效波长范围 λ | min:905.0 nm；typical:915 nm；max:925.0 nm |
| 光谱宽度 Δλ [@FWHM] | typical:3.0 nm |
| 阈值电流 Ith | typical:0.3 A |
| 工作电流 Iₒₚ | typical:12.0 A；max:14.0 A |
| 正向电压 V_f | max:2.0 V |
| 功率转换效率 | typical:48% |
| 斜率效率 η | typical:1.0 W/A |
| Feedback保护(1040-1100nm) | max:3.0 V |
| 纤芯/包层直径 D_COR | typical:105/125 |
| 光纤数值孔径 NA | typical: 0.22 |
