HAUCORE Semiconductor Laser Diodes for Industrial & Sensing

Shandong Huaguang Optoelectronics Co., Ltd. (HAUCORE) is a leading high-tech manufacturer of compound semiconductor optoelectronic devices, founded in 1999 and headquartered in Jinan, China, with two R&D and production bases in Jinan and Weifang. With a fully integrated industrial chain covering epitaxial material growth, die fabrication, device packaging, and laser module assembly, HAUCORE supplies high-stability semiconductor laser diodes with power ranging from milliwatts to kilowatts and wavelengths from ultraviolet to near-infrared. Our products are widely deployed in measurement and sensing, intelligent manufacturing, medical and aesthetic care, lithography and printing, and we also offer custom wavelength development and tailored packaging services for global customers.

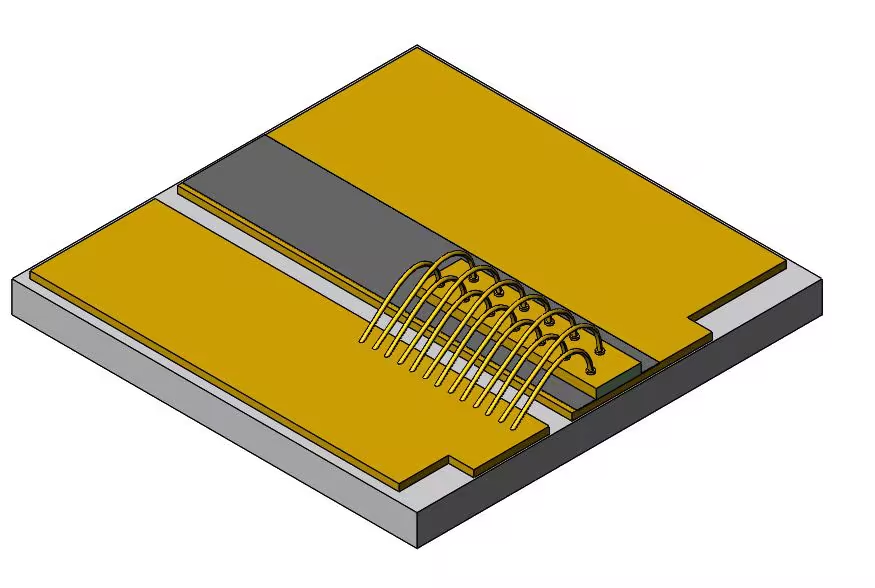

HGLD-808-COS-D-5W: 5W 808nm COS Laser Diode for Pumping & Industrial Processing

The HGLD-808-COS-D-5W is a high-power chip-on-submount (COS) laser diode manufactured with advanced gold-tin bonding technology, delivering exceptional long service life and high reliability for quasi-continuous wave (QCW) operation.

This 808nm laser diode features a center wavelength of 805 nm with a tolerance of ±5 nm, a narrow spectral linewidth of less than 2 nm FWHM, and a wavelength temperature coefficient of 0.3 nm/℃. Under 25℃ QCW operation, it delivers 5 W output power with a wall-plug efficiency of up to 58%, a threshold current of ≤0.7 A, and an operating voltage below 1.9 V. The device has a 200 μm stripe width and 2000 μm cavity length, with fast-axis divergence of less than 50° and slow-axis divergence of less than 8° at 95% power content.

As a reliable solid-state laser pumping source, this high-power laser diode is ideal for industrial material processing, laser display systems, medical and aesthetic equipment, and scientific research applications.

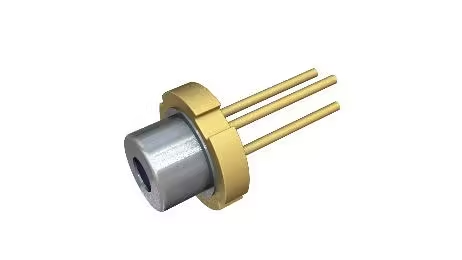

HGLD-790TO5.6-ZSP-10mW: 790nm TO5.6 Laser Diode for Sensing & Detection

The HGLD-790TO5.6-ZSP-10mW is a hermetically sealed TO5.6 packaged laser diode with a strained quantum well active region, optimized for high efficiency, high temperature resistance, and long-term reliability in compact sensing systems. It is available with an optional integrated monitoring photodiode for closed-loop power stabilization.

At 25℃ and 10 mW rated output power, the device delivers a center wavelength of 790 nm with an operating range of 780–800 nm, a threshold current of 14–18 mA, an operating current of 25–30 mA, and an operating voltage of 1.9–2.1 V. Its slope efficiency reaches 0.8–1 W/A, with a far-field divergence of 38° (fast axis) × 9° (slow axis) FWHM. It supports an operating temperature range of -40℃ to 85℃ and a storage temperature range of -40℃ to 90℃, making it suitable for harsh environmental conditions.

This 790nm TO-packaged laser diode is perfectly suited for particulate matter detection, laser pointing, optical sensors, laser printing, and LiDAR applications.

Tailored Solutions & Technical Support

Beyond our standard product catalog, HAUCORE provides custom engineering services including special wavelength designs, multi-wavelength integration, and alternative packaging configurations to meet unique application requirements. Our experienced technical team supports customers from initial specification definition to volume production.

For detailed datasheets, custom solution inquiries, or bulk purchasing quotes, please reach out to the photonicssource team. HAUCORE is committed to delivering high-quality, cost-effective semiconductor laser solutions to power your next photonic system.
