980 Pump light source Pump Laser Source Module
The Module are designed for Erbium doped fiber amplifier applification.Processes and techniques of coupling the fiber to the laser allow high output powers that are very stable with both time and temperature.The grating is located in the pigtail to stabilized the wavelength. The Pump Laser Source are designed for Erbium doped fiber amplifier(EDFA) applification. Processes and techniques of coupling the fiber to the laser allow high output powers that are very stable with both time and temperature. The grating is located in the pigtail to stabilized the wavelength.
Save to Favorites
Overview

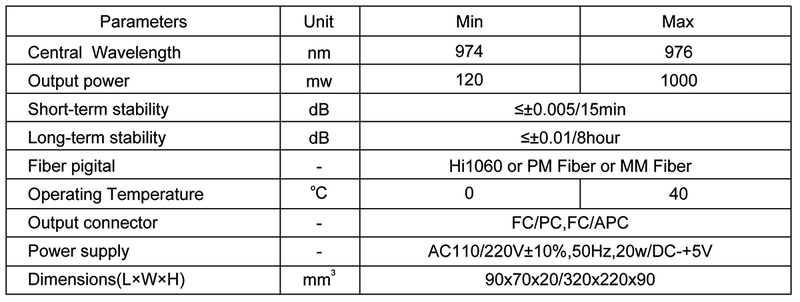

Specifications
| Parameter | Value |
|---|---|
| 中心波长 [采用实际表格范围；不以Title中的标称980替代] | min:974 nm；max:976 nm |
| 输出功率 | min:120 mw；max:1000 mw |
| 短期稳定性 [15min] | ≤±0.005 |
| 长期稳定性 [8小时] | ≤±0.01 |
| 光纤尾纤 | Hi1060 or PM Fiber or MM Fiber |
| 工作温度 | min:0 °C；max:40 °C |
| 输出连接器 | FC/PC,FC/APC |
| 电源 [保留原文DC-+5V写法；极性含义尚未Confirm；备选项未分配给封装形式] | AC110/220V±10%,50Hz,20w/DC-+5V |
| 外形尺寸(L×W×H) [源文未给出尺寸与功率备选项的对应关系] | 90x70x20/320x220x90 |
