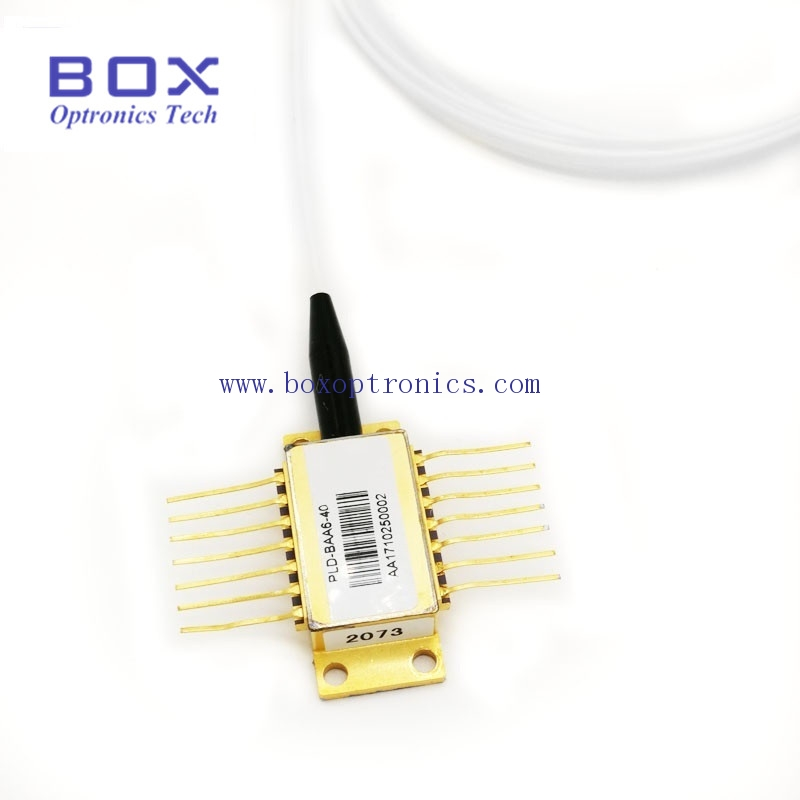

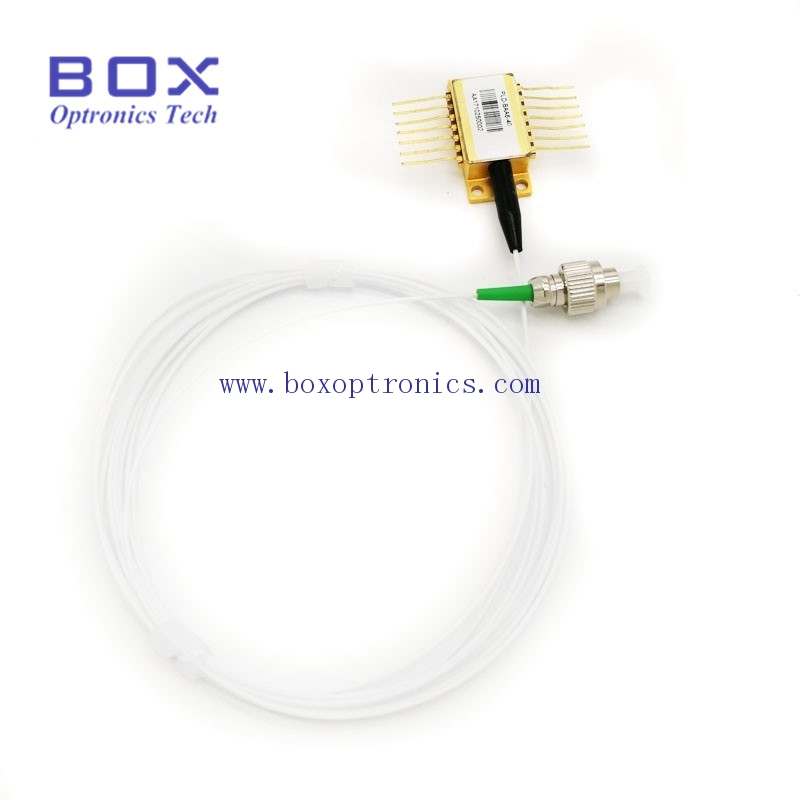

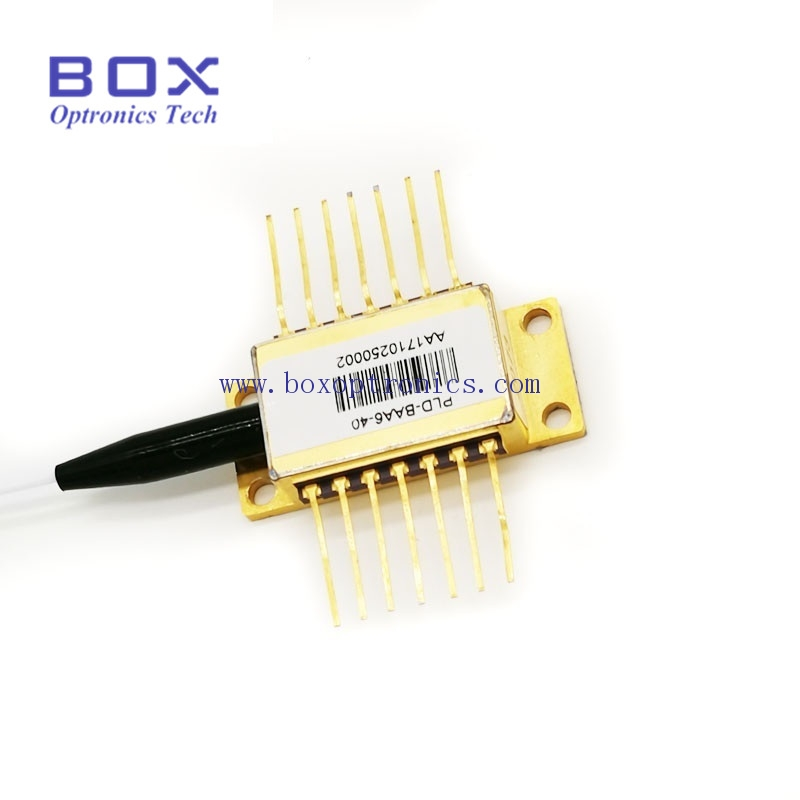

100mW 980nm Pump butterfly laser module
The pump laser module uses a fiber Bragg grating to stabilize and lock the emission wavelength, providing a noise-free narrowband spectrum even when temperature, drive current and optical feedback change.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| LD阈值电流 Iₜₕ [CW] | max:35 mA |
| 光输出功率 P_f [I_F = Iₒₚ] | max:100 mW |
| LD正向电流 I_f [P_f=Related Categories功率] | max:500 mA |
| LD正向电压 V_f [P_f=Related Categories功率] | max:2.5 V |
| 中心波长 λ_c [峰值,P_f=Related Categories功率] | min:973 nm；max:982 nm |
| 谱宽 △_λ [RMS@-13dB] | max:2 nm |
| 光纤弯曲半径 | min:16 nm |
| TEC电流 Iₜₑc [Tcₐₛₑ=75℃] | typical:0.55 A；max:1.5 A |
| TEC电压 Vₜₑc [Tcₐₛₑ=75℃] | typical:1.01 V；max:2.5 V |
| TEC模块功耗 P [Tcₐₛₑ=75℃] | typical:0.5 W |
