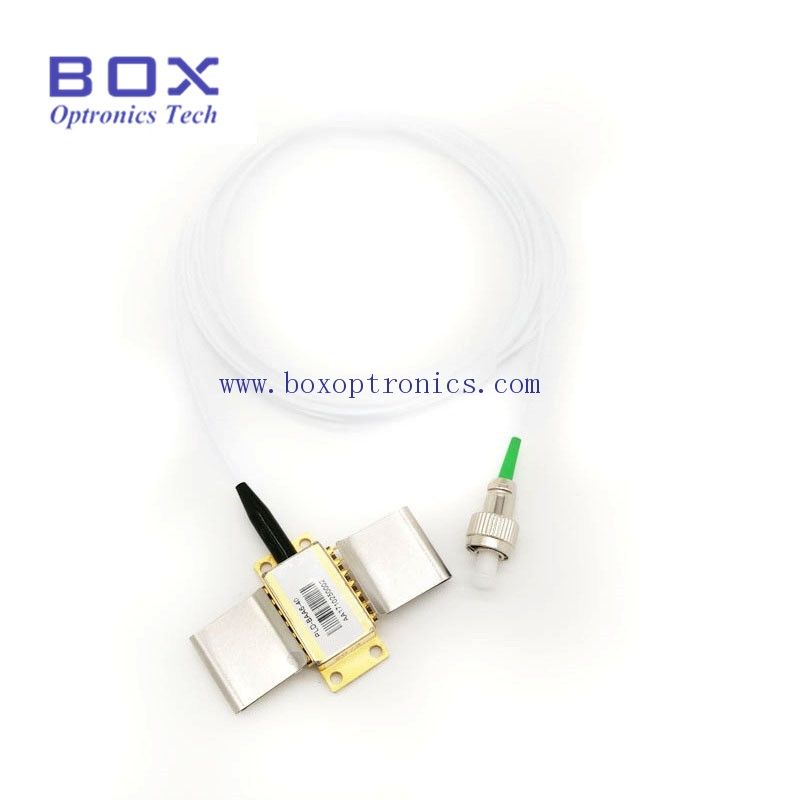

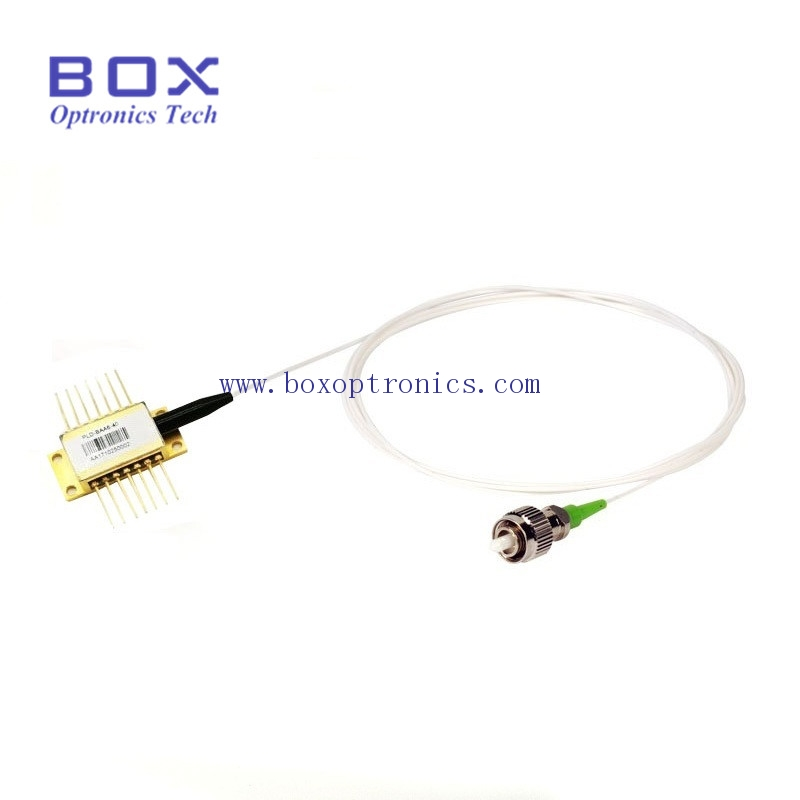

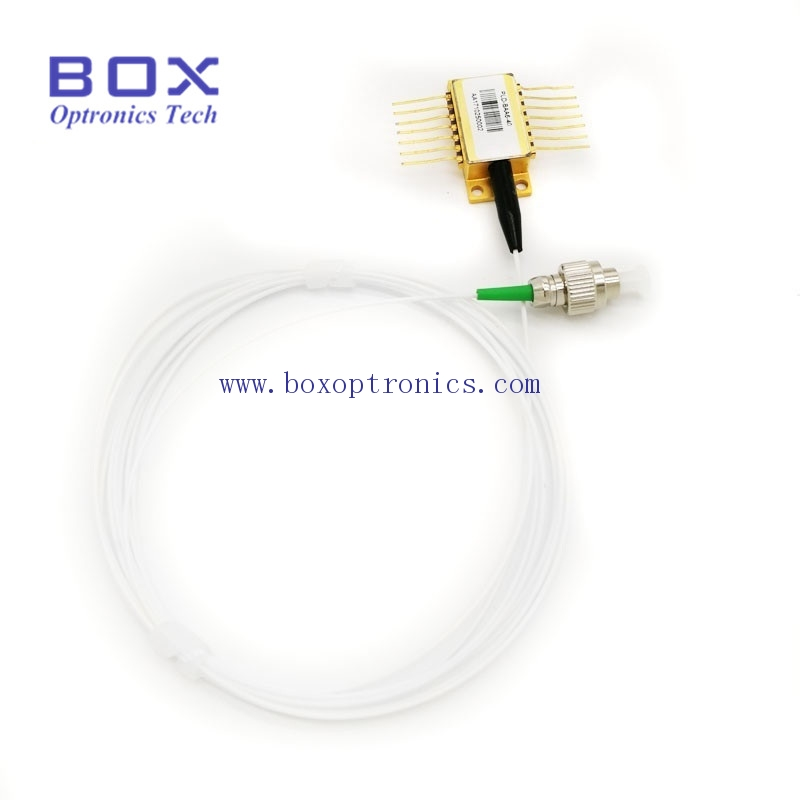

600mW 980nm Pump laser module with FBG
These lasers pump erbium-doped fiber amplifiers (EDFA). The fiber-coupling process provides high output power with excellent time and temperature stability while substantially reducing TEC and total power consumption. A fiber Bragg grating improves wavelength and power stability and maintains wavelength locking despite drive-current, temperature and optical-feedback changes. Output power reaches 600 milliwatts.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| LD阈值电流 Iₜₕ [CW] | typical:45 mA；max:80 mA |
| 光输出功率 P_f [If(BOL)<900mA] | max:600 mW |
| LD正向电流 I_f [P_f=Related Categories功率] | max:1200 mA |
| LD正向电压 V_f [P_f=Related Categories功率] | max:2.5 V |
| 中心波长 λ_c [峰值,P_f=Related Categories功率] | min:975 nm；typical:976 nm；max:977 nm |
| 谱宽 △_λ [RMS@-13dB] | max:2 nm |
| 光谱稳定性 [P_f=Related Categories功率,t=60s] | min:-0.5 nm；max:0.5 nm |
| TEC电流 Iₜₑc [Tcₐₛₑ=75℃] | max:2 A |
| TEC电压 Vₜₑc [Tcₐₛₑ=75℃] | max:3.5 V |
| TEC模块功耗 P [Tcₐₛₑ=75℃] | max:5 W |
