PD58 Amplified Photodetector

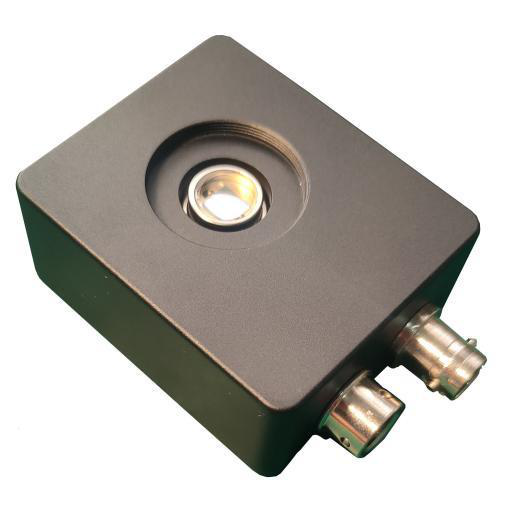

PD58 is an amplified photodetector designed for free-space optical systems. It includes components such as photodiodes, amplifiers, frequency connectors, and is housed in a signal-shielded enclosure. The output terminal uses a BNC connector, and the product supports parameter customization.
Save to Favorites
Overview

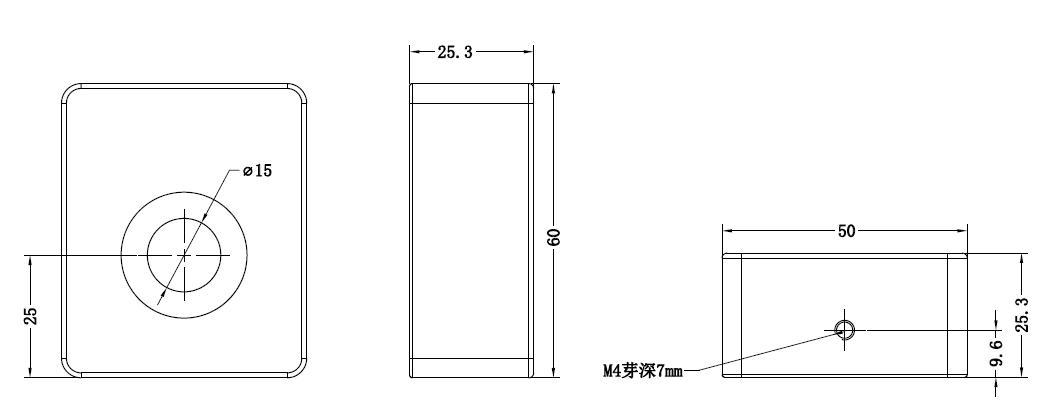

Specifications

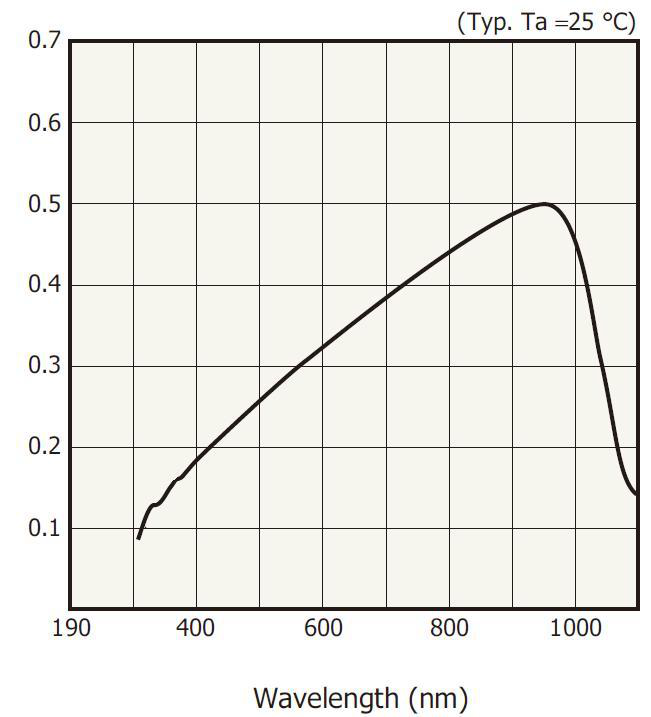

| Parameter | Value |
|---|---|
| Operating Voltage (V) | ±12 |
| Operating Current (mA) | <200 |
| Output Impedance (Ω) | 50 |
| Output Coupling Mode | DC |
| Output Connector | BNC Female |
| Operating Temperature (°C) | -20~+65 |
| Storage Temperature (°C) | -40~+85 |
| Model PD58A-10M:Material | Si |
| Model PD58A-10M:Wavelength Range (nm) | 320~1000 |
| Model PD58A-10M:Input Interface | Free space (SM1 internal thread) |
| Model PD58A-10M:Photosensitive Area Size (mm) | 5.8×5.8 |
| Model PD58A-10M:Peak Response Wavelength (nm) | 589 |
| Model PD58A-10M:Bandwidth (Hz) | DC~10MHz |
| Model PD58A-10M:Rise Time (ns) | 35 |
| Model PD58A-10M:Cross-talk Gain (kV/A) | 2 |
| Model PD58A-10M:Saturation Optical Power (mW) | 4 |
| Model PD58A-10M:Output Noise Voltage (mV) | ±2 |
| Model PD58A-10M:Equivalent Noise Power (pW/√Hz) | 22.5 |
| Model PD58A-10M:Maximum Output Voltage (V) | 4 |
| Model PD58A-100k:Material | Si |
| Model PD58A-100k:Wavelength Range (nm) | 320~1000 |
| Model PD58A-100k:Input Interface | Free space (SM1 internal thread) |
| Model PD58A-100k:Photosensitive Area Size (mm) | 5.8×5.8 |
| Model PD58A-100k:Peak Response Wavelength (nm) | 589 |
| Model PD58A-100k:Bandwidth (Hz) | DC~100kHz |
| Model PD58A-100k:Rise Time (ns) | 3.5 |
| Model PD58A-100k:Cross-talk Gain (kV/A) | 1 |
| Model PD58A-100k:Saturation Optical Power (μW) | 6.2 |
| Model PD58A-100k:Output Noise Voltage (mV) | -1.4 |
| Model PD58A-100k:Equivalent Noise Power (pW/√Hz) | 6.6 |
| Model PD58A-100k:Maximum Output Voltage (V) | 4 |
