200MHz Photodetector Analog Photodetector Module
The 200MHz Analog Photodetector Module is designed to provide directical-to-electrical conversion of RF-modulated optical signals. The optical input is supplied through an angle-polished, low-reflection, single-mode 9/125μm fiber pigtail.The detector element itself is a GaInAs PIN photodiode which is designed to operate in both 1300 and 1550nm wavelength regions.
Save to Favorites
Overview

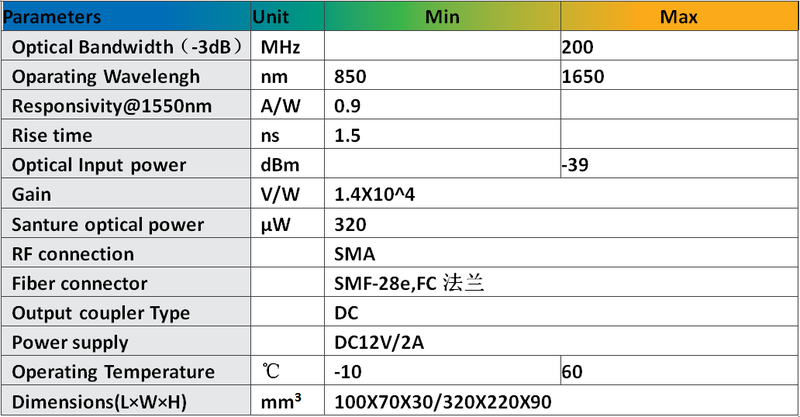

Specifications
| Parameter | Value |
|---|---|
| 光学带宽 (-3dB) | max:200 MHz |
| 工作波长 | min:850 nm；max:1650 nm |
| 响应度@1550nm | min:0.9 A/W |
| 上升时间 | min:1.5 ns |
| 光输入功率 | max:-39 dBm |
| 增益 | 1.4X10^4 V/W |
| 饱 and 光功率 | 320 µW |
| RF连接 | SMA |
| 光纤连接器 | SMF-28e, FC flange |
| 输出耦合器类型 | DC |
| 电源 | DC12V/2A |
| 工作温度 | min:-10 °C；max:60 °C |
| 外形尺寸(L×W×H) | 100X70X30/320X220X90 |
Applications
Key Features
Datasheet
