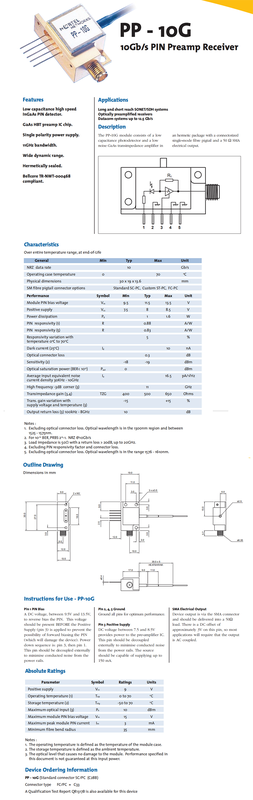

10G Photodetector PP-10G Nortel（BOOKHAM/Oclaro）
The photodetector with fiber tail fiber input,the maximum rate of up to 11Gbps,built-in trans impedance amplifier,can be used for digital optical fiber communication,RF SMA mother port;Nortel detector business was acquired by Bookham,then changed to Oclaro,so there are 3 brand labels,but the model is unchanged. The PP-10G module consists of a low capacitance photo-detector and a low noise GaAs trans-impedance amplifier in an hermetic package with a connectorized single-mode fiber pigtail and a 50 ohms SMA electrical output.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| NRZ 数据速率 [寿命终期，在整 complete plans温度范围内] | typical:10 Gb/s |
| 工作壳温 [寿命终期，在整 complete plans温度范围内] | min:0 °C；max:70 °C |
| 外形尺寸 [寿命终期，在整 complete plans温度范围内] | 30 mm × 19 mm × 13.6 mm |
| SM光纤尾纤连接器选项 [寿命终期，在整 complete plans温度范围内] | Standard SC-PC, Custom ST-PC, FC-PC |
| 模块 PIN 偏置电压 V_m [寿命终期，在整 complete plans温度范围内] | min:9.5 V；typical:11.5 V；max:13.5 V |
| 正电源 V_cc [寿命终期，在整 complete plans温度范围内] | min:7.5 V；typical:8 V；max:8.5 V |
| 功耗 P_d [寿命终期，在整 complete plans温度范围内] | typical:1 W；max:1.6 W |
| PIN 响应度 R [在整 complete plans温度范围内、寿命终点时 / 不包括光连接器损耗。光波长位于1300nm区域及1525-1575nm之间。] | typical:0.88 A/W |
| PIN 响应度 R [在整 complete plans温度范围内、寿命终点时 / 不包括光连接器损耗。光波长范围为1576-1610nm。] | typical:0.83 A/W |
| 响应度随温度的变化 [在整 complete plans温度范围内、寿命终点时 / 0°C至70°C] | typical:5 % |
| 暗电流 I_d [寿命终期，在整 complete plans温度范围内 / 25°C] | max:10 nA |
| 光连接器损耗 [寿命终期，在整 complete plans温度范围内] | typical:0.3 dB |
| 灵敏度 [在整 complete plans温度范围内、寿命终点时 / 条 Items为BER10⁻¹⁰、PRBS2²³-1、NRZ@10Gb/s。] | min:-18 dBm；typical:-19 dBm |
| 平均输入等效噪声电流密度 I_e [寿命终期，在整 complete plans温度范围内 / 30KHz-10GHz] | max:16.5 pA/√Hz |
| 高频-3dB拐点 [在整 complete plans温度范围内、寿命终点时 / 负载阻抗为50Ω；至20GHz时，回波损耗>20dB。] | typical:11 GHz |
| 跨阻增益 TZG [在整 complete plans温度范围内、寿命终点时 / 负载阻抗为50Ω；至20GHz时，回波损耗>20dB。 / 不包括PIN响应度因子 and 连接器损耗。] | min:400 Ohms；typical:500 Ohms；max:650 Ohms |
| 跨阻增益随供电电压 and 温度的变化 [在整 complete plans温度范围内、寿命终点时 / 负载阻抗为50Ω；至20GHz时，回波损耗>20dB。] | min:-15 %；max:+15 % |
| 输出回波损耗 [在整 complete plans温度范围内、寿命终点时 / 100kHz-8GHz / 负载阻抗为50Ω；至20GHz时，回波损耗>20dB。] | min:10 dB |
| 正电源 V_cc [极限额定值 / 额定值列] | 9 V |
| 工作温度 T_op [绝对额定值 / 额定值列 / 模块壳体温度。] | 0 to70 °C |
| 储存温度 T_stg [极限额定值 / 额定值列 / 环境温度.] | -50 to70 °C |
| 最大光输入 P_o [绝对额定值 / 额定值列 / 不会造成损坏的光功率水平；在该输入功率下不保证规定的性能。] | 10 dBm |
| 最大模块PIN偏置电压 V_m [极限额定值 / 额定值列] | 15 V |
| 最大模块PIN峰值电流 I_m [极限额定值 / 额定值列] | 3 mA |
| 最小光纤弯曲半径 [极限额定值 / 额定值列] | 35 mm |
