40G Balanced Photodetector Receiver

NRZ 数据速率 [寿命终期，在整 complete plans温度范围内]: typical:10 Gb/s 工作壳温 [寿命终期，在整 complete plans温度范围内]: min:0 °C；max:70 °C 外形尺寸 [寿命终期，在整 complete plans温度范围内]: 30 mm × 19 mm × 13.6 mm

The photodetector with fiber tail fiber input,the maximum rate of up to 11Gbps,built-in trans impedance amplifier,can be used for digital optical fiber communication,RF SMA mother port;Nortel detector business was acquired by Bookham,then changed to Oclaro,so there are 3 brand labels,but the model is unchanged. The PP-10G module consists of a low capacitance photo-detector and a low noise GaAs trans-impedance amplifier in an hermetic package with a connectorized single-mode fiber pigtail and a 50 ohms SMA electrical output.

光学带宽 (-3dB): max:200 MHz 工作波长: min:850 nm；max:1650 nm 响应度@1550nm: min:0.9 A/W

The 200MHz Analog Photodetector Module is designed to provide directical-to-electrical conversion of RF-modulated optical signals. The optical input is supplied through an angle-polished, low-reflection, single-mode 9/125μm fiber pigtail.The detector element itself is a GaInAs PIN photodiode which is designed to operate in both 1300 and 1550nm wavelength regions.

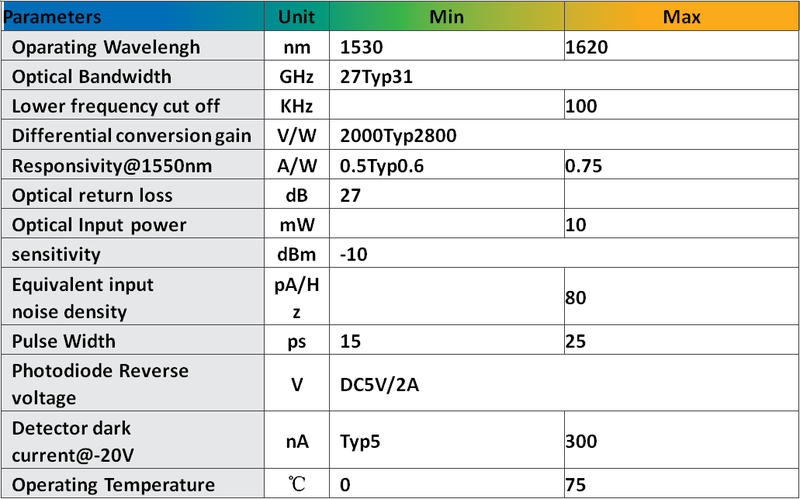

中心波长: min:1530 nm；max:1620 nm 数据速率: max:43 Gbit/s DC 响应度: min:0.5 A/W；max:0.75 A/W

The balanced photoreciver is a differential front-end for 43Gbit/s DPSK-applications featuring high differential gain of typically and is available as AC-or DC-coupled version. The photoreceiver contains two waveguide-integrated pin-photodiodes on a single chip.OEM model is well available on customer’s special request.

The semiconductor photomultiplier detector module uses Geiger-mode semiconductor photomultipliers to detect single photons and perform room-temperature photon-number resolution and counting. Components include a multipixel photon counter, high-speed amplification, high-voltage circuitry and signal readout. The counter provides excellent room-temperature number resolution, a broad photon-flux dynamic range and nanosecond response. Applications include fluorescence, nuclear-radiation detection, astronomy, biomedicine, laser ranging and quantum information, particularly short-pulse weak-light detection and photon-number resolution.
