High-Precision Wavelength Meter AQ615X Series (AQ6150B)

Optical Wavelength Range: Min. 1520 nm; Max. 1625 nm Optical Frequency Modulation Repetition Rate: Max. 370 kHz Optical Frequency Deviation [Repetition Rate: 10 kHz]: Max. 560 GHzpp

The A0070A Optical Frequency Analyzer is a revolutionary system for evaluating FMCW LiDAR lasers, capable of observing optical frequency modulation waveforms in real time just like an oscilloscope. By using a unique method, it extracts only the optical frequency modulation component without being affected by optical intensity modulation. No adjustment is required before measurement; the waveform is displayed immediately after laser input. High linearity ensures accurate measurement over a wide optical frequency deviation.;The A0070A accelerates the development and manufacturing of FMCW LiDAR.

Wavelength Range: 1250~1650 nm(182~240 THz) Wavelength Accuracy [1550nm；1550nm)]: ±0.33 ppm(±0.5 pm@1550 nm) Wavelength Repeatability [1550nm；1550nm)]: ±0.07 ppm(+0.1 pm@1550 nm)

As the demand for communication data continues to grow, larger-capacity optical communication transmission systems are required, which drives optical component and network equipment manufacturers to use coherent communication modules based on wavelength-tunable lasers in transmission backbone networks. Currently, the scope of use of wavelength-tunable lasers and coherent modules will further extend down to metropolitan area networks and even access networks. A very important test for tunable lasers is precise measurement and wavelength calibration. As communication channels continue to increase, from the initial 40 channels to the current maximum of 800 channels, fast and accurate wavelength testing is more critical than ever.

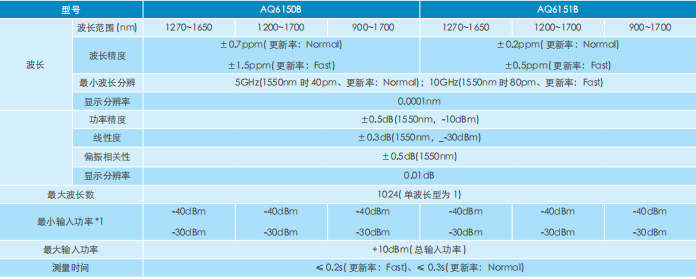

Wavelength-Wavelength Range: 1270~1650 nm;1200~1700 nm;900~1700 nm Wavelength-Wavelength Accuracy [Update Rate: Normal]: ±0.2 ppm Wavelength-Wavelength Accuracy [Update Rate: Fast]: ±0.5 ppm
