Optical Frequency Analyzer (A0070A)
The A0070A Optical Frequency Analyzer is a revolutionary system for evaluating FMCW LiDAR lasers, capable of observing optical frequency modulation waveforms in real time just like an oscilloscope. By using a unique method, it extracts only the optical frequency modulation component without being affected by optical intensity modulation. No adjustment is required before measurement; the waveform is displayed immediately after laser input. High linearity ensures accurate measurement over a wide optical frequency deviation.;The A0070A accelerates the development and manufacturing of FMCW LiDAR.
Save to Favorites
Overview

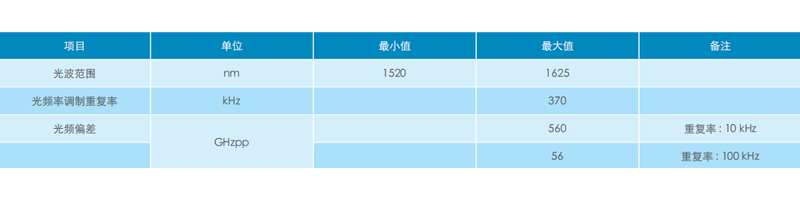

Specifications
| Parameter | Value |
|---|---|
| Optical Wavelength Range | Min. 1520 nm; Max. 1625 nm |
| Optical Frequency Modulation Repetition Rate | Max. 370 kHz |
| Optical Frequency Deviation [Repetition Rate: 10 kHz] | Max. 560 GHzpp |
| Optical Frequency Deviation [Repetition Rate: 100 kHz] | Max. 56 GHzpp |
Key Features
