High-precision wavelength meter AQ615X series (AQ6151B)
Save to Favorites

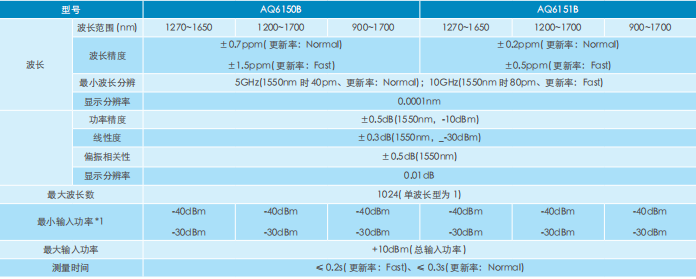

Specifications
| Parameter | Value |
|---|---|
| Wavelength-Wavelength Range | 1270~1650 nm;1200~1700 nm;900~1700 nm |
| Wavelength-Wavelength Accuracy [Update Rate: Normal] | ±0.2 ppm |
| Wavelength-Wavelength Accuracy [Update Rate: Fast] | ±0.5 ppm |
| Wavelength-Minimum Wavelength Resolution [1550nm; Update Rate: Normal] | 5 GHz (40 pm at 1550 nm, Update Rate: Normal) |
| Wavelength-Minimum Wavelength Resolution [1550nm; Update Rate: Fast] | 10 GHz (80 pm at 1550 nm, Update Rate: Fast) |
| Wavelength-Display Resolution | 0.0001 nm |
| Power Accuracy [1550nm，-10dBm] | ±0.5 dB(1550 nm,-10 dBm) |
| Linearity [1550nm，-30dBm] | ±0.3 dB(1550 nm,-30 dBm) |
| Polarization Dependence [1550nm] | ±0.5 dB(1550 nm) |
| Display Resolution | 0.01 dB |
| Maximum Number of Wavelengths [1 for single-wavelength model] | 1024 (1 for single-wavelength model) |
| Minimum Input Power [1200~1600nm] | -40 dBm |
| Minimum Input Power [Other Bands] | -30 dBm |
| Maximum input power [Total input power] | +10 dBm (total input power) |
| Measurement time [Update Rate: Fast] | <0.2 s (Update rate: Fast) |
| Measurement time [Update Rate: Normal] | <0.3 s (Update rate: Normal) |
