Visible Wavelength (RGB) Combiner
SICART's Visible Wavelength Combiners are singlemode optical fiber components and modules. They enable any two or three primarycolours in the visible wavelength region to becombined or separated.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelengths [Red] | 632, 640, 655 nm |
| Operating Wavelengths [Green] | 515, 520, 532 nm |
| Operating Wavelengths [Blue] | 450, 473, 488 nm |
| Max. Insertion Loss [IL is 1.5 dB higher for each connector added.] | 1.0 dB |
| Max. Optical Power | 100 mW |
| Max. Optical Power [only for connector added] | 50 mW |
| Fiber Type | Nufern 460-HP fiber |
| Housing box (L×W×H) | 100 mm × 80 mm × 10.5 mm |
| Operating / Storage Temperature | -40 to +85 °C |
Applications
Key Features

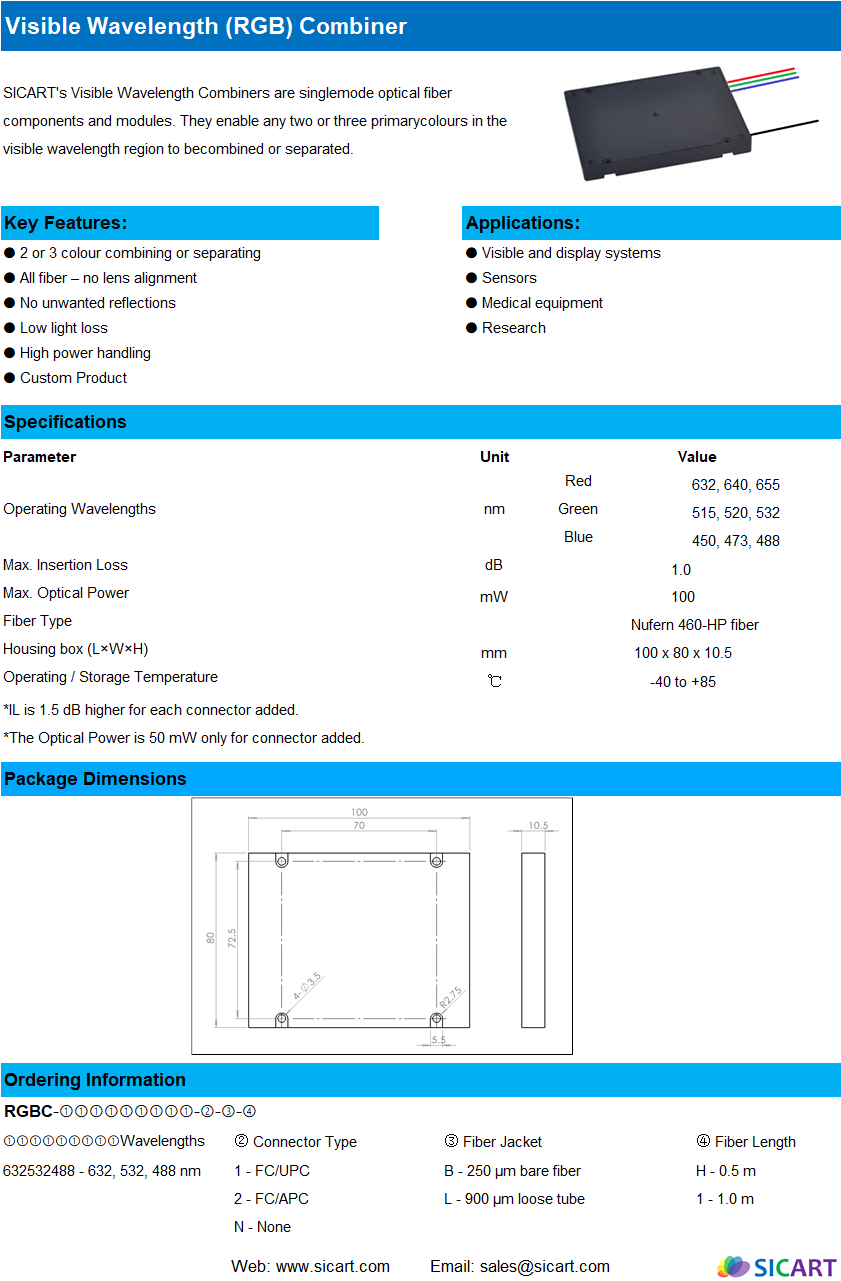

Datasheet
