Photonics Source provides 45 products. Download datasheets, request quotes, and compare function, price, and availability.
-
PLC Optical Splitter
Operating Wavelength (nm): 1260-1650 Fiber Type: 250μm Ribbon fiber Channel Configuration 1x2: 1x2 Insertion Loss (dB) 1x2: ≤4.0 Insertion Loss (dB) 1x4: ≤7.4 -

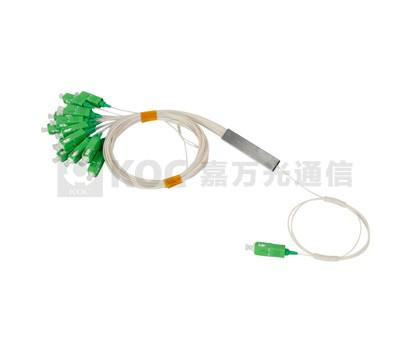

Planar Lightwave Circuit Splitter (PLCS)
Insertion Loss (dB) 1x2: ≤3.8 Insertion Loss (dB) 1x3: ≤6.1 Insertion Loss (dB) 1x4: ≤7.1 Insertion Loss (dB) 1x8: ≤9.0 Insertion Loss (dB) 1x12: ≤10.2 -

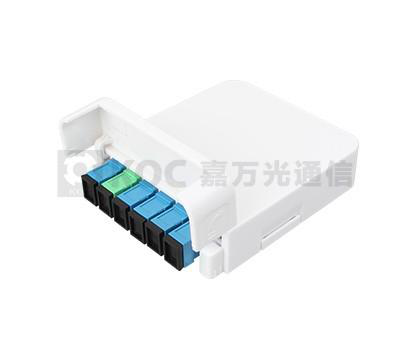

1x9 Un-equal Mini PLC
Operating Wavelength (nm): 1260~1650 Fiber Type: G657A or as customized Insertion Loss (dB) 1x3: 6 Insertion Loss (dB) 1x6: 9.4 Insertion Loss (dB) 1x9 (70%:3.75%): 2.2/16.3 -
1×3/1×4 FBT Coupler
Operating Wavelength (nm) 1×3 Dual-Window Coupler (DWC): 1310/1550 Operating Wavelength (nm) 3×3 Single Window Coupler (SWC): 1310/1550 Operating Wavelength (nm) 1×4 Dual-Window Coupler (DWC): 1310/1550 Operating Bandwidth (nm) 1×3 Dual-Window Coupler (DWC): 1310/1550±40 Operating Bandwidth (nm) 3×3 Single Window Coupler (SWC): 1310/1550±40 -

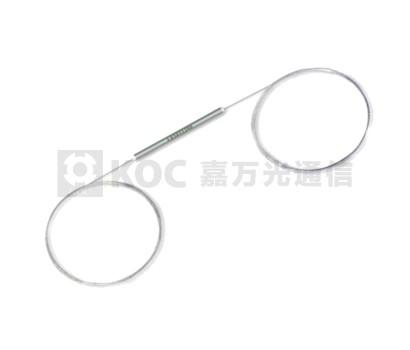

FBT Fiber Coupler
Port Configuration: 1x2 Operating Wavelength (nm): 1310/1550±15 Maximum Insertion Loss (dB) Premium: ≤0.3 Maximum Insertion Loss (dB) A Grade: ≤0.5 Isolation (dB) Premium: ＞17 -
Photodiodes
Spectral Response Range: 400nm-1100nm Operating Temperature Range: -40°C to +85°C Package Type: TO-can Response Time: <1ns Operating Voltage: 5V -
High Power Single Mode Tap Coupler
Grade: A Operating Wavelength (nm): 1550 Bandwidth (nm): ±10 Additional Loss (dB): ≤0.06 Polarization Dependent Loss (dB): ≤0.06 -
Single Mode Fiber Fused WDM 980nm Series
Operating Wavelength WDM-980/1550: 980&1550 Operating Wavelength WDM-980/1590: 980&1590 Operating Wavelength WDM-980/1060: 980&1060 Bandwidth WDM-980/1550: ±5@980nm ±25@1550nm Bandwidth WDM-980/1590: ±5@980nm ±25@1590nm -
Wavelength Division Multiplexer/Combiner Integrated Component
Signal Wavelength Range: 1030/1040/1064±5nm, 1550±20nm, 1950/2000/2050±20nm Pump Wavelength Range: 960~990nm, 960~990nm, 1530~1590nm Signal Insertion Loss: ≤1.0dB, ≤1.0dB, ≤1.8dB WDM Isolation: 25dB, 25dB, 30dB Pump Channel Isolation: 12dB, 12dB, 12dB -
Planar Lightwave Circuit Splitters
Insertion Loss (dB) 1x2: 3.4-4.0 Insertion Loss (dB) 1x3: 5.5-5.8 Insertion Loss (dB) 1x4: 6.7-7.0 Insertion Loss (dB) 1x6: 9.0-9.4 Insertion Loss (dB) 1x8: 10.2-10.5 -
Multimode Single Window/Dual Window Fiber Coupler
Central Wavelength (nm): 850, 1310, 1550, 850&1310, 850&1550, others on request Coupling Ratio (%): 10/90, 20/80, 30/70, 40/60, 50/50 Additional Loss (dB): ≤0.80 Maximum Insertion Loss (dB) 1x2: 11.3/1.3, 8.0/1.8, 6.2/2.4, 4.9/3.1, 3.9 Uniformity (dB): 0.6 -
Single Mode Dense Wavelength Division Multiplexer
Operating Wavelength (nm): ITU Grid Central Wavelength Accuracy (nm): ±0.05, ±0.1 Channel Spacing (GHz): 50, 100, 200 Bandwidth (nm): 0.2±1dB/-3dB: 0.22±0.5dB Transmission Wavelength Insertion Loss (dB): max. 0.8, 1.0 -
High Power Single Mode Single Window Broadband Splitter/Combiner
Operating Wavelength (nm): 980 or 1060 Bandwidth (nm): ±10 Additional Loss (dB): ≤0.06 Coupling Ratio (%) 50/50: 3.5/3.5 Coupling Ratio (%) 30/70: 7.7/1.3 -
PM DWDM ITU Grid
Operating Wavelength (nm): ITU Grid Central Wavelength Offset (nm): ±0.05, ±0.1 Channel Spacing (GHz): 50, 100, 200 Bandwidth Range (nm): 0.2-1dB: 0.28-3dB, 0.22±0.5dB, 0.5±0.5dB C→P Insertion Loss Max (dB): 0.8, 1.0, 0.9 -
Multi-core Fiber Combiner
One-dimensional Waveguide Array Spacing (μm): 85/127/250 Insertion Loss (dB): ≤2 Crosstalk (dB): <-35 Polarization Dependent Loss (dB): <0.5 Seven-core Fiber Core Spacing (μm): 41.5 -
Module Type Optical Splitter/Coupler
Structure 1x4/2x4: 1x4/2x4 Structure 1x6/2x6: 1x6/2x6 Structure 1x8/2x8: 1x8/2x8 Central Wavelength (nm): 780,808,830,850,905,930 Bandwidth (nm): ±15 -
Polarization Maintaining Wavelength Division Multiplexer (PM WDM)
Typical Wavelength: 488–2100nm Insertion Loss (dB) 1x2: ≤4.0 Insertion Loss (dB) 2x2: ≤7.4 Fiber Type: Nufern PM460-HP, Nufern PM630-HP, PM850, PM980, PM1310, PM1550, Nufern PM1950, Nufern PM1060L Fiber Length: 0.75m or customizable -
Polarization Maintaining Coupler
Center Wavelength (nm): 488, 532, 635, 780, 830, 980, 1064, 1310, 1480, 1550, 1700, 2000 Operating Wavelength Range (nm): ±5 to ±20 Typical Insertion Loss (dB): 0.8 to 2.0 Maximum Insertion Loss (dB): 1.2 to 2.5 Extinction Ratio (dB): 18 to 30 -
445–2100nm Single Mode Coupler
Center Wavelength (nm): 488,532,635,780,830,980,1064,1700,2000 Operating Wavelength (nm): ±5,±10,±20 Maximum Polarization Dependent Loss (dB): 0.2,0.2,0.2 Maximum Directivity (dB): 50 Maximum Insertion Loss of Single Mode Coupler (dB): 1.5,0.7,0.7 -
1×3(3×3) Polarization Maintaining Fiber Fused Coupler
Structure: 1×3/3×3 Operating Wavelength Range: 630,670,780,830,850,980,1030,1064,1310,1480,1550,1950,2000,2050± Splitting Ratio: 33/33/33 (only 3×3) Maximum Excess Loss: ≤1.0 Minimum Extinction Ratio: ≥16
