4 Channel LAN Light Source Channels LAN WDM
The 4 Channels LAN WDM DFB Light Source with 100GBase-LR4 standard central wavelength at 1295.56nm,1300.05nm,1304.58nm,1309.14nm etc. and Max 0.02nm tolerance,Output power is 2 to 15 mW per channel.OEM is available. The 4 Channels LAN WDM DFB Light Source with 100GBase-LR4 standard central wavelength@1295.56nm,1300.05nm, 1304.58nm,1309.14nm etc.and Max 0.02nm tolerance,Output power is 2 to 15 mW per channel.OEM is available.
Save to Favorites
Overview
Specifications

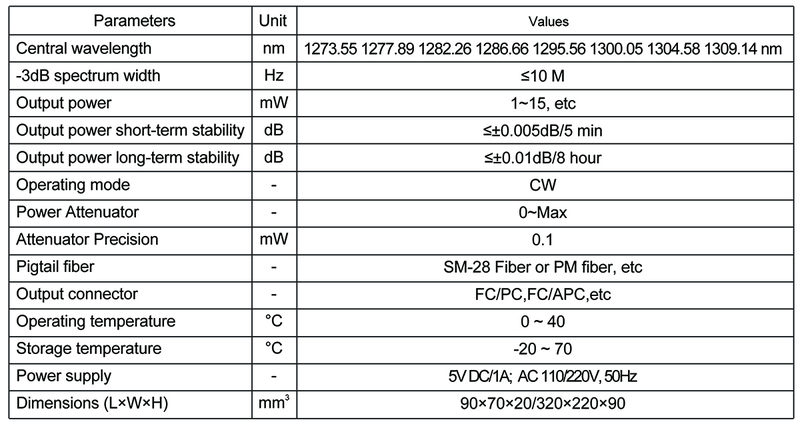

| Parameter | Value |
|---|---|
| 中心波长 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / Image中的附加选项；未说明其对当前四通道配置的归属] | 1273.55 nm |
| 中心波长 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / Image中的附加选项；未说明其对当前四通道配置的归属] | 1277.89 nm |
| 中心波长 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / Image中的附加选项；未说明其对当前四通道配置的归属] | 1282.26 nm |
| 中心波长 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / Image中的附加选项；未说明其对当前四通道配置的归属] | 1286.66 nm |
| 中心波长 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / 与当前HTML明确列出的四种波长之一相符；未分配通道编号] | 1295.56 nm |
| 中心波长 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / 与当前HTML明确列出的四种波长之一相符；未分配通道编号] | 1300.05 nm |
| 中心波长 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / 与当前HTML明确列出的四种波长之一相符；未分配通道编号] | 1304.58 nm |
| 中心波长 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / 与当前HTML明确列出的四种波长之一相符；未分配通道编号] | 1309.14 nm |
| -3dB 光谱宽度 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / 实际单位Hz加上明确数值≤10M；M前缀保留在MHz中] | ≤10 MHz |
| 输出功率 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / Image未说明逐通道对应关系；HTML写明2–15mW/channel，不强行统一] | 1~15,etc |
| 输出功率短期稳定性 [实际Link的Parameters图表；所列波长选项不表示8通道同时工作的配置 / 5min] | ≤±0.005 |
| 输出功率长期稳定性 [实际Link的Parameters图表；所列波长选项不表示8通道同时工作的配置 / 8小时] | ≤±0.01 |
| 工作模式 [实际Link的Parameters图表；所列波长选项不表示8通道同时工作的配置] | CW |
| 衰减器精度 [实际Link的Parameters图表；所列波长选项不表示8通道同时工作的配置] | 0.1 mW |
| 尾纤光纤 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / 备选项未分配给完整Model] | SM-28 Fiber or PM fiber,etc |
| 输出连接器 [实际Link的Parameters图表；所列波长选项不表示8通道同时工作的配置] | FC/PC,FC/APC,etc |
| 工作温度 [实际Link的Parameters图表；所列波长选项不表示8通道同时工作的配置] | 0~40 °C |
| 储存温度 [实际Link的Parameters图表；所列波长选项不表示8通道同时工作的配置] | -20~70 °C |
| 电源 [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / 备选项未分配给封装尺寸] | 5V DC/1A;AC110/220V,50Hz |
| 外形尺寸(L×W×H) [实际Link的Parameters图表；所列波长选项不能定义为8通道同时工作的配置 / 备选封装未分配给源文变型] | 90x70x20/320x220x90 |
