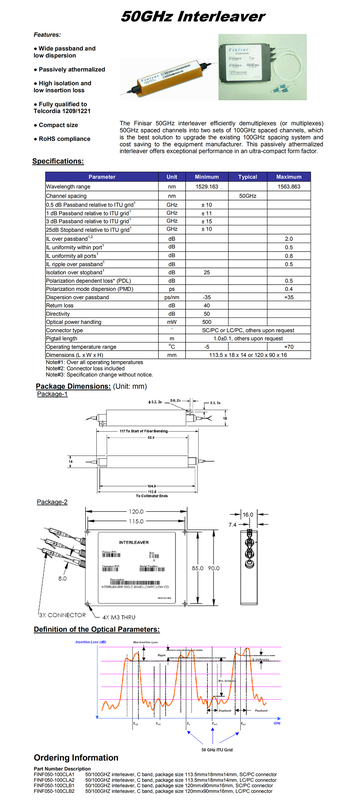

C-Band 50GHz Interleaver Finisar FINF050-100CLA FINF050-100CLB1
The Finisar 50G Interleaver efficiently demultiplexes (or multiplexes) 50G spaced channels into two sets of 100G spaced channels, which is the best solution to upgrade the existing 100G spacing system and cost saving to the equipment manufacturer. This passively athermalized interleaver offers exceptional performance in an ultra-compact form factor.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 波长范围 [料号 FINF050-100CLB1] | min:1529.163 nm；max:1563.863 nm |
| 信道间隔 [Products料号 FINF050-100CLB1 / 单位来自同一行明确标注的Typ50GHz，而非Error的nm单位单元格] | typical:50 GHz |
| 相对于ITU栅格的0.5dB通带 [料号 FINF050-100CLB1 / 在All工作温度下] | min:±10 GHz |
| 相对于ITU栅格的1dB通带 [料号 FINF050-100CLB1 / 在All工作温度下] | min:±11 GHz |
| 相对于ITU栅格的3dB通带 [料号 FINF050-100CLB1 / 在All工作温度下] | min:±15 GHz |
| 相对于ITU栅格的25dB阻带 [料号 FINF050-100CLB1 / 在All工作温度下] | min:±10 GHz |
| 通带内IL [Products料号 FINF050-100CLB1 / 在所有工作温度下 / 包括连接器损耗] | max:2.0 dB |
| 端口内IL均匀性 [料号 FINF050-100CLB1 / 在All工作温度下] | max:0.5 dB |
| All端口IL均匀性 [料号 FINF050-100CLB1 / 在All工作温度下] | max:0.8 dB |
| 通带内IL纹波 [料号 FINF050-100CLB1 / 在All工作温度下] | max:0.5 dB |
| 阻带内隔离度 [料号 FINF050-100CLB1 / 在All工作温度下] | min:25 dB |
| 偏振Related Categories损耗(PDL) [Products料号 FINF050-100CLB1 / 源文星号未定义；不编造测量条 Items] | max:0.5 dB |
| 偏振模色散(PMD) [料号 FINF050-100CLB1] | max:0.4 ps |
| 通带内色散 [料号 FINF050-100CLB1] | min:-35 ps/nm；max:+35 ps/nm |
| 回波损耗 [料号 FINF050-100CLB1] | min:40 dB |
| 方向性 [料号 FINF050-100CLB1] | min:50 dB |
| 光功率承受能力 [Products料号 FINF050-100CLB1 / 实际Minimum（Min）列；不将其转换为Max] | min:500 mW |
| 尾纤长度 [料号 FINF050-100CLB1] | 1.0±0.1,others upon request |
| 工作温度范围 [料号 FINF050-100CLB1] | min:-5 °C；max:+70 °C |
| 连接器类型 [FINF050-100CLB1的实际订货Information] | SC/PC |
| 外形尺寸(L×W×H) [FINF050-100CLB1的实际订货Information] | 120 mm × 90 mm × 16 mm |
