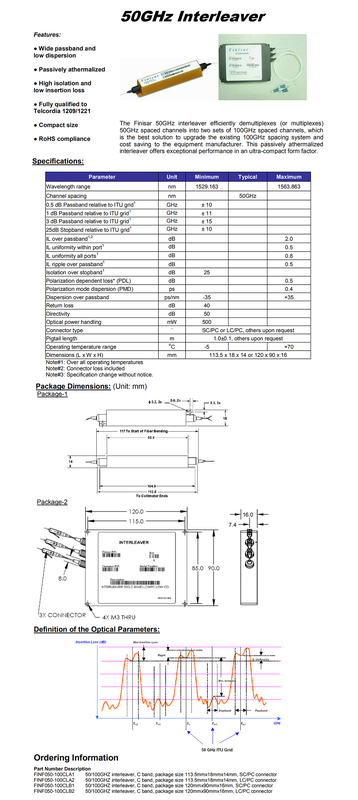

C-Band 50GHz Interleaver Finisar FINF050-100CLA FINF050-100CLA2
The Finisar 50G Interleaver efficiently demultiplexes (or multiplexes) 50G spaced channels into two sets of 100G spaced channels, which is the best solution to upgrade the existing 100G spacing system and cost saving to the equipment manufacturer. This passively athermalized interleaver offers exceptional performance in an ultra-compact form factor.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength range [Part Number FINF050-100CLA2] | min:1529.163 nm；max:1563.863 nm |
| Channel spacing [Part Number FINF050-100CLA2 / Unit comes from explicit Typ50GHz in this same row,not the erroneous nm unit cell] | typical:50 GHz |
| 0.5dB Passband relative to ITU grid [Part Number FINF050-100CLA2 / Over all operating temperatures] | min:±10 GHz |
| 1dB Passband relative to ITU grid [Part Number FINF050-100CLA2 / Over all operating temperatures] | min:±11 GHz |
| 3dB Passband relative to ITU grid [Part Number FINF050-100CLA2 / Over all operating temperatures] | min:±15 GHz |
| 25dB Stopband relative to ITU grid [Part Number FINF050-100CLA2 / Over all operating temperatures] | min:±10 GHz |
| IL over passband [Part Number FINF050-100CLA2 / Over all operating temperatures / Connector loss included] | max:2.0 dB |
| IL uniformity within port [Part Number FINF050-100CLA2 / Over all operating temperatures] | max:0.5 dB |
| IL uniformity all ports [Part Number FINF050-100CLA2 / Over all operating temperatures] | max:0.8 dB |
| IL ripple over passband [Part Number FINF050-100CLA2 / Over all operating temperatures] | max:0.5 dB |
| Isolation over stopband [Part Number FINF050-100CLA2 / Over all operating temperatures] | min:25 dB |
| Polarization dependent loss(PDL) [Part Number FINF050-100CLA2 / Source asterisk is undefined; no invented measurement condition] | max:0.5 dB |
| Polarization mode dispersion(PMD) [Part Number FINF050-100CLA2] | max:0.4 ps |
| Dispersion over passband [Part Number FINF050-100CLA2] | min:-35 ps/nm；max:+35 ps/nm |
| Return loss [Part Number FINF050-100CLA2] | min:40 dB |
| Directivity [Part Number FINF050-100CLA2] | min:50 dB |
| Optical power handling [Part Number FINF050-100CLA2 / Actual Minimum column;not converted into a maximum] | min:500 mW |
| Pigtail length [Part Number FINF050-100CLA2] | 1.0±0.1,others upon request |
| Operating temperature range [Part Number FINF050-100CLA2] | min:-5 °C；max:+70 °C |
| Connector type [Actual Ordering Information for FINF050-100CLA2] | LC/PC |
| Dimensions(L×W×H) [Actual Ordering Information for FINF050-100CLA2] | 113.5 mm × 18 mm × 14 mm |
