MLD25-100NV MLD25 Series Classic Laser Displacement Sensor
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | Triangulation |
| Detection method | Diffuse reflection |
| Housing Style | Square Type |
| Measurement range | 65~135 mm |
| Full scale (F.S.) | 70 mm |
| Reference distance [Center] | 100 mm |
| Light source | Red laser (655 nm, 1 mW, Class2) |
| Spot size | Ø80μm |
| Switching mode | Light.on (light-on operation) / Dark.on (dark-on operation) switchable |
| Output Mode | NPN open collector + analog (voltage/current configurable) |
| Communication Interface | RS485 |
| Response Time | 1.5 ms/5 ms/10 ms switchable |
| Linearity | ±0.1 % F.S. |
| Repeatability | 70 μm |
| Temperature Drift Characteristics | ±0.03 %/℃ F.S. |
| Operating voltage | 12~24 V DC ±10 % |
| Current Consumption | ≤40 mA/24 V,≤65 mA/12 V |
| Load Current | ≤100 mA |
| Insulation Resistance | ≥50 MΩ/500 V DC |
| Dielectric withstand voltage | 1000 V AC, 50/60 Hz, 1 minute |
| Protection circuit | Reverse polarity protection / short-circuit protection / surge protection / overload protection |
| Operating Temperature | -10 ℃~45 ℃ (no freezing) |
| Storage Temperature | -20 ℃~60 ℃ (non-freezing) |
| Working Humidity | 35 %~85 % RH (no condensation) |
| Storage humidity | 35 %~95 % RH (no condensation) |
| Ambient illuminance | Incandescent lamp ≤3000 Lux; sunlight ≤10000 Lux |
| Vibration Resistance | 10~55 Hz, Double Amplitude 1.5 mm, X/Y/Z directions each 2 hours |
| IP Rating | IP67 |

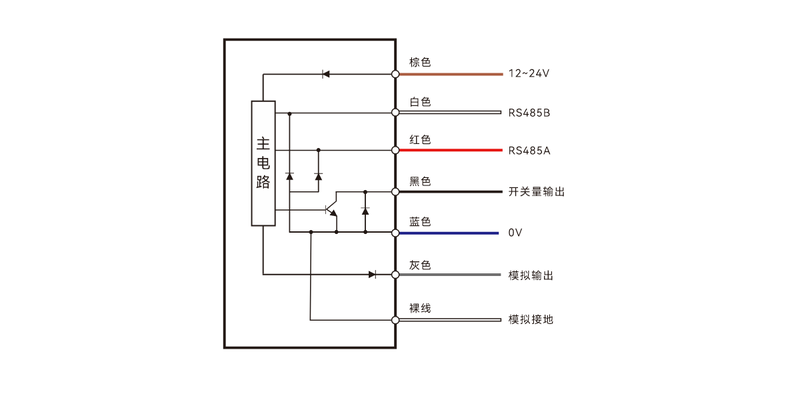

| Connection Method | 2 m/6-core 7-wire |

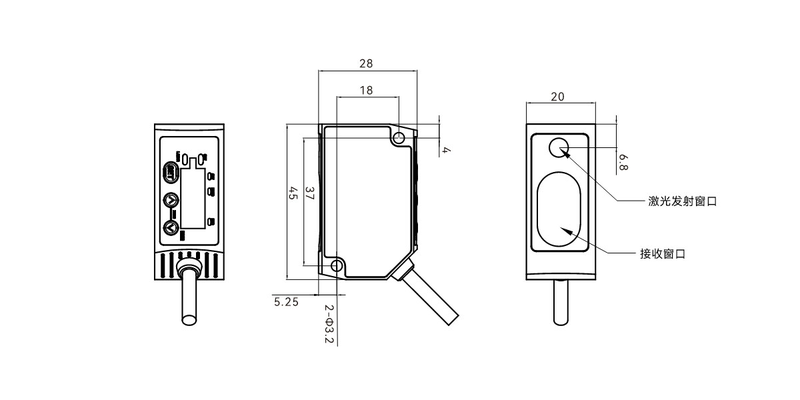

| Dimensions | 20.0 mm × 28.0 mm × 45.0 mm |
| Material | Die-cast aluminum |
| Weight | Approx. 90 g |
| Accessories | Connection cable |
