MRA-P02R01A MRA Series LVDT Contact Displacement Sensor
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | Differential Transformer |
| Drive Method | Spring-Return |
| Housing Style | Pen Type |
| Measurement range | 2 mm |
| Output Mode | Analog current: 4~20 mA |
| Sampling frequency | 10 Hz |
| Response Time | 100 ms |
| Repeatability | ±0.25 % F.S. |
| Operating voltage | 15~28 V DC |
| Current Consumption | <15 mA |
| Operating Temperature | -25 ℃~85 ℃ (no freezing) |
| Working Humidity | 10 %~80 % RH (non-condensing) |
| IP Rating | IP64 |

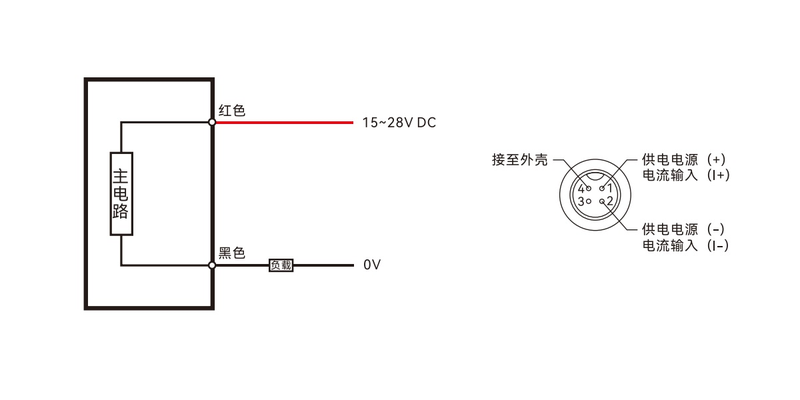

| Connection Method | Ø14/5-Pin Connector |

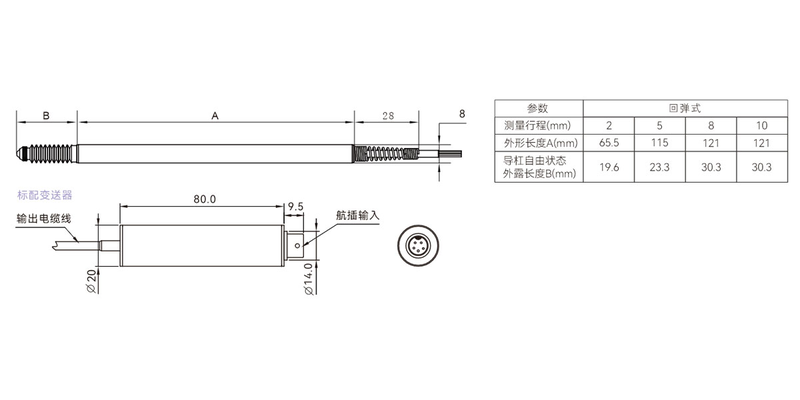

| Dimensions | Ø8 mm x85.1mm |
| Material | Stainless steel |
| Weight | Approx. 130 g |
| Accessories | Bracket |
Datasheet
