ADV-12CKS ACC Series Chromatic Confocal Sensor-Controller
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Housing Style | Square Type |
| Light source | White LED |
| Sampling frequency | ≤30 KHz |
| Output Mode | Analog Voltage: -10 V~10 V\0~10 V\0~5 V\-5 V~5 V; Analog Current: 4~20 mA\0~20 mA\0~24 mA |
| I/O Functions | Pulse Input/Output, Encoder Trigger Input; 8 Inputs, 8 Outputs (Functions Switchable via Software) |
| Communication Interface | RS232:≤115200 bps;Ethernet:100BASE-TX/10BASE-T |
| Number of Encoder Axes | 3-Axis Incremental (A/B/Z Phase) |
| Operating voltage | 24 V DC |
| Connectable Channels | 1 |
| Operating Temperature | -5 ℃~40 ℃ (no freezing) |
| Working Humidity | 35 %~80 % RH (non-condensing) |
| Ambient illuminance | Incandescent lamp ≤3000 Lux; sunlight ≤10000 Lux |
| IP Rating | IP20 |
| Inner Armored Fiber Cable | ACC-OF-S:23/40/69 g |
| Outer Armored Fiber Cable | ACC-OF-M:108/218/396 g |
| Fiber Cable Length | 10 m, 2/5 m Also Optional |
| Bending radius | 50 mm |

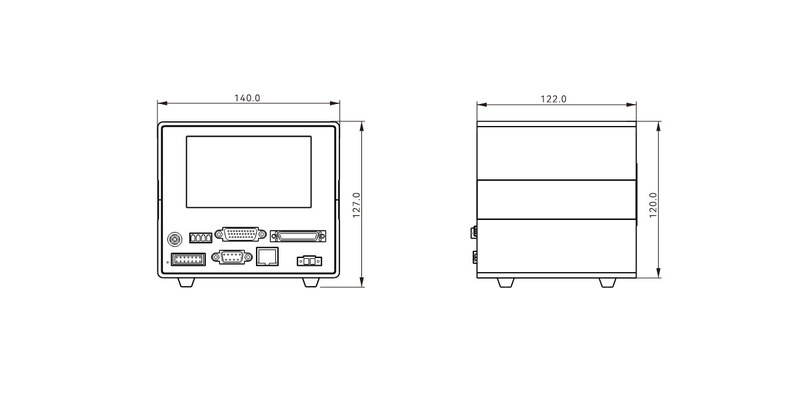

| Dimensions | 140 mm × 122 mm × 120 mm |
| Weight | Approx. 1300 g |
Datasheet
