ACC10 ACC10 Series Cost-Effective Chromatic Confocal Sensor-Controller
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Housing Style | Square Type |
| Light source | White LED |
| Sampling frequency | ≤450 Hz |
| Output Mode | Ethernet |
| I/O Functions | 2× General-Purpose Inputs, 4× General-Purpose Outputs |
| Communication Protocol | Ethernet |
| Communication Interface | RJ45 |
| Operating voltage | 24 V DC |
| Connectable Channels | 1 |
| Operating Temperature | 0~45 ℃ (no freezing) |
| Working Humidity | 20 %~80 % RH (no condensation) |
| Ambient illuminance | Incandescent lamp ≤3000 Lux; sunlight ≤10000 Lux |
| IP Rating | IP20 |
| Fiber Type | External Armor |
| Fiber Cable Length | 5 m |
| Bending radius | 50 mm |

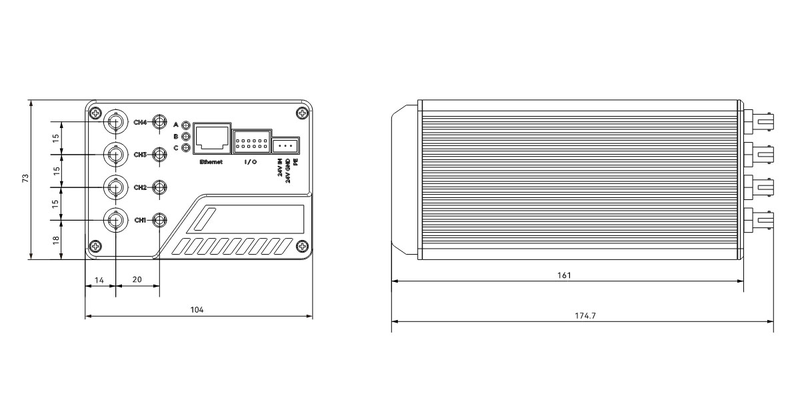

| Dimensions | 161 mm × 104 mm × 73 mm |
| Weight | Approx. 700 g |
