MLD23-100N MLD23 Series Classic Laser Displacement Sensor
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | Triangulation |
| Detection method | Diffuse reflection |
| Housing Style | Square Type |
| Measurement range | 65~135 mm |
| Full scale (F.S.) | 70 mm |
| Reference distance [Center] | 100 mm |
| Light source | Red laser (655 nm, 1 mW, Class2) |
| Spot size | Ø0.15μm |
| Switching mode | Light.on (light-on operation) / Dark.on (dark-on operation) switchable |

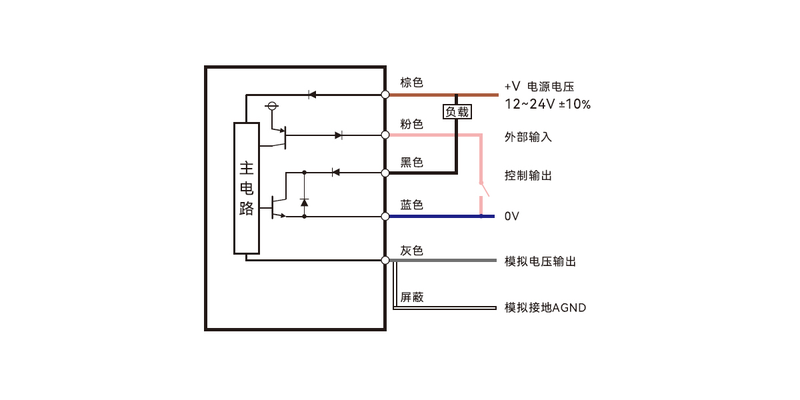

| Output Mode | NPN Open Collector |
| Response Time | 1.5 ms/5 ms/50 ms switchable |
| Linearity | ±0.1 % F.S. |
| Repeatability | 70 μm |
| Temperature Drift Characteristics | ±0.03 %/℃ F.S. |
| Operating voltage | 12~24 V DC ±10 % |
| Current Consumption | ≤60 mA/24 V,≤100 mA/12 V |
| Load Current | ≤50 mA |
| Insulation Resistance | ≥20 MΩ/500 V DC |
| Dielectric withstand voltage | 500 V AC, 50/60 Hz, 1 minute |
| Protection circuit | Surge protection |
| Operating Temperature | -10 ℃~45 ℃ (no freezing) |
| Storage Temperature | -20 ℃~60 ℃ (non-freezing) |
| Working Humidity | 35 %~85 % RH (no condensation) |
| Storage humidity | 35 %~95 % RH (no condensation) |
| Ambient illuminance | Incandescent lamp ≤3000 Lux; sunlight ≤10000 Lux |
| Vibration Resistance | 10~55 Hz, Double Amplitude 1.5 mm, X/Y/Z directions each 2 hours |
| IP Rating | IP66 |
| Connection Method | 2 m/9-core cable |

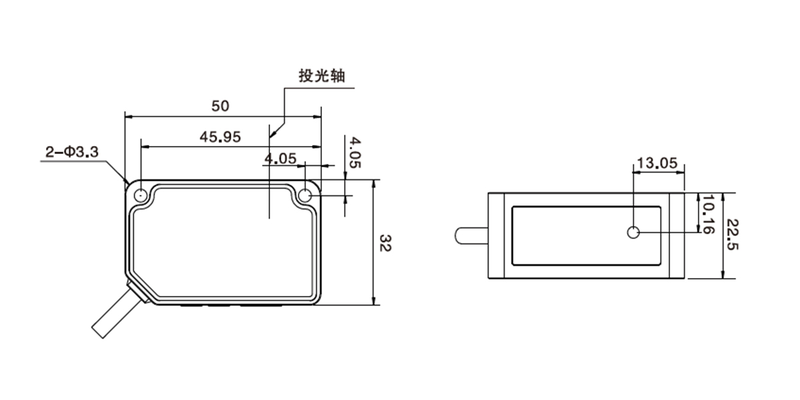

| Dimensions | 22.5 mm × 50.0 mm × 32.0 mm |
| Material | Aluminum alloy |
| Weight | approx. 65 g |
| Accessories | Connection cable |
Datasheet
