MRC-H12Q02S MRC Series CMOS Contact Displacement Sensor
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Working Principle | CMOS grating measurement |
| Drive Method | Pneumatic type |
| Housing Style | Cassette type |
| Measurement range | 0~12.7 mm |
| Communication Interface | RS232 |
| Sampling frequency | 25 Hz |
| Response Time | 50 ms |
| Repeatability | ≤2.0 μm |
| Operating voltage | 5 V DC |
| Current Consumption | <50 mA |
| Controller | CR-M01 |
| Operating Temperature | -10 ℃~50 ℃ (no freezing) |
| Working Humidity | 35 %~80 % RH (non-condensing) |
| IP Rating | IP65 |
| Measuring force | 2.4~3.4 N |
| Operating pressure range | 0.16~0.2 Mpa |

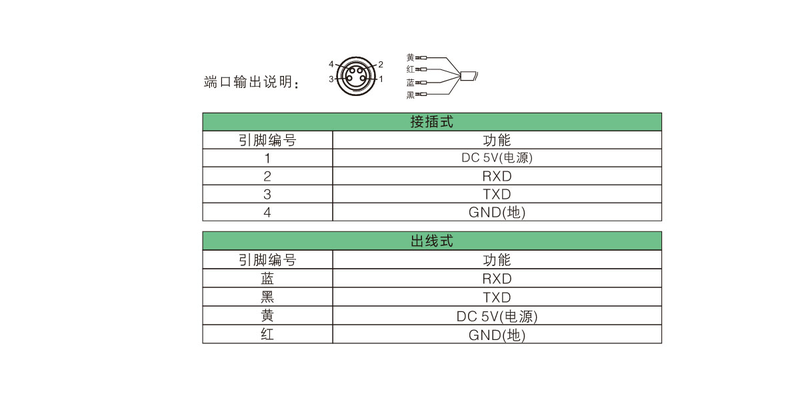

| Connection Method | M8/4-pin connector |
| Dimensions | 146.9 mm × 34.0 mm × 20.0 mm |
| Material | Body: aluminum alloy; dust boot: fluororubber; detection head: hard alloy |
| Weight | Approx. 91.5 g |
| Accessories | Connection cable (CA08FF-S4F2C) |
