CR-M01 MRC Series CMOS Contact Displacement Sensor-Controller
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Type | Main Control Module |
| Housing Style | Square Type |
| Display Range | -199.9999~199.9999 |
| Response Time | 50/100/500/1000 ms Configurable |
| Display Resolution | 0.2/0.5/1.0/5.0 μm |
| Operating voltage | 12~24 V DC |
| Power consumption | ≤240 mW (Without Sub-Control Module and Sensor Connected) |
| Control input | Timer, preset, repeat, channel input, no-voltage input |
| Output Mode | NPN Open Collector |
| Communication Protocol | Modbus RTU |
| Communication Interface | RS232/RS485 |
| Number of expandable sub-control modules | 4 complete plans |
| Number of connectable sensors | 20 complete plans |
| Operating Temperature | -10 ℃~60 ℃ (no freezing) |
| Working Humidity | 35 %~80 % RH (non-condensing) |

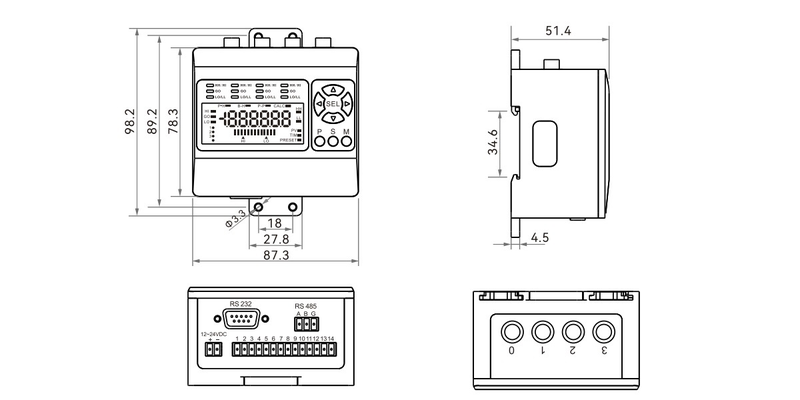

| Dimensions | 78.3 mm × 87.3 mm × 51.4 mm |
| Material | ABS+PMMA |
| Weight | Approx. 201.6 g |
| Accessories | Connection cable (CA08FF-S4F2C) |
Datasheet
