Modularized Test Platform OMTP Series
The Modularized Test Platform OMTP series is an extended programmable multi-sole generic optical test platform; it is an ideal solution for building an automated optical manufacturing test system. This series of products is divided into OMTP-08 and OMTP-12 models; of which OMTP-08 can be controlled by a 5-inch high-altitude touch screen or an upper machine; up to 8 slots can be provided to access submodules; OMTP-12 without a screen; up to 12 slots can be controlled by an upper machine; and up t
Save to Favorites
Overview
Specifications

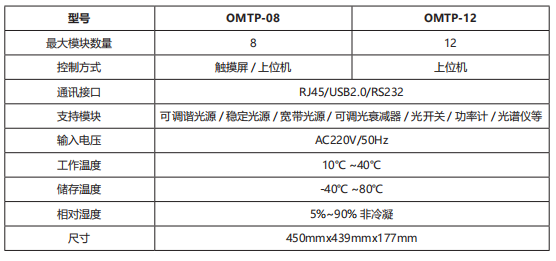

| Parameter | Value |
|---|---|
| Maximum number of modules | 8; 12 |
| Control Mode | Touch screen/top machine;top machine |
| Communications interface | RJ45/USB2.0/RS232 |
| Support module | Modifiable/Stable Light Source/broadband Light Source/Moreable Light Decompositioner/Ray Switch/Power/Spectrometer, etc |
| Enter voltage | AC220V/50Hz |

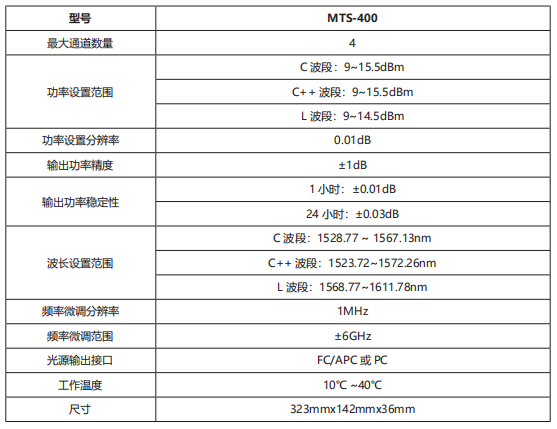

| Maximum number of channels | 4 |
| Power Settings Range | C-band: 9~15.5 dBm |
| Output power precision | ±1dB |
| Wavelength range | C-band: 1528.77 ~ 1567.13nm |
| Frequency fine-adjusted resolution | 1MHz |
| Frequency fine-tuning range | ±6GHz |

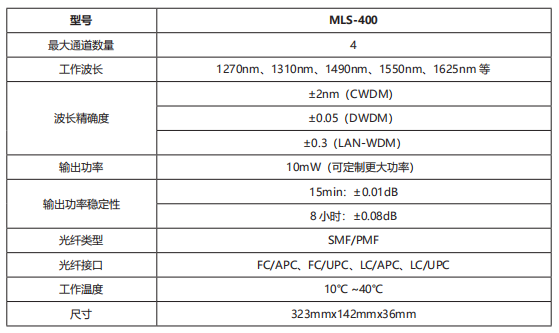

| Work wavelength | 1270 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, etc |
| Wavelength accuracy | ±2nm（CWDM） |
| Output power stability | 15min: ±0.01dB |
| Fibre type | SMF/PMF; Single-module fibre, FC/PC interface |
| Fibre interface | FC/APC、FC/UPC、LC/APC、LC/UPC |

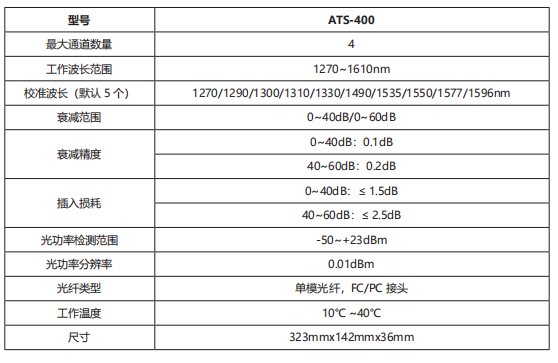

| Work wavelength range | 1270~1610nm |
| Calibration wavelength | 1270/1290/1300/1310/1330/1490/1535/1550/1577/1596nm |
| Decay range | 0~40dB/0~60dB |
| Decreasing precision | 0~40dB: 0.1dB |
| Insert Loss | 0~40dB: ≤1.5dB |
| Photopower detection range | -50~+23dBm |
| Photopower Resolution | 0.01dBm |
