Multichannel stabilization light source OMLS
A multi-channel light source that functions highly integrated; an option for each channel wavelength bearing within 650~2000nm; 18-wave CWDM wavepole that supports wavering, including light communication; 144-wave DWDM wavepole; 12-wave LANWDM wavepole and other types of regular radium; light source devices employing an ITU-T-marked butterfly semiconductor laser; high precision ATC and ACC (APC) control circuits; very high wavepole stability and power stability; with high-resolution touch scree
Save to Favorites
Overview

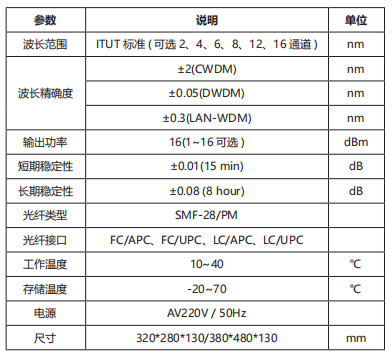

Specifications
| Parameter | Value |
|---|---|
| Wavelength range@CWDM | ‡2（CWDM）nm |
| Wavelength accuracy | ‡0.05（DWDM）nm |
| Wavelength accuracy@LAN-WDM | ‡0.3（LAN-WDM）nm |
| Power | 16 (1-16 options)dBm |
| Long-term stability | ‡0.08（8 hour）dB |
| Fibre type | SMF-28/PM |
| Fibre interface | FC/APC、FC/UPC、LC/APC.LC/UPC |
Applications
Datasheet
