Nufern with optics

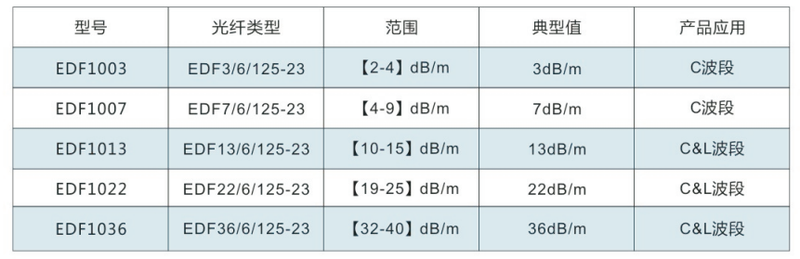

Provides a full range of platinum fibre-optic products; meets the most demanding optical amplifier design requirements; magnification covers the C and L bands. Applying 1480 nm or 980 nm pump technology; mixing fibers to achieve 35 nm magnification bandwidth; and remaining flat within bandwidth; ideal power conversion is available. Combination fibres are specially designed for fibre-optic amplifiers required by high performance, low noise indicators; e.g., light front amplifiers, light circuit a
Save to Favorites
Overview
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
