grating force-controlled CNC polishing system
This equipment uses an industrial-grade six-axis robotic arm as the motion execution unit, equipped with a high-response force-control polishing module and a digital process control system, forming an intelligent optical element processing platform. The robotic arm positioning accuracy reaches ±0.02mm, with repeat positioning accuracy better than ±0.01mm, combined with a 0.1N-class closed-loop force control system to ensure dynamic stability during processing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Machined Element Type | Plane/spherical/aspherical/off-axis aspherical/freeform surfaces; etc. |
| Machined Element Shape | Round/ellipse/rectangle/rounded rectangle/sector/polygon/racetrack/irregular hole shapes, etc. |
| Machined Element Aperture | ≤800mm (2000 custom workpiece plate) |
| Load Capacity | ≤100KG |
| Max. Component Thickness | ≤150mm |
| Machining Precision | PV better than 60nm, RMS better than 12nm |
| Machining Repeatability | PV better than 60nm@2σ |
| Polished Surface Roughness | Ra≤0.5nm |
| Surface Cleanliness | Better than Grade III |
| Robotic Arm Body | ABB IRB 6700 200 robotic arm |
| Workpiece Stage | Tabletop diameter 800mm, aluminum alloy, anodized surface |
| Precision Force-Controlled Polishing Head | Polishing force controlled by a voice coil motor |
| Polishing Slurry Circulation Monitoring System | Polishing slurry stirring; circulation; filtration; with liquid level; concentration; and temperature monitoring |
| Small Tool Polishing Module | Fine grinding plates and polishing plates, five each, diameter D20 mm-D60 mm |
| Bonnet Polishing Module | One each for radii R20mm-R40mm |
| Process Software | Includes process database; free permanent updates |
Applications
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
Large-aperture collimated stress birefringence inspection equipment
Optical Production Equipment
Zeit-group
Operating mode: High-precision Measurement Function: Stress Magnitude and Stress Distribution Detection Band: VIS-520nm,590nm,650nm

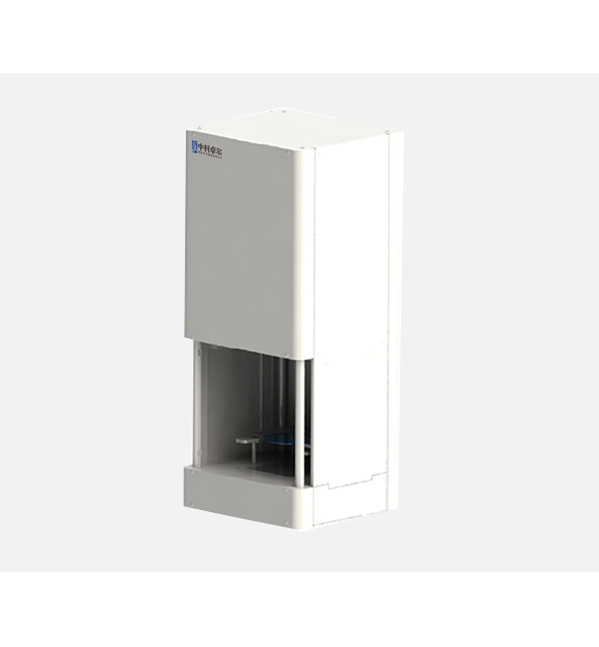

The large-aperture collimated stress-birefringence inspection system uses advanced polarization-birefringence technology for high-precision stress measurement in materials such as glass, crystals and plastics.
-
Handheld stress inspection equipment
Optical Production Equipment
Zeit-group
Operating mode: Real-time Measurement Function: Stress Magnitude and Stress Distribution Detection Band: 590nm

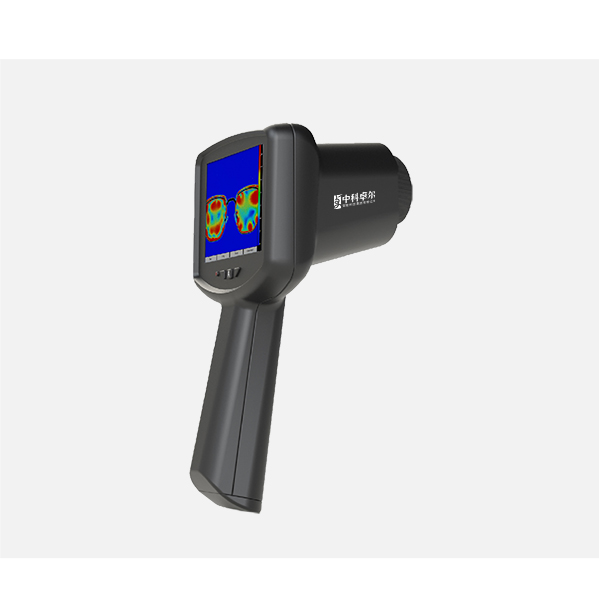

The portable imaging handheld stress meter primarily measures stress in large glass panels, including architectural glazing and windows for vehicles, high-speed trains and aerospace applications.
-
Spliced stress detector
Optical Production Equipment
Zeit-group
Operating Mode: Integrated PC Workstation and Inspection Table Maximum Sample Dimensions [H/W/D]: 200 mm × 200 mm × 50 mm Maximum Sample Weight: 15kg

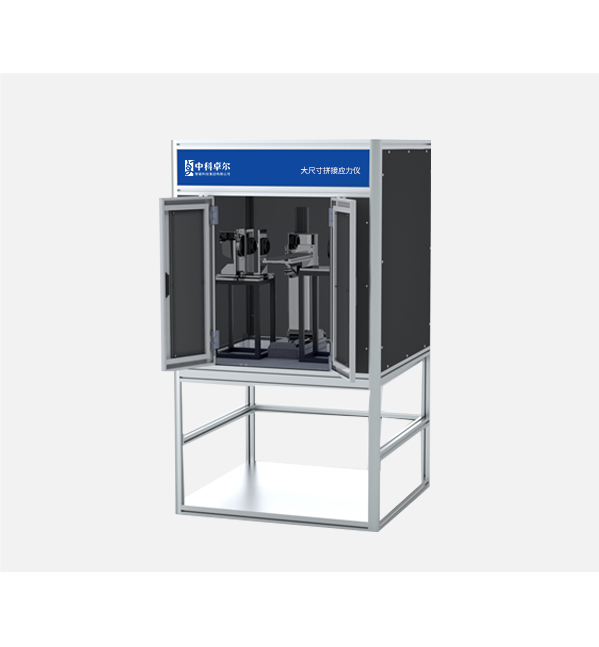

Residual stress in materials and transmitting components on optical production lines affects physical properties, product quality and application performance.
-
General-purpose real-time stress birefringence equipment
Optical Production Equipment
Zeit-group
Operating mode: Real-time Measurement Function: Stress Magnitude and Stress Distribution Detection Band: VIS-520nm,590nm,650nm

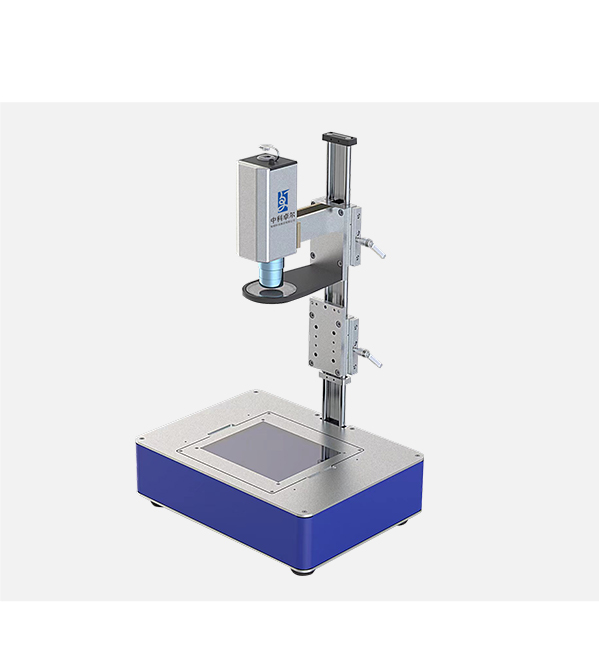

The product uses advanced polarization-birefringence technology for high-precision stress measurement, achieving accuracy down to 0.1nm.
-

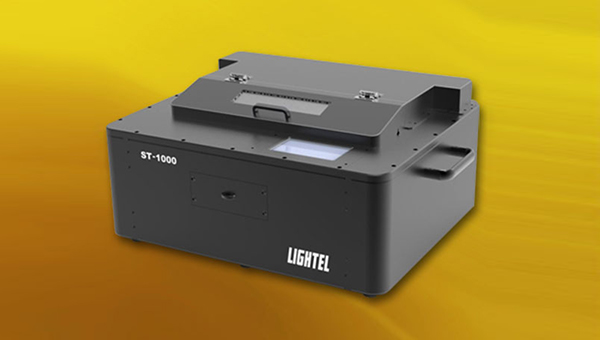

GPST-1000 Sliding Plasma Fiber Coating Stripper
