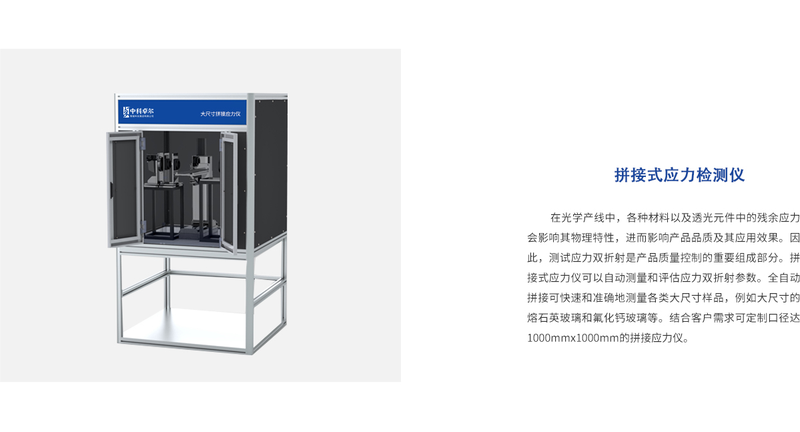

Spliced stress detector
Residual stress in materials and transmitting components on optical production lines affects physical properties, product quality and application performance.
Save to Favorites
Overview

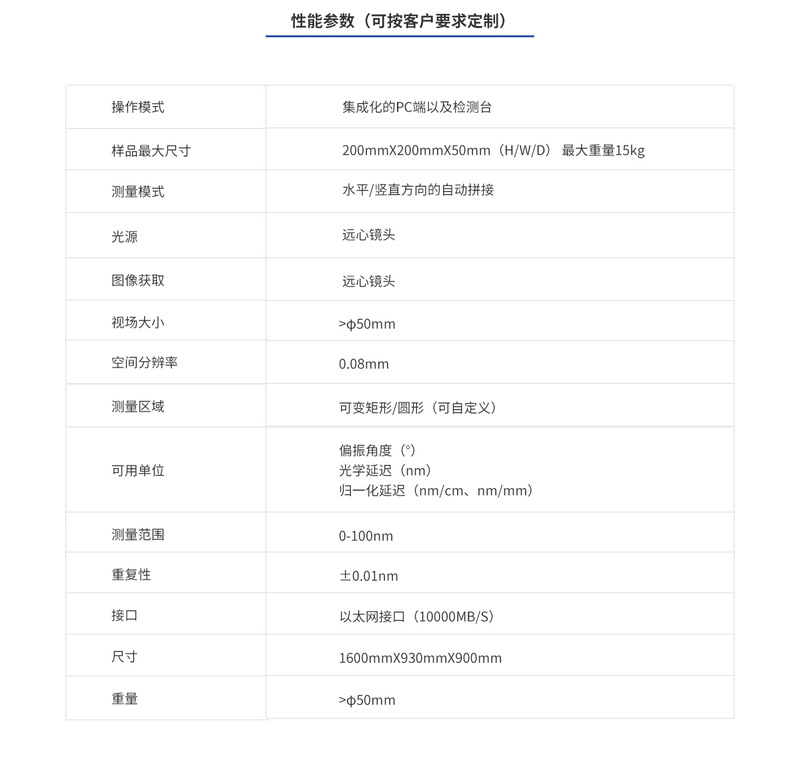

Specifications
| Parameter | Value |
|---|---|
| Operating Mode | Integrated PC Workstation and Inspection Table |
| Maximum Sample Dimensions [H/W/D] | 200 mm × 200 mm × 50 mm |
| Maximum Sample Weight | 15kg |

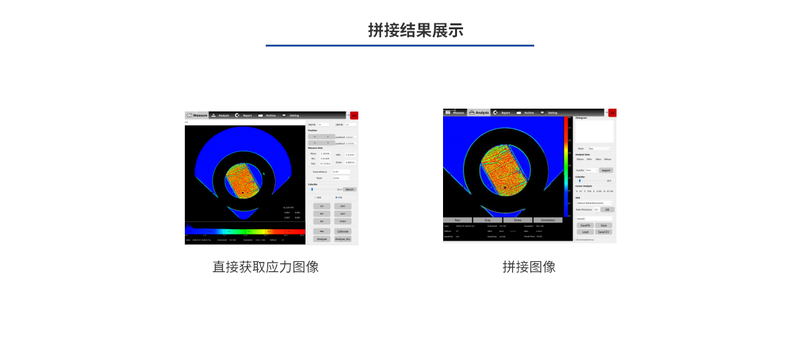

| Measurement Mode | Automatic Stitching in the Horizontal/Vertical Directions |
| Light Source | Telecentric lens |
| Image Acquisition | Telecentric lens |
| Field Size | >φ50mm |
| Spatial Resolution | 0.08mm |
| Measurement Region | Variable Rectangle/Circle (User-definable) |
| Measurement range | 0-100nm |
| Repeatability | ±0.01nm |
| Interface | Ethernet Interface (10000MB/S) |
| Dimensions | 1600 mm × 930 mm × 900 mm |

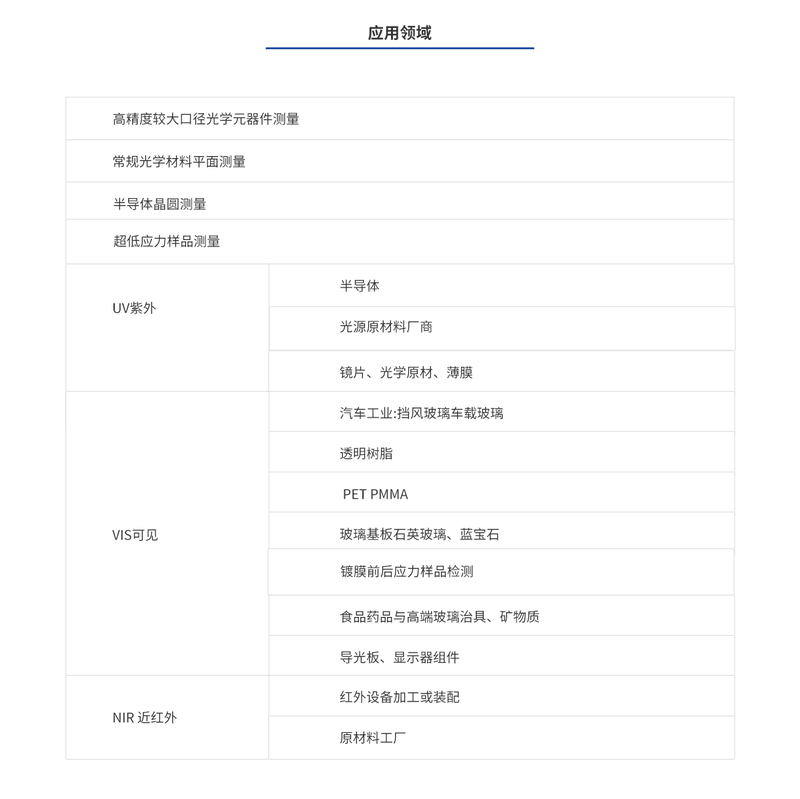

Applications
Key Features
