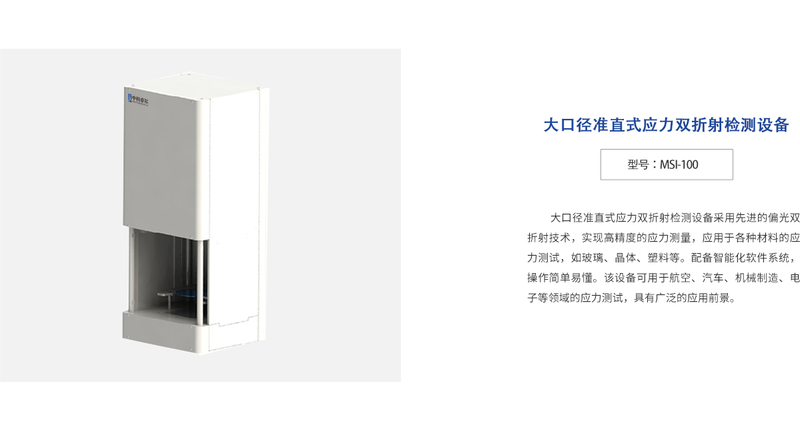

Large-aperture collimated stress birefringence inspection equipment

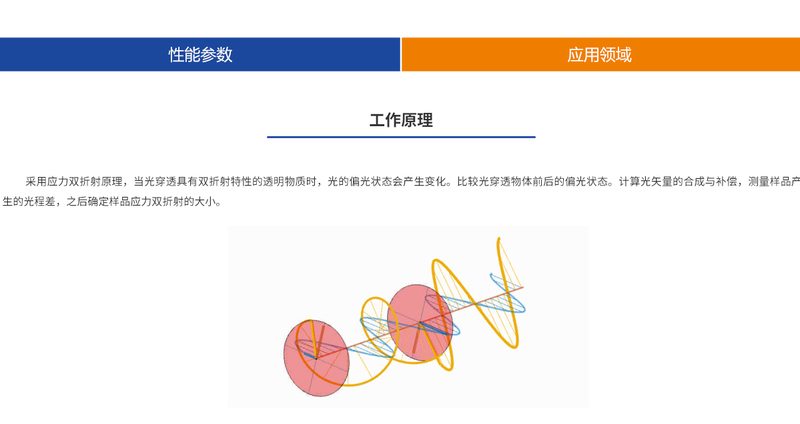

The large-aperture collimated stress-birefringence inspection system uses advanced polarization-birefringence technology for high-precision stress measurement in materials such as glass, crystals and plastics.
Save to Favorites
Overview

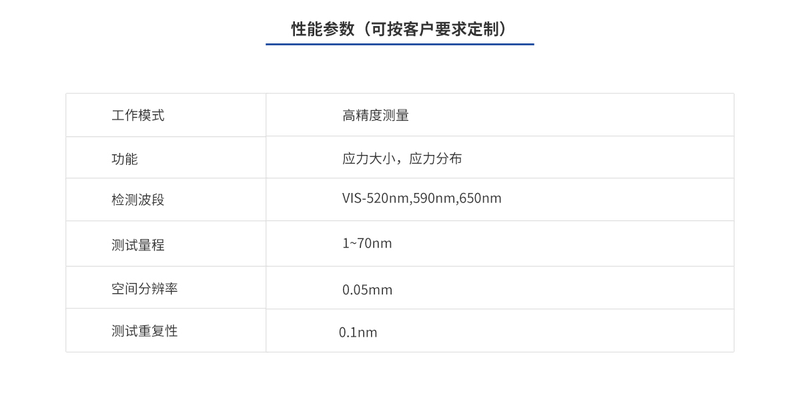

Specifications
| Parameter | Value |
|---|---|
| Operating mode | High-precision Measurement |
| Function | Stress Magnitude and Stress Distribution |
| Detection Band | VIS-520nm,590nm,650nm |
| Test Range | 1~70nm |
| Spatial Resolution | 0.05mm |
| Test Repeatability | 0.1nm |

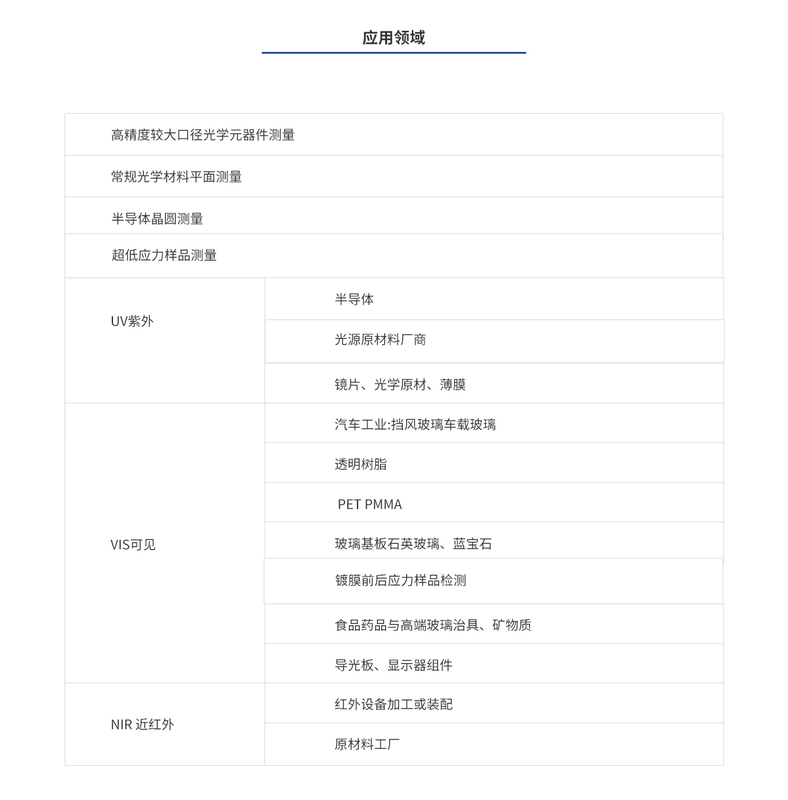

Applications

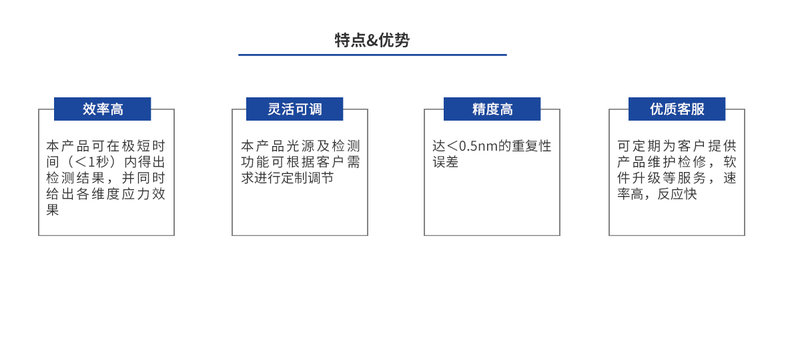

Key Features
Datasheet
