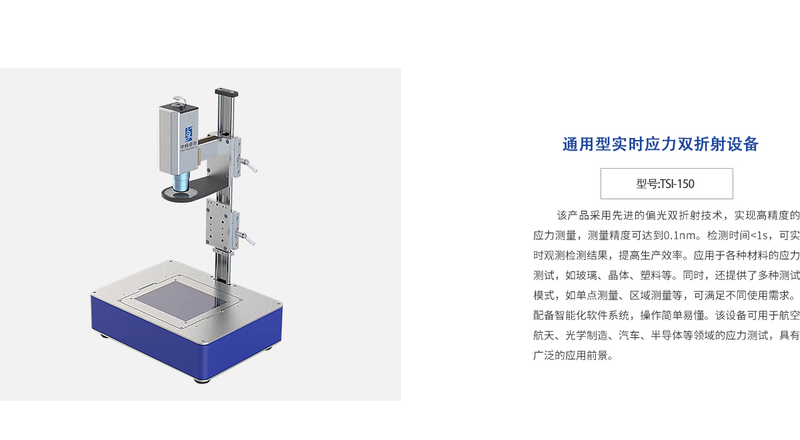

General-purpose real-time stress birefringence equipment
The product uses advanced polarization-birefringence technology for high-precision stress measurement, achieving accuracy down to 0.1nm.
Save to Favorites
Overview

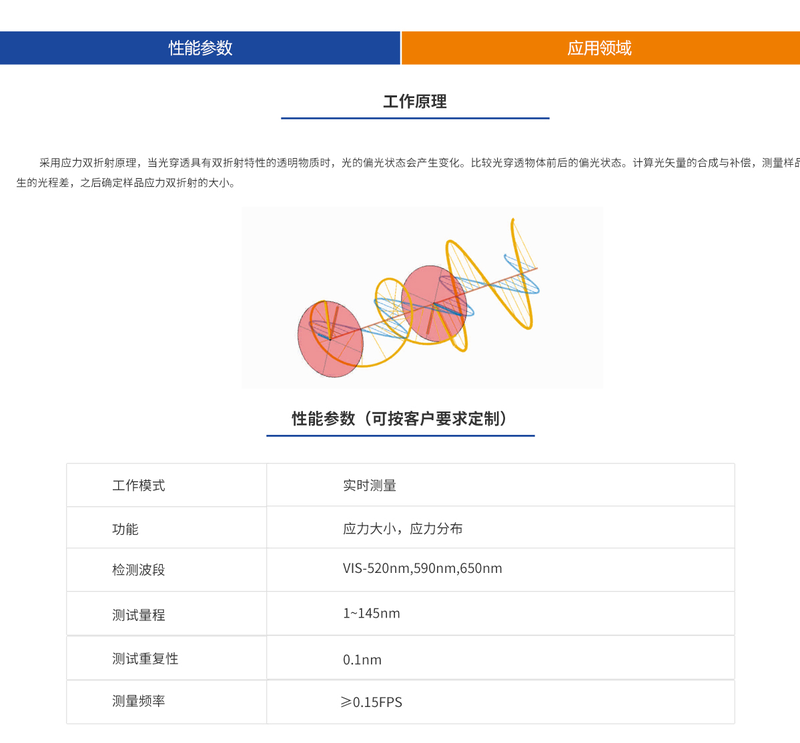

Specifications
| Parameter | Value |
|---|---|
| Operating mode | Real-time Measurement |
| Function | Stress Magnitude and Stress Distribution |
| Detection Band | VIS-520nm,590nm,650nm |
| Test Range | 1~145nm |
| Test Repeatability | 0.1nm |
| Measurement frequency | ≥0.15FPS |

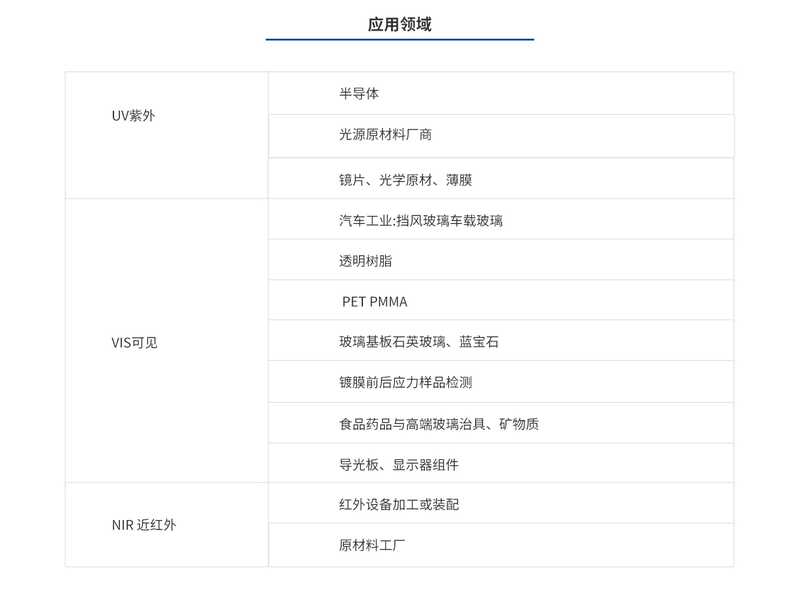

Applications

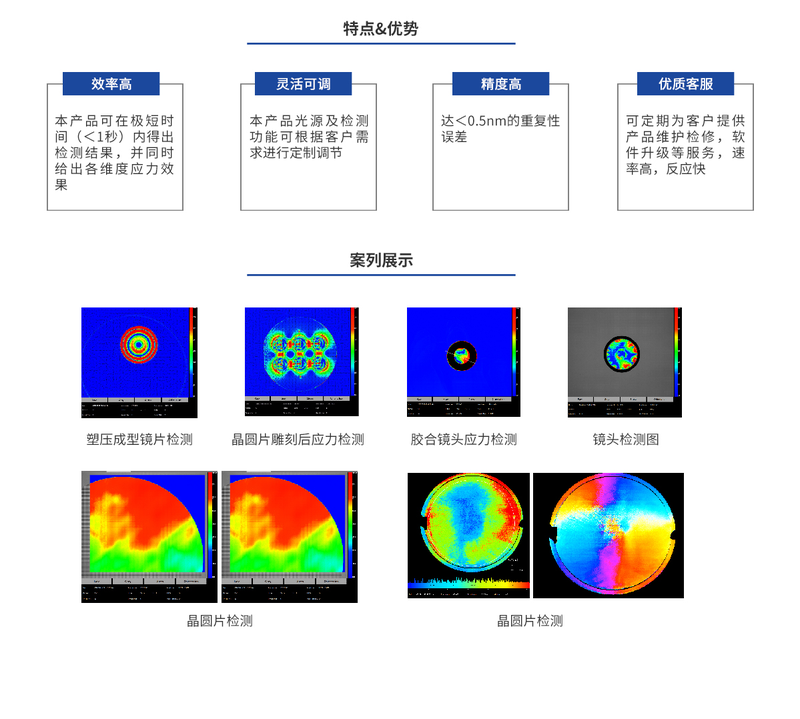

Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
