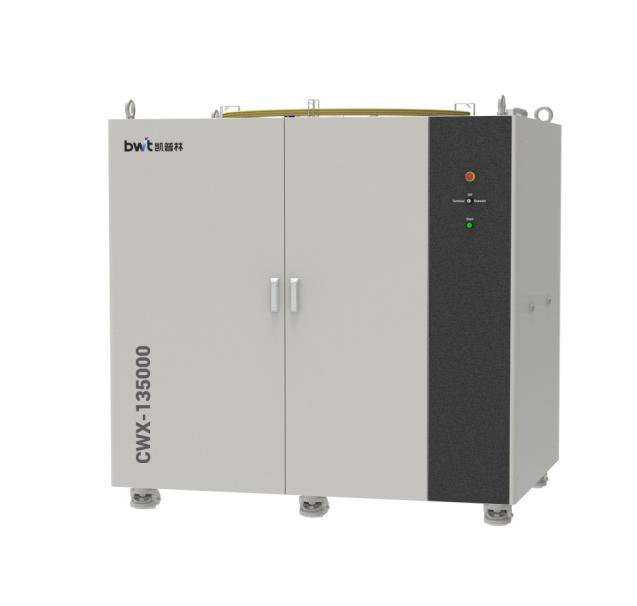

Thunder 135kW Fiber Laser CWX-135000 (雷霆135kW光纤激光器)
The BWT Thunder 135kW Fiber Laser (CWX-135000) delivers outstanding beam quality, allowing the laser beam to be focused close to the diffraction limit. It offers two selectable working modes, continuous and modulated pulse, which greatly reduce the heat-affected zone during processing. Featuring reliable performance and a modular all-fiber design, all optoelectronic components are encapsulated in a robust enclosure capable of withstanding harsh industrial application conditions. This product series is widely used in laser cutting, laser welding and laser drilling, and can process various steels, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics. BWT also provides professional laser application engineers dedicated to delivering high-quality laser system solutions.
Save to Favorites
Overview

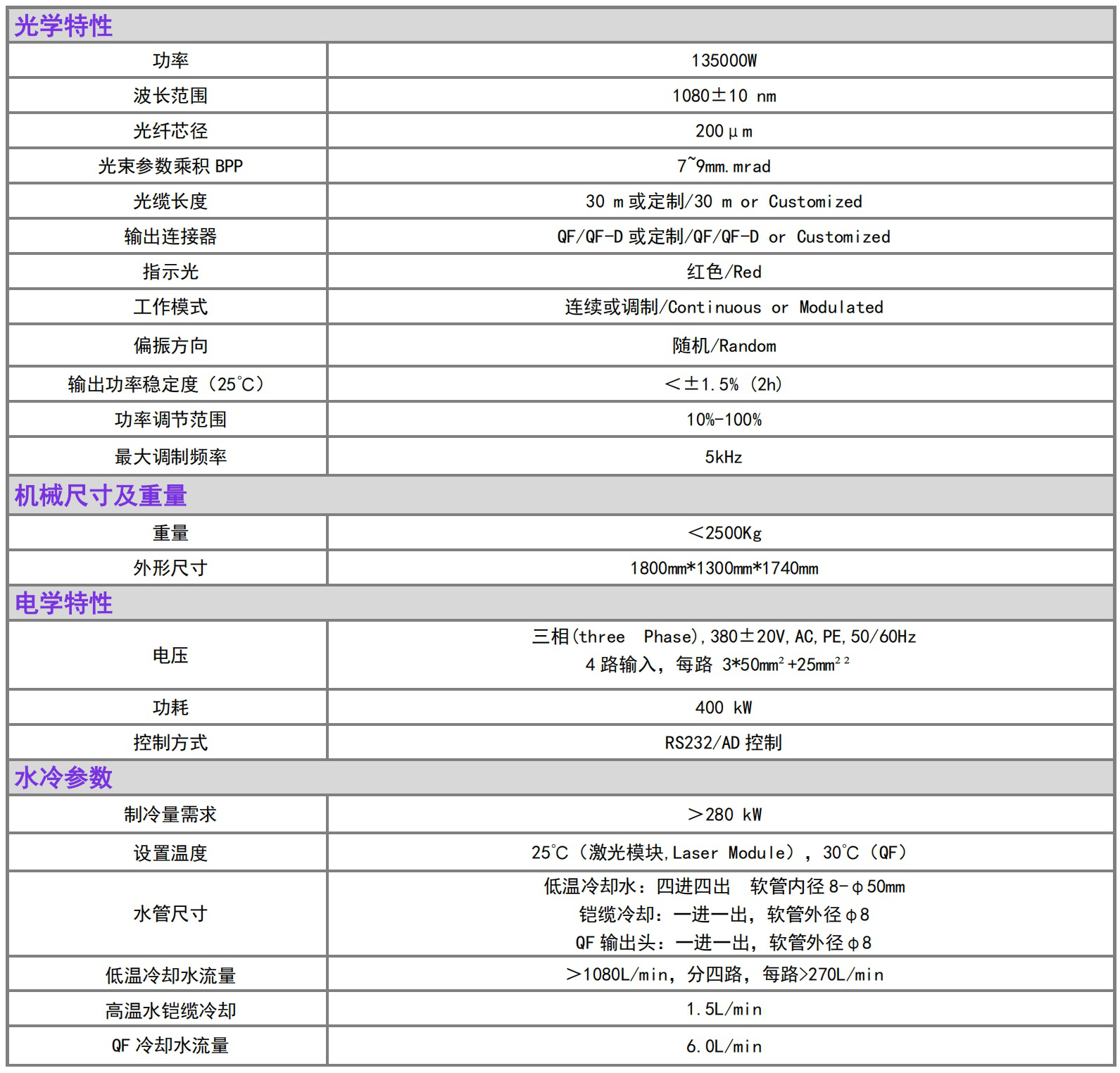

Specifications
| Parameter | Value |
|---|---|
| Power | 135000W |
| Wavelength Range | 1080±10nm |
| Fiber Core Diameter | 200μm |
| Beam Parameter Product (BPP) | 7~9mm·mrad |
| Fiber Cable Length | 30m or Customized |
| Output Connector | QF/QF-D or Customized |
| Indicator Light | Red |
| Working Mode | Continuous or Modulated |
| Polarization Direction | Random |
| Output Power Stability (25℃) | <±1.5%(2h) |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | <2500Kg |
| Dimensions | 1800mm*1300mm*1740mm |
| Voltage | Three Phase, 380±20V, AC, PE, 50/60Hz; 4 inputs, 3*50mm²+25mm² per input |
| Power Consumption | 400kW |
| Control Mode | RS232/AD Control |
| Cooling Capacity Requirement | >280kW |
| Set Temperature | 25℃(Laser Module), 30℃(QF) |
| Water Pipe Size | Low-temperature cooling water: 4 inlets & 4 outlets, hose inner diameter 8-φ50mm; Armor cable cooling: 1 inlet & 1 outlet, hose outer diameter φ8; QF output head: 1 inlet & 1 outlet, hose outer diameter φ8 |
| Low Temperature Cooling Water Flow | >1080L/min, 4 channels, >270L/min per channel |
| High Temperature Water Armor Cable Cooling | 1.5L/min |
| QF Cooling Water Flow | 6.0L/min |
