What Is a Laser Bar? Working Principle & Key Applications of Huaguang EBH-8004-B

1. Why Choose Laser Bars

Single-emitter laser diodes deliver limited optical power and cannot meet high-power demands for laser pumping, medical treatment and industrial manufacturing. Assembled discrete single diodes bring complex optical layout, inconsistent heat dissipation, low coupling efficiency, large overall size and high system cost.

A laser bar is an array semiconductor laser chip integrated with dozens of emitters, which realizes hundred-watt quasi-continuous output on a single chip. With regular emitter arrangement and controllable fill factor, integrated thermal design and superior wall-plug efficiency compared to single chips, it acts as the core light source for high-power pumping, medical lasers and precision processing.

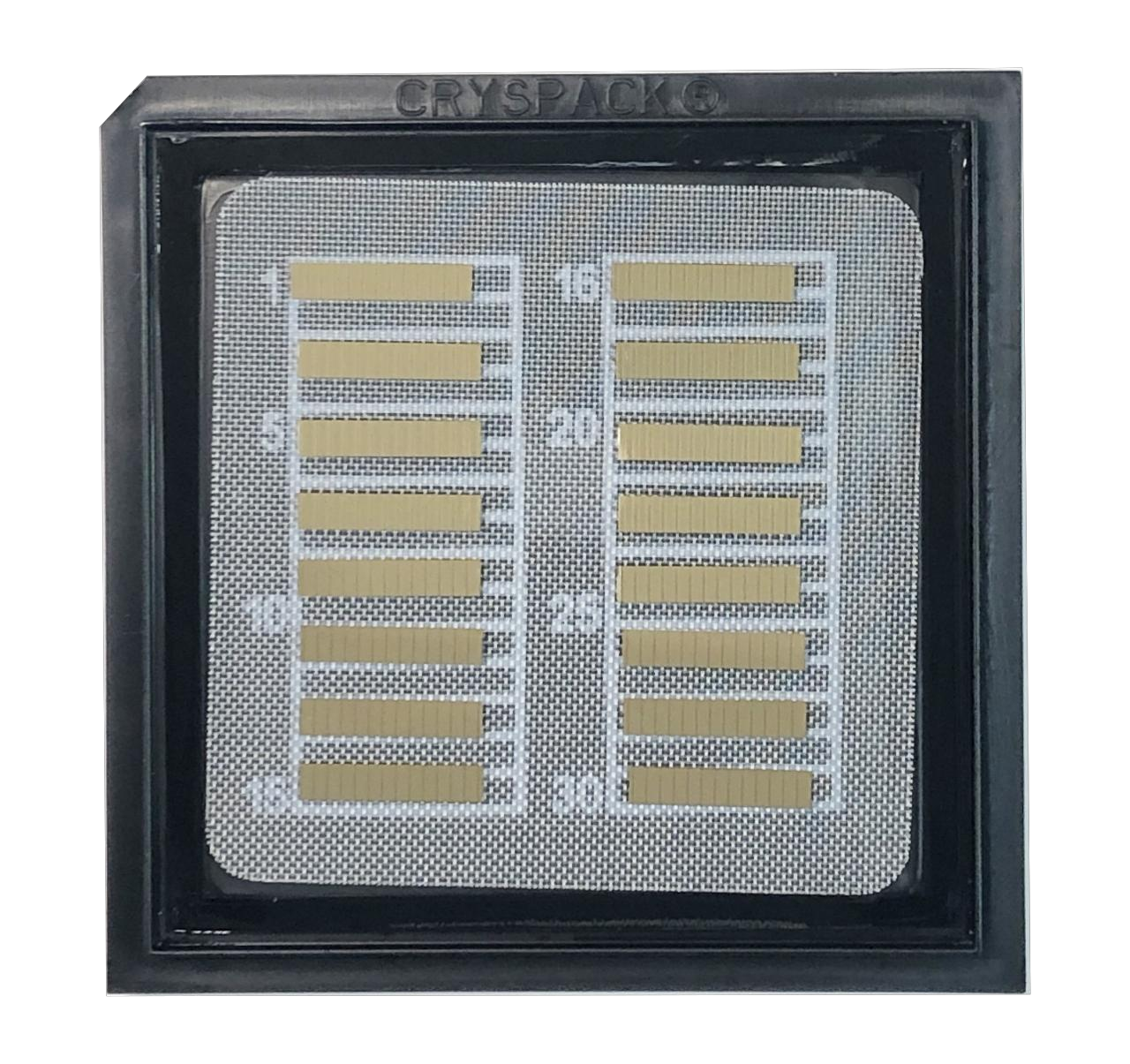

Huaguang EBH-8004-B is a standard 808nm quasi-continuous wave laser bar with 49 emitters of 100μm width. It delivers typical 100W optical output and 55% typical electro-optic efficiency with high reliability and long service life, suitable for measurement sensing, medical therapy, scientific research and advanced manufacturing high-power light source systems.

2. Working Principle of Laser Bars

Huaguang EBH-8004-B is an array semiconductor laser bar with multiple resonant cavities, generating laser via stimulated emission of semiconductor PN junctions. The full operating process includes carrier injection, optical gain amplification and array beam output:

1. Carrier injection & light emission: The bar contains 49 independent laser resonant cavities. Forward drive current injects carriers; electrons and holes recombine in the active region to emit 808nm spontaneous photons. Once current exceeds the 18A threshold current, stimulated laser output is generated.
2. Resonant cavity amplification: The chip features 1500μm long cavity. Front and rear facets form optical resonators, photons oscillate inside the cavity to gain amplification and emit directional laser light. Each single emitter is 100μm wide with 200μm pitch and 50% fill factor, balancing power density and heat dissipation performance.
3. Divergent array beam output: Laser beam has two divergence axes: fast axis FWHM 38°, slow axis FWHM 10°, spectral width only 4–5 nm. 96% TE polarization ratio simplifies subsequent optical shaping and coupling. It operates under QCW mode to output hundred-watt peak power intermittently.
   The wavelength temperature coefficient is only 0.28 nm/℃; simple temperature control stabilizes central wavelength for wavelength-sensitive optical systems.

3. Core Product Highlights of Huaguang EBH-8004-B

1. 100W high peak optical power: 808nm central wavelength with typical 100W output under quasi-continuous wave operation for high-power laser systems;
2. Industry-leading electro-optic efficiency: Minimum total efficiency 50%, typical 55%, slope efficiency 1.15 W/A, less heat generation under equal power to reduce system cooling burden;
3. Uniform 49-emitter array layout: 49 emitters with 100μm width and 200μm pitch, 50% fill factor ensures even power distribution and avoids local overheating chip damage;
4. Narrow stable spectrum: 4–5 nm spectral width, low wavelength drift 0.28 nm/℃, stable wavelength with basic TEC cooling; 96% TE polarization minimizes optical coupling loss;
5. Linear optical power characteristic: Low threshold current 18A, linear power output at 105A operating current without kink, simplifying drive circuit design;
6. Industrial high-reliability chip design: 1500μm long resonant cavity, 110μm chip thickness with optimized thermal substrate, shock-resistant and long lifespan for 24/7 intermittent operation;
7. Wide wavelength tolerance 803–813 nm: Central wavelength at 808 nm, compatible with fiber pumping, medical and inspection optical systems.

4. Key Product Applications

1. Medical & Healthcare Laser Therapy: Infrared laser physiotherapy instruments, hair removal devices, pain relief therapeutic light sources;
2. Fiber Laser Pump Source: Pump excitation for pulsed fiber lasers and solid-state lasers at 808nm;
3. Advanced Industrial Manufacturing: Laser cleaning, laser marking, plastic welding and auxiliary infrared heating light sources;
4. Measurement & Sensing Equipment: Infrared rangefinders, industrial machine vision illumination, high-power light sources for infrared spectroscopy;
5. Academic Scientific Labs: Excitation sources for infrared optical experiments, nonlinear optics and laser medium research;
6. Photothermal Processing Equipment: Infrared drying, metal surface heat treatment and material irradiation test light sources.
