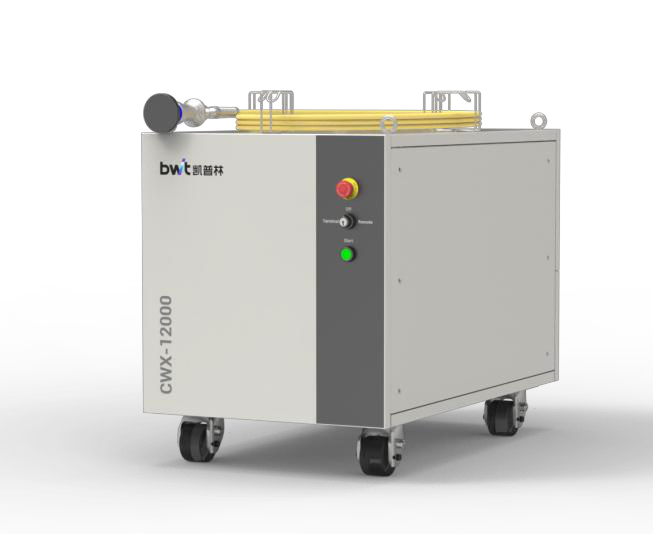

Thunder 12kW Fiber Laser CWX-12000
BWT's Thunder 12kW fiber laser (CWX-12000) delivers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit to achieve precision machining. It offers both continuous and modulated operating modes, which greatly reduce the heat-affected zone during processing. Featuring reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged enclosure that can withstand harsh industrial application conditions. The product is widely used in precision machining, sheet metal processing, laser cladding and lithium battery processing, and is capable of processing various steels, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics. Backed by professional laser application engineers, BWT provides customers with high-quality laser system solutions.
Save to Favorites
Overview

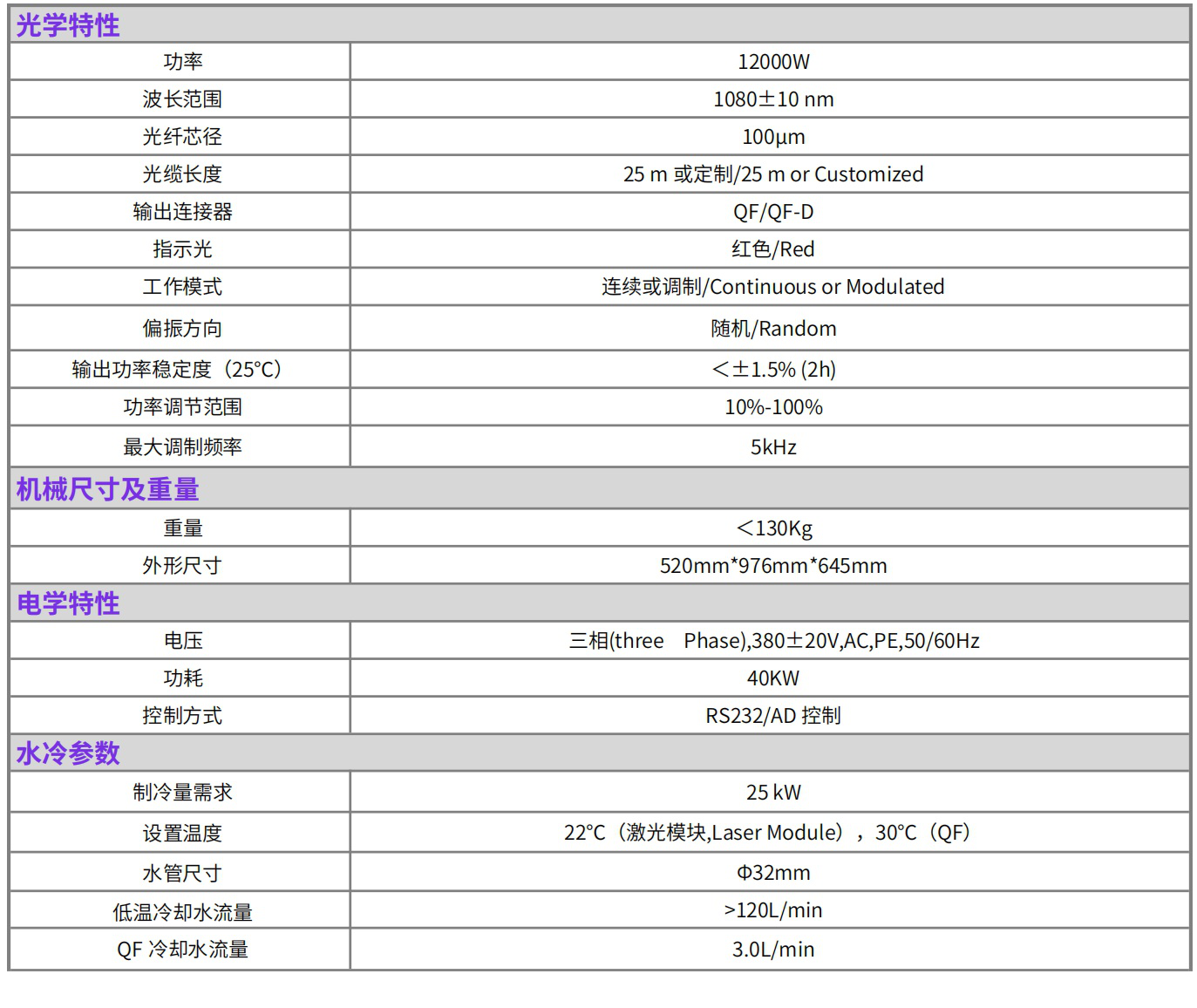

Specifications
| Parameter | Value |
|---|---|
| Output Connector | QF/QF-D |
| Indicator Light | Red |
| Operating Mode | Continuous or modulated |
| Polarization Direction | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~195kg |
| Dimensions | 570mm*960mm*670mm |
| Power Consumption | 40kW |
| Control Mode | RS232/AD control |
| Cooling Capacity Requirement | 28kW |
| Set Temperature | 22 °C (laser module), 30 °C (QF/QF-D) |
| Water Pipe Size | Φ32mm |
| Low-Temperature Cooling Water Flow | >120L/min |
| QF Cooling Water Flow | 3.0L/min |
Applications
Key Features
Datasheet
