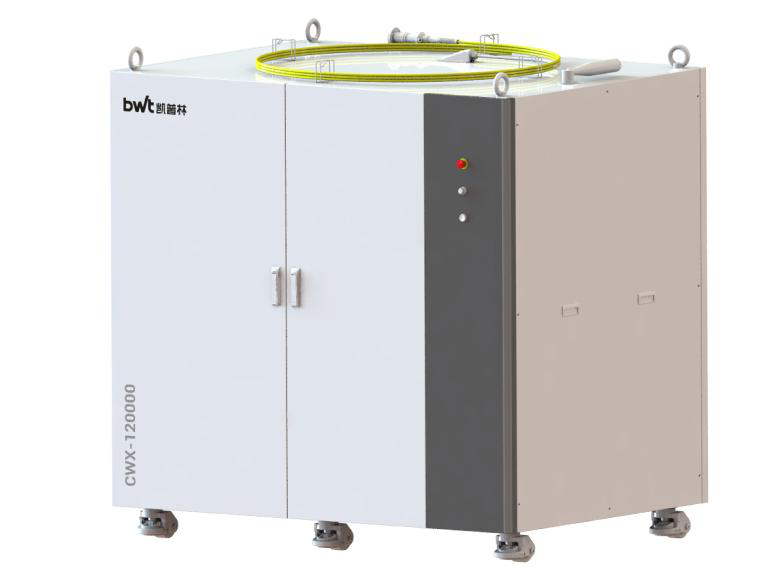

CWX-120000 Thunder 120kW Fiber Laser
The BWT Thunder 120kW fiber laser delivers outstanding beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. It offers both continuous wave (CW) and modulated pulse working modes, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are encapsulated in a rugged enclosure capable of withstanding harsh industrial application conditions.
Save to Favorites
Overview

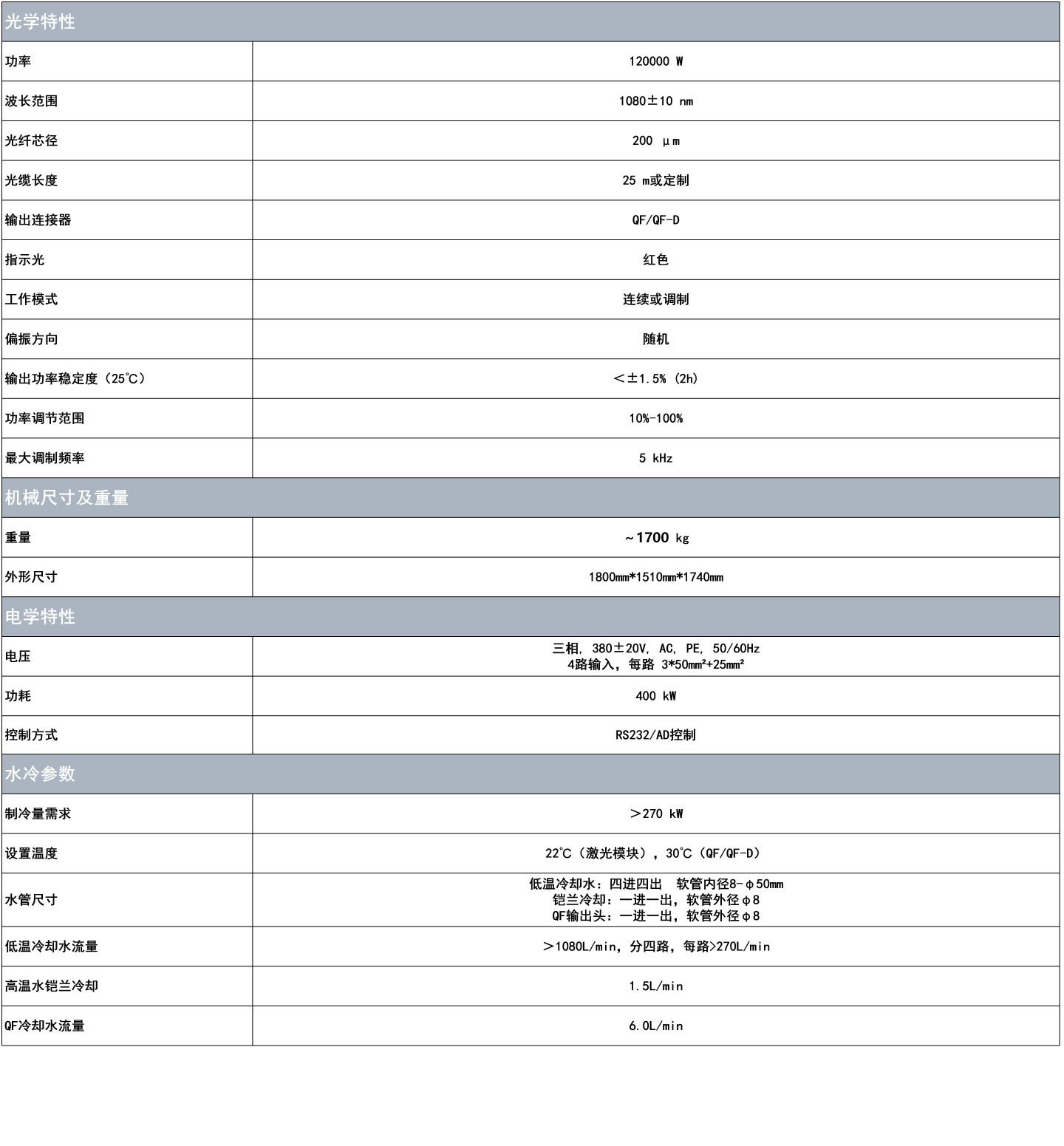

Specifications
| Parameter | Value |
|---|---|
| Fiber Core Diameter | 200μm |
| Optical Cable Length | 25 m or custom length |
| Output Connector | QF/QF-D |
| Indicator Light | Red |
| Polarization | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~1700kg |

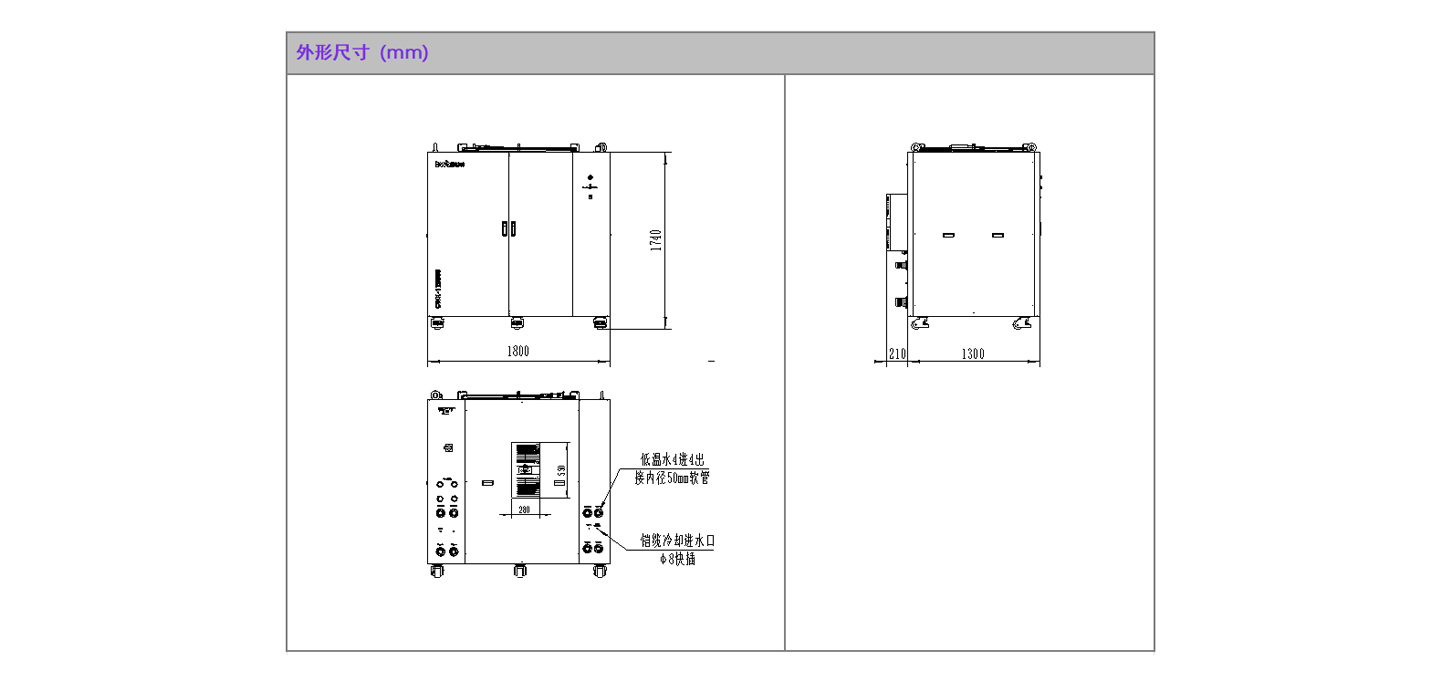

| Dimensions | 1800mm*1510mm*1740mm |
| Power Consumption | 400kW |
| Cooling Capacity Requirement | >270kW |
| Set Temperature | 22 °C (laser module), 30 °C (QF/QF-D) |
| Water Pipe Size | Low-temperature cooling water: 4 inlets and 4 outlets, hose ID 8-φ50 mm; armored cable cooling: 1 inlet and 1 outlet, hose OD φ8; QF output head: 1 inlet and 1 outlet, hose OD φ8 |
| Low-Temperature Cooling Water Flow | >1080 L/min, split into 4 circuits, each >270 L/min |
| High-Temperature Water Armor Cooling | 1.5L/min |
| QF Cooling Water Flow | 6.0L/min |
