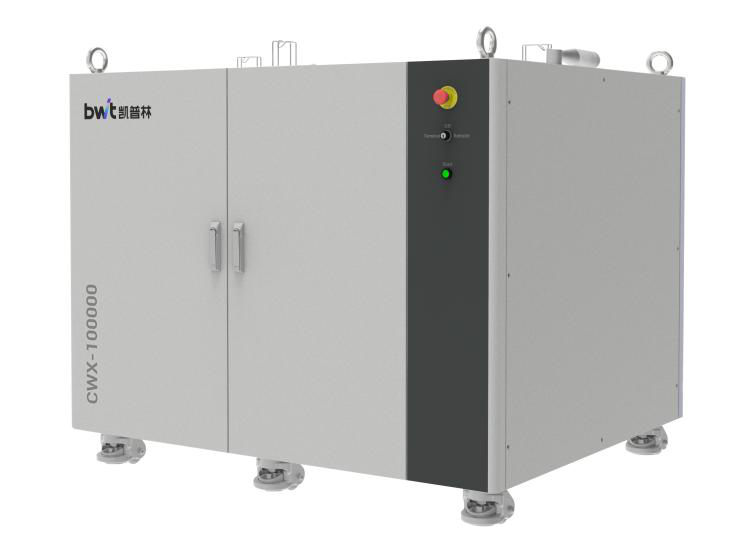

Thunder 100kW Fiber Laser CWX-100000
The BWT Thunder 100kW fiber laser (model CWX-100000) delivers outstanding beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. It offers both continuous-wave (CW) and modulated working modes, which greatly reduce the heat-affected zone during processing. Built with a reliable modular all-fiber design, all optoelectronic components are sealed inside a rugged industrial enclosure that can withstand harsh application conditions. The laser provides 100000W output power at 1080±10nm with excellent power stability (<±1.5% in 2h), a 200μm fiber core, QF/QF-D output connector, power adjustable from 10% to 100%, and a maximum modulation frequency of 5kHz. It can process various steels, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics and more. BWT's professional laser application engineers are dedicated to providing high-quality laser system solutions.
Save to Favorites
Overview

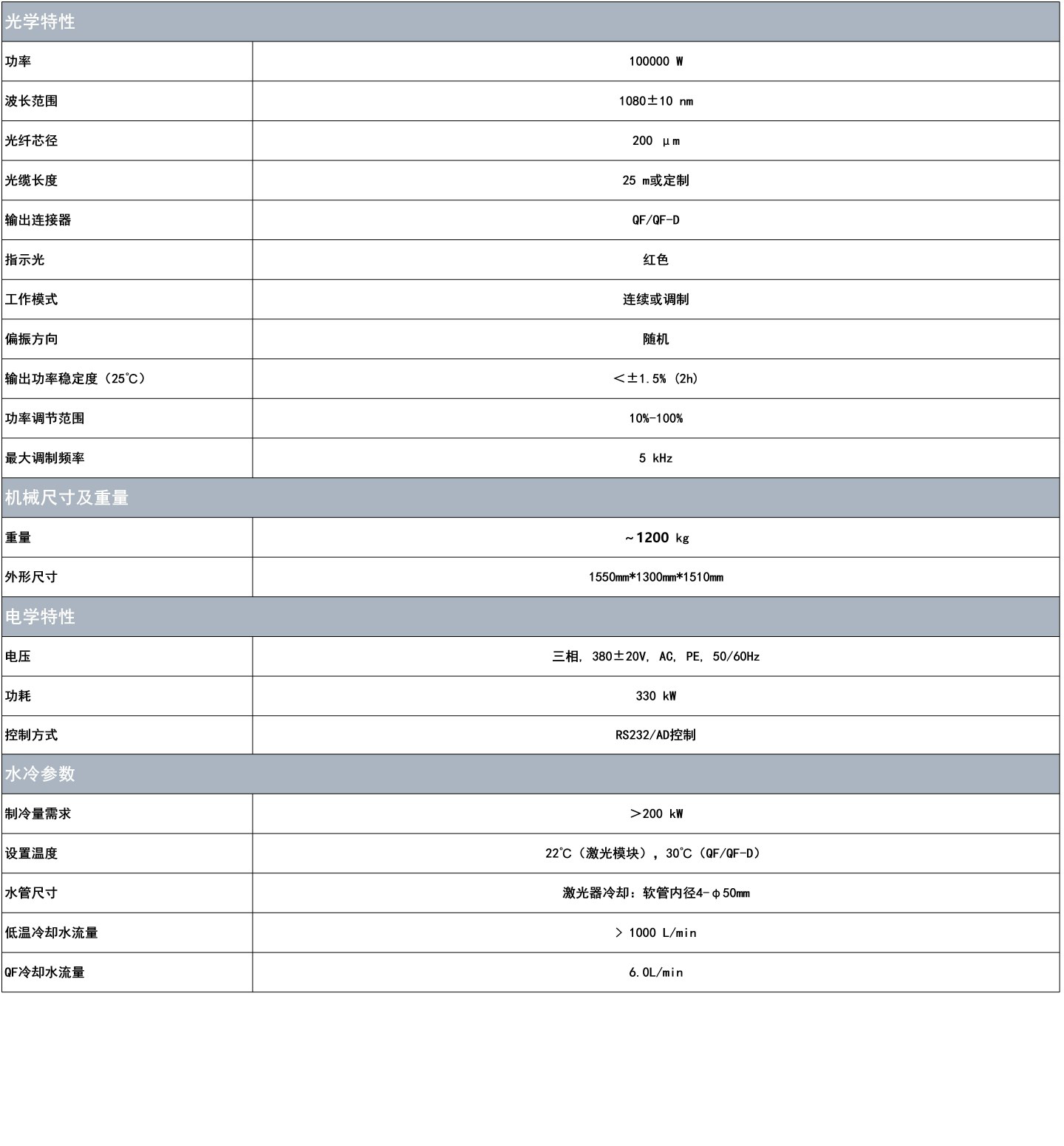

Specifications
| Parameter | Value |
|---|---|
| Power | 100000W |
| Fiber Core Diameter | 200μm |
| Fiber Cable Length | 25 m or custom length |
| Output Connector | QF/QF-D |
| Indicator Light | Red |
| Polarization Direction | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~1200kg |

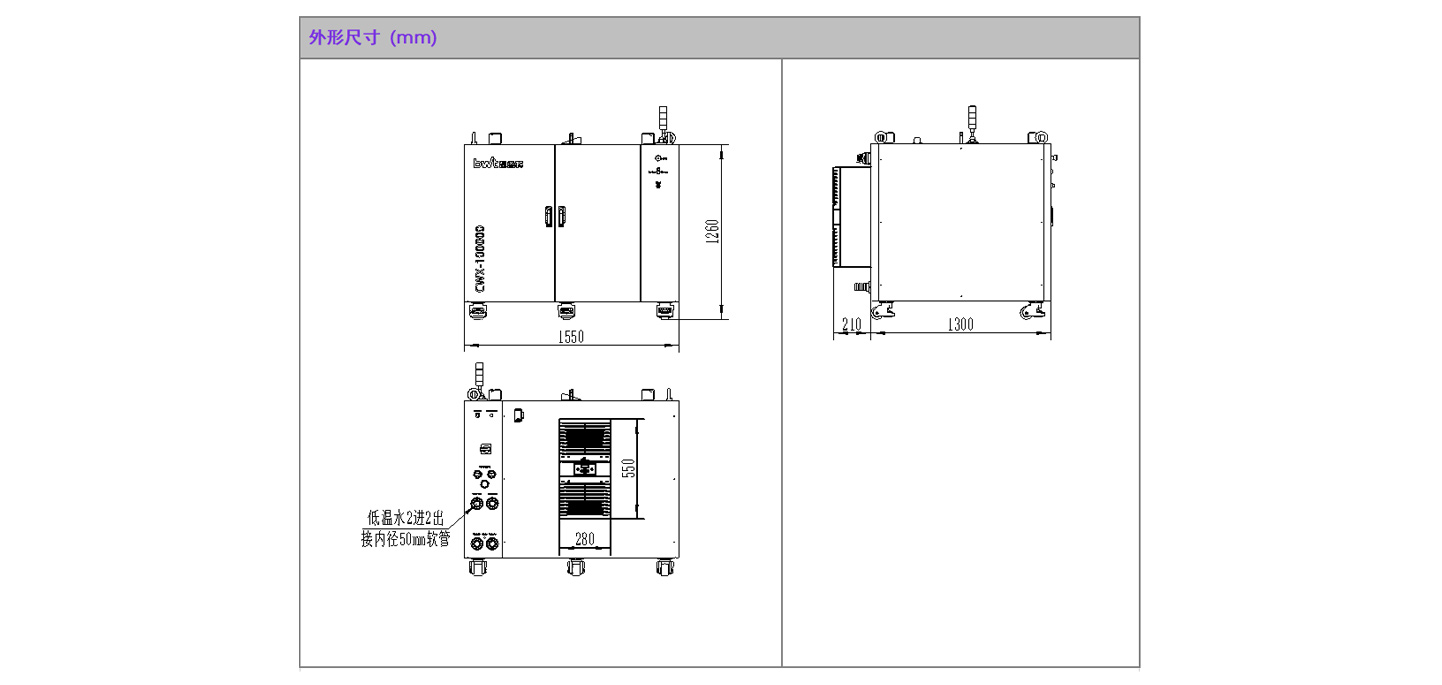

| Overall Dimensions | 1550mm*1300mm*1510mm |
| Power Consumption | 330kW |
| Control Mode | RS232/AD control |
| Cooling Capacity Requirement | >200kW |
| Set Temperature | 22 °C (laser module), 30 °C (QF/QF-D) |
| Water Pipe Size (Inner Diameter) | Laser cooling: hose ID 4-φ50 mm |
| Cooling Water Flow | >1000L/min |
| QF/QF-D Cooling Water Flow | 6.0L/min |
