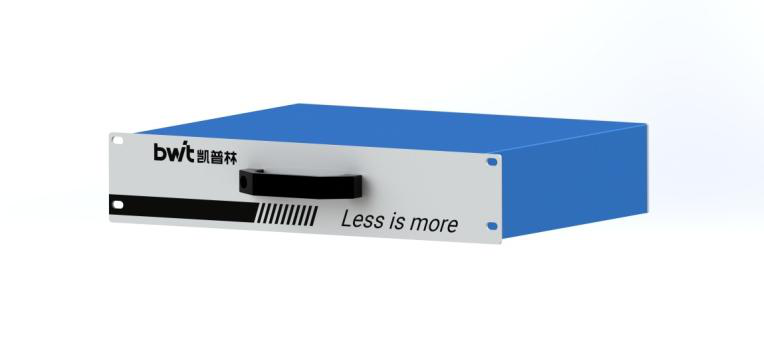

Lightning PLUS Fiber Laser
In the field of cutting processing, every innovation in laser technology means a dual improvement in production efficiency and product quality. With the growing demand for high-precision and high-efficiency thin plate processing, the launch of the BWT Lightning PLUS Fiber Laser aims to return to the essence of industrial equipment: ultimate stability, ultra-long service life, impeccable process quality and a top-level service experience. The Lightning PLUS achieves the leap from a 'standardized tool' to a 'scenario-based solution', breaking through the three major bottlenecks of thin plate processing—efficiency, precision and cost—and driving laser processing from extensive development toward refined operation. The laser delivers excellent beam quality, allowing the beam to be focused close to the diffraction limit for precision machining. Both continuous (CW) and modulated operation modes are selectable, greatly reducing the heat-affected zone. Featuring reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged housing, enabling the laser to withstand harsh industrial application conditions. It is the ideal choice for established brand manufacturers, demanding cutting-process users and entrepreneurs pursuing a high return on investment.
Save to Favorites
Overview

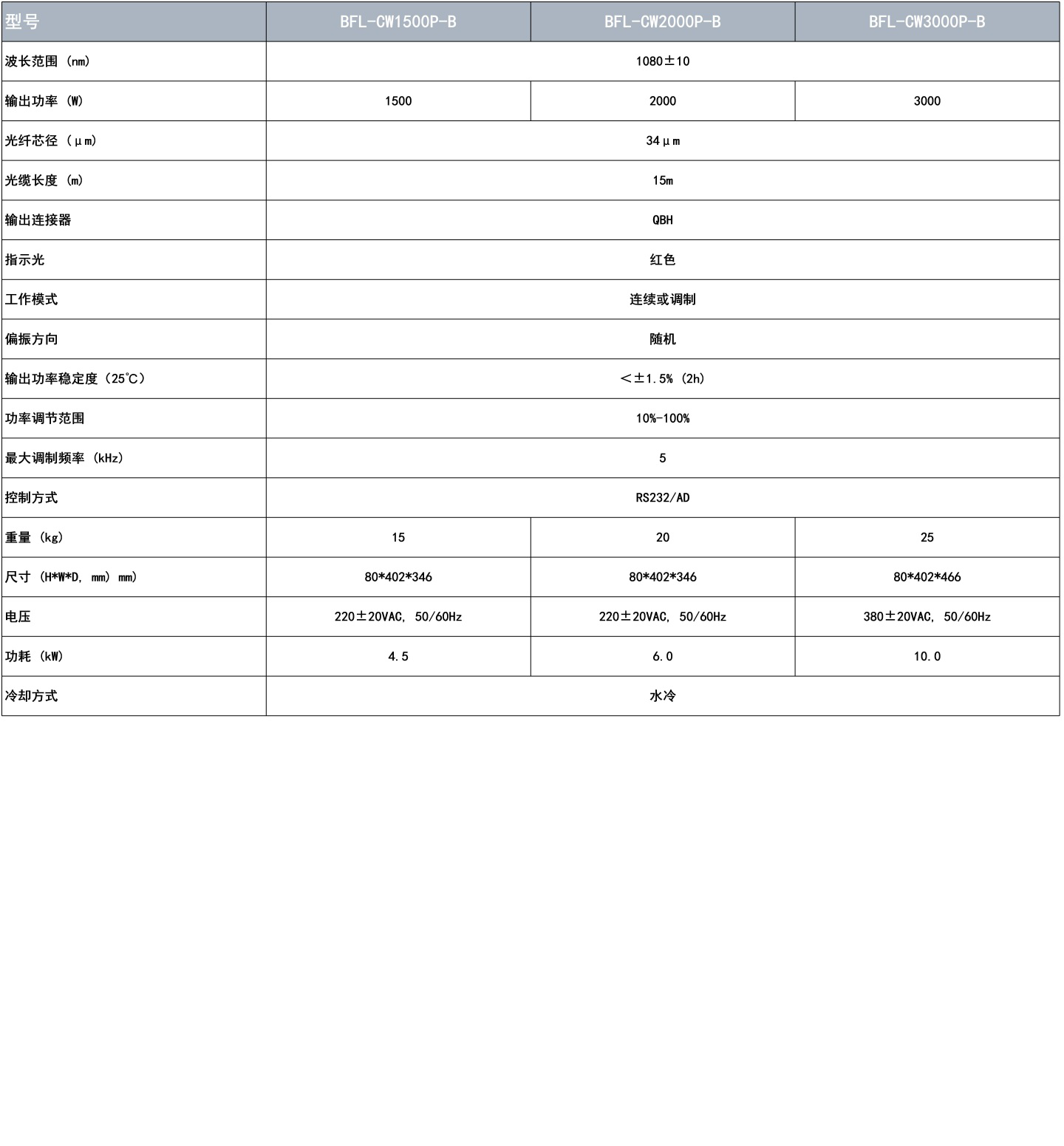

Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 1080±10nm |
| Output Power (W) BFL-CW1500P-B | 1500W |
| Output Power (W) BFL-CW2000P-B | 2000W |
| Output Power (W) BFL-CW3000P-B | 3000W |
| Fiber Core Diameter (μm) | 34μm |
| Fiber Cable Length (m) | 15m |
| Output Connector | QBH |
| Pilot Light | Red |
| Operation Mode | Continuous wave (CW) or modulated |
| Polarization Direction | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency (kHz) | 5kHz |
| Control Mode | RS232/AD |
| Weight (kg) BFL-CW1500P-B | 15kg |
| Weight (kg) BFL-CW2000P-B | 20kg |
| Weight (kg) BFL-CW3000P-B | 25kg |
| Dimensions (H*W*D, mm) BFL-CW1500P-B | 80*402*346 |
| Dimensions (H*W*D, mm) BFL-CW2000P-B | 80*402*346 |
| Dimensions (H*W*D, mm) BFL-CW3000P-B | 80*402*466 |
| Voltage BFL-CW1500P-B | 220±20VAC, 50/60Hz |
| Voltage BFL-CW2000P-B | 220±20VAC, 50/60Hz |
| Voltage BFL-CW3000P-B | 380±20VAC, 50/60Hz |
| Power Consumption (kW) BFL-CW1500P-B | 4.5kW |
| Power Consumption (kW) BFL-CW2000P-B | 6.0kW |
| Power Consumption (kW) BFL-CW3000P-B | 10.0kW |
| Spot Roundness | >98% |
| Kerf Width (mm) | ≤0.05mm |
| Cutting Speed Increase | 40% |
| Productivity Increase | 30%-50% |
| Warranty Period | 800 days |
