6000W High Power CW Fiber Laser
The BWT 6000W high-power continuous wave (CW) fiber laser is an industrial-grade rack-mount laser source operating at a wavelength of 1080±10nm. Featuring a compact 2U chassis (93mm×482mm×806mm) and weighing only ~46Kg, it delivers a stable 6000W output through a QBH connector with optional 50μm or 100μm fiber core diameters and a standard 25m delivery fiber cable. With output power stability of <±1.5% (2h), a wide 10%-100% power adjustment range, continuous or modulated working modes up to 5kHz, and an efficient water-cooling design with independent temperature control for the laser module and QBH head, this laser embodies the 'Less is more' design philosophy and is engineered for high-performance laser cutting, welding, cladding, and other metal processing applications.
Save to Favorites
Overview
Specifications

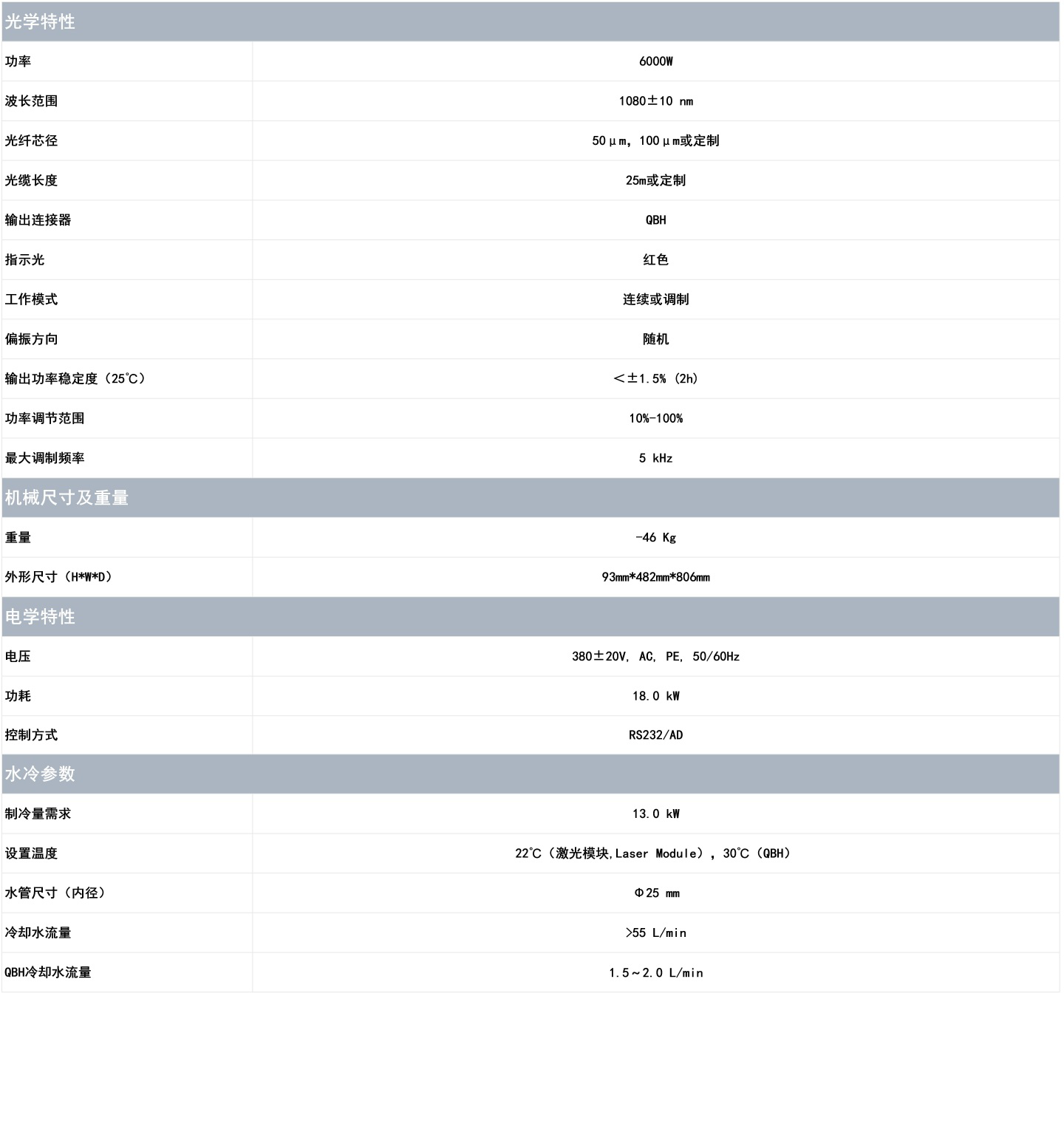

| Parameter | Value |
|---|---|
| Power | 6000W |
| Wavelength Range | 1080±10nm |
| Fiber Core Diameter | 50μm, 100μm or customized |
| Fiber Cable Length | 25m or customized |
| Output Connector | QBH |
| Indicator Light | Red |
| Working Mode | Continuous or Modulated |
| Polarization Direction | Random |
| Output Power Stability (25℃) | <±1.5% (2h) |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~46Kg |

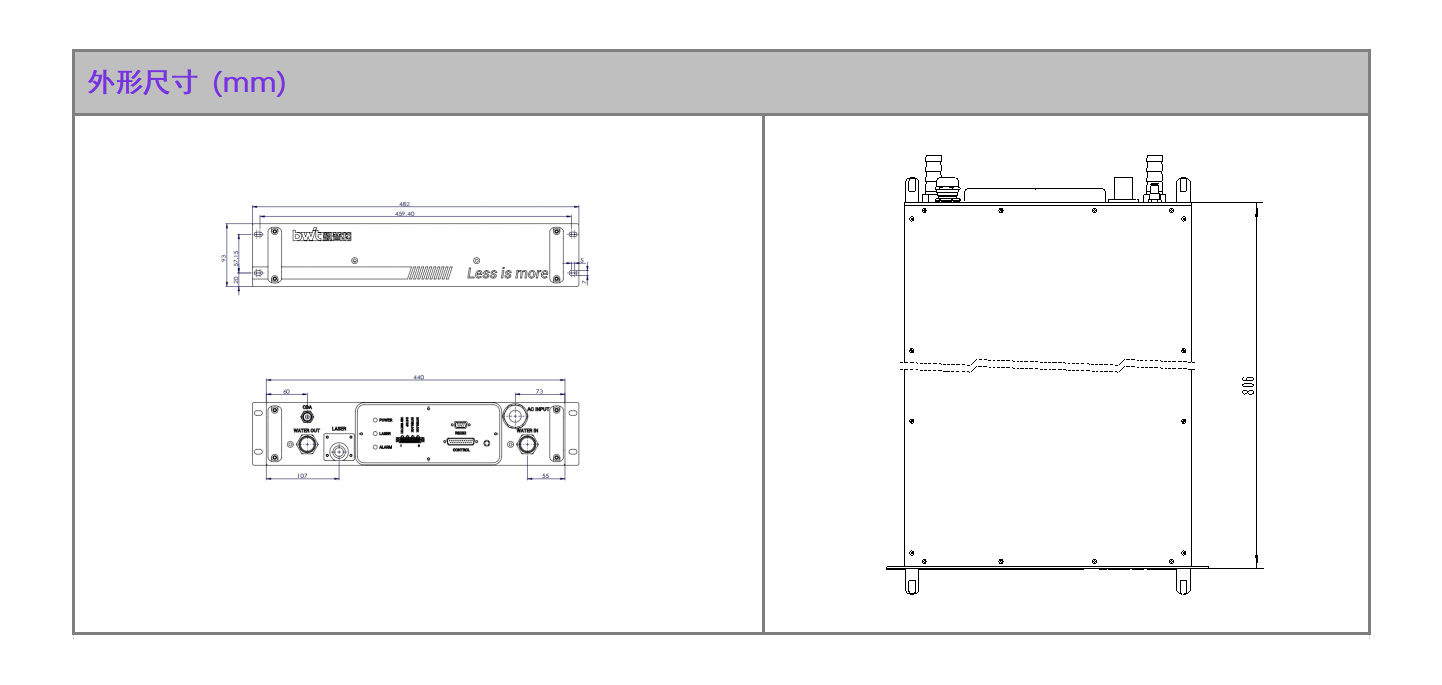

| Dimensions (H*W*D) | 93mm*482mm*806mm |
| Voltage | 380±20V, AC, PE, 50/60Hz |
| Power Consumption | 18.0kW |
| Control Mode | RS232/AD |
| Cooling Capacity Requirement | 13.0kW |
| Set Temperature | 22℃ (Laser Module), 30℃ (QBH) |
| Water Pipe Size (Inner Diameter) | Φ25mm |
| Cooling Water Flow | >55L/min |
| QBH Cooling Water Flow | 1.5~2.0L/min |
