BFL-CW3000 Lightning Series Fiber Laser

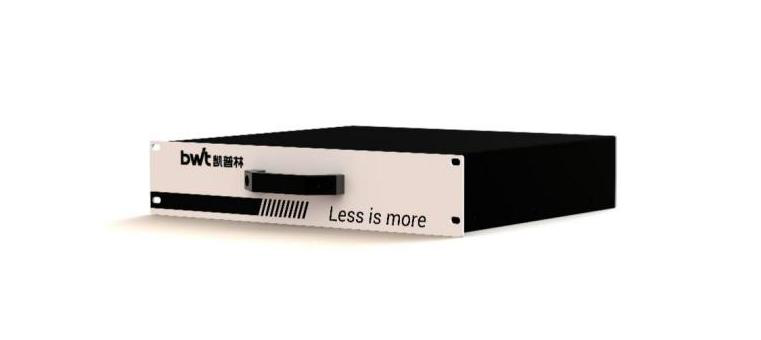

The BWT BFL-CW3000 fiber laser delivers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit. It offers two selectable operating modes—continuous wave and modulated pulse—which greatly reduce the heat-affected zone during processing. Featuring reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged housing that can withstand harsh industrial application conditions. The laser is capable of processing various steels, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics. BWT's professional laser application engineers are dedicated to providing high-quality laser system solutions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | 3000W |
| Fiber Core Diameter | 50 μm or custom size |
| Output Connector | QBH |
| Indicator Light | Red |
| Operating Mode | Continuous or modulated |
| Polarization | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~26Kg |

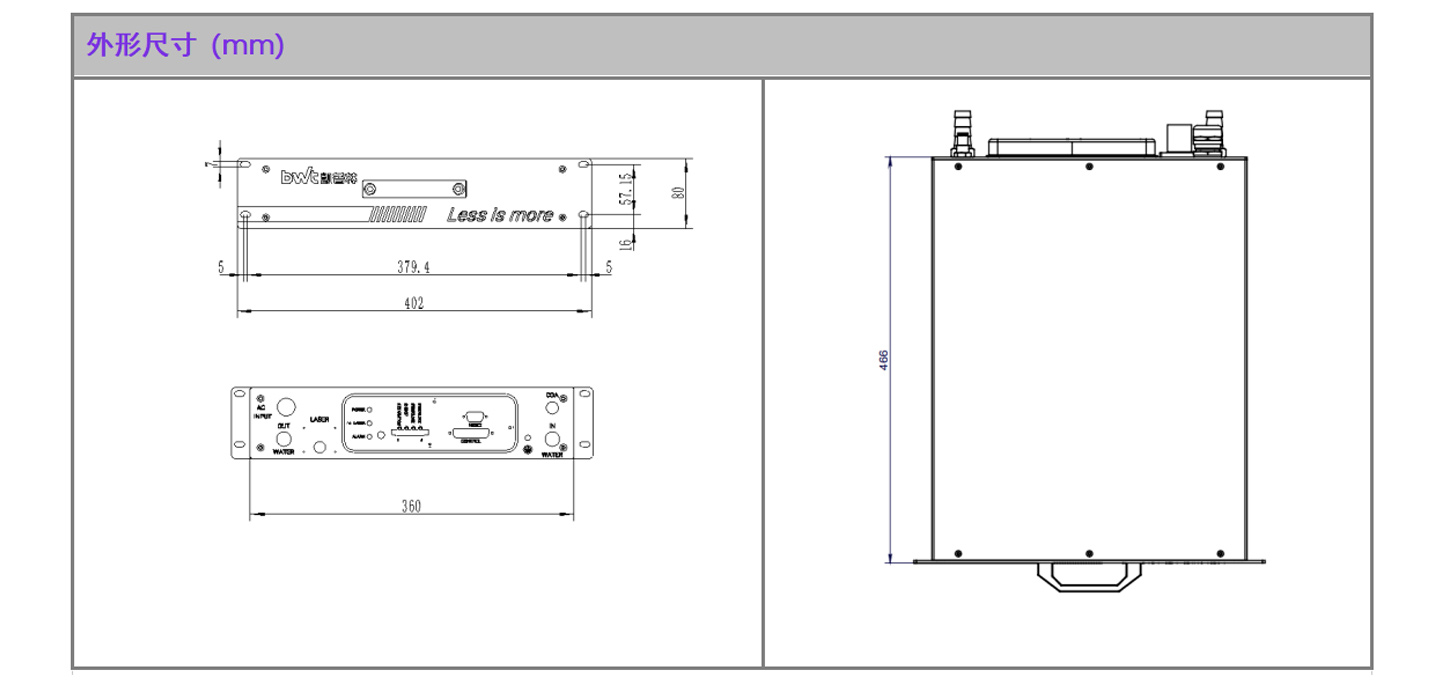

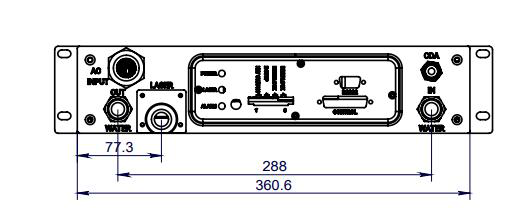

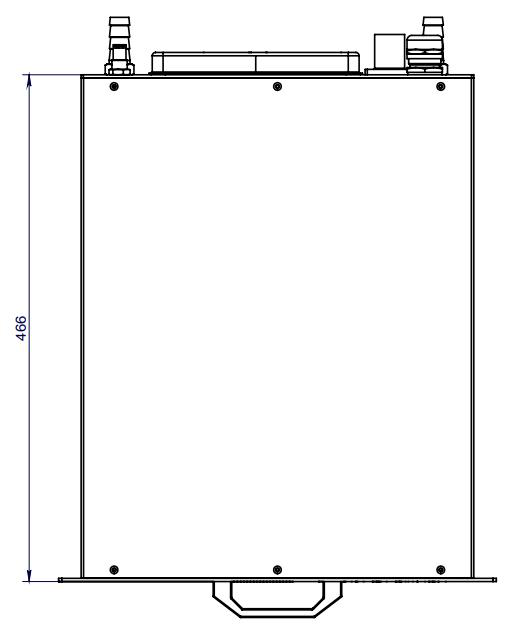

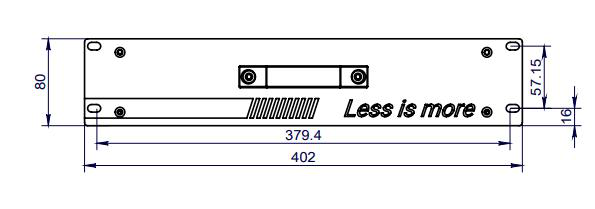

| Dimensions (H*W*D) | 80mm*402mm*466mm |
| Voltage | 380±20V, AC, PE, 50/60Hz |
| Power Consumption | 10.0kW |
| Control Mode | RS232/AD |
| Cooling Capacity Requirement | 7.0kW |
| Set Temperature | 25 °C (laser module), 30 °C (QBH) |
| Water Pipe Size (Inner Diameter) | Φ19mm |
| QBH Cooling Water Flow Rate | 1.5~2.0L/min |
