BFL-CW2000T

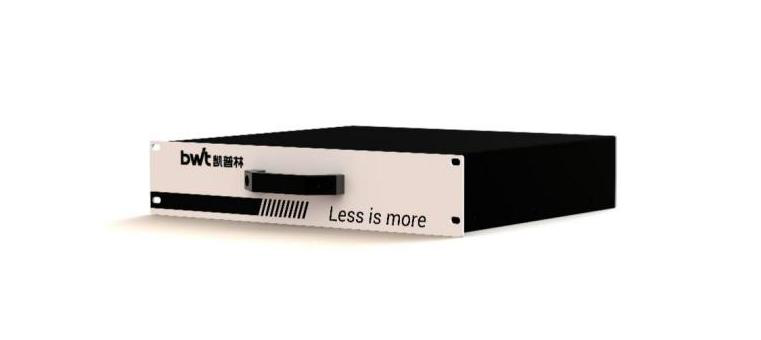

The BWT BFL-CW2000T is a 2000W continuous-wave (CW) fiber laser from the Lightning Series, featuring excellent beam quality that allows the laser beam to be focused close to the diffraction limit. It offers both continuous and modulated pulse operating modes, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optical and electronic components are sealed inside a rugged enclosure, enabling the laser to withstand harsh industrial application conditions. It is widely used in laser welding, precision cutting and laser cleaning, and can process various steels, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics and more.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 12m, 15m or customized |
| Output Connector | QBH |
| Pilot Light | Red |
| Operating Mode | CW or Modulated |
| Polarization | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~17Kg |

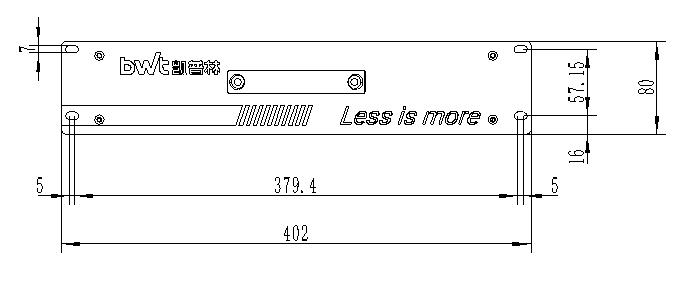

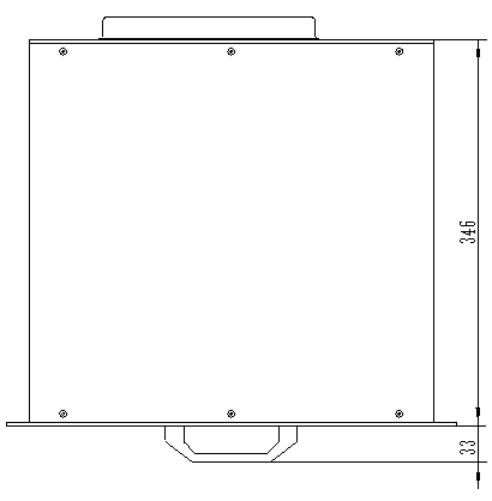

| Dimensions (H*W*D) | 80mm*402mm*346mm |
| Mounting Hole Spacing | 379.4mm |

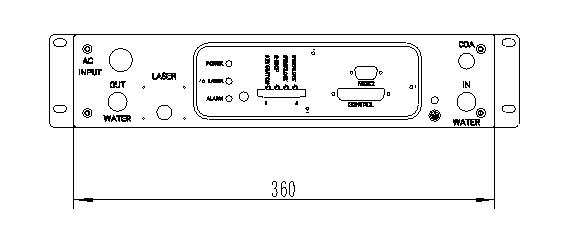

| Rear Panel Width | 360mm |
| Voltage | 220±20V, AC, PE, 50/60Hz |
| Power Consumption | 6.0kW |
| Control Mode | RS232/AD |
| Cooling Capacity Requirement | 4.5kW |
| Set Temperature | 25°C (Laser Module), 30°C (QBH) |
| Water Pipe Size (Outer Diameter) | Φ12mm |
| Cooling Water Flow | >18L/min |
| QBH Cooling Water Flow | 1.5~2.0L/min |
