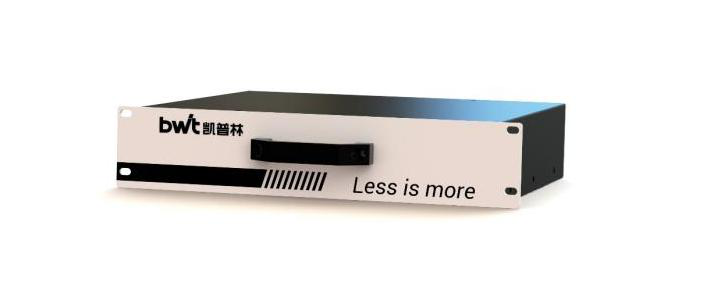

BFL-CW1000T Lightning Series Fiber Laser
The BWT BFL-CW1000T fiber laser delivers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit. Both continuous-wave and modulated-pulse operation modes are available, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged enclosure capable of withstanding harsh industrial application conditions. It can process various steels, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics. BWT has professional laser application engineers dedicated to providing high-quality laser system solutions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | 1000W |
| Output Connector | QBH |
| Pilot Beam | Red |
| Operation Mode | CW or Modulated |
| Polarization | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~14.5Kg |

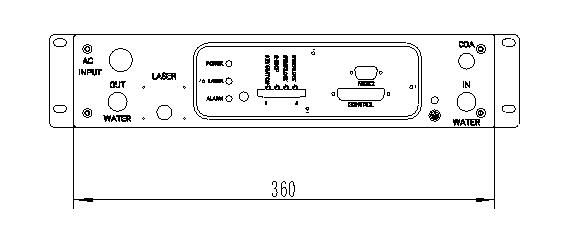

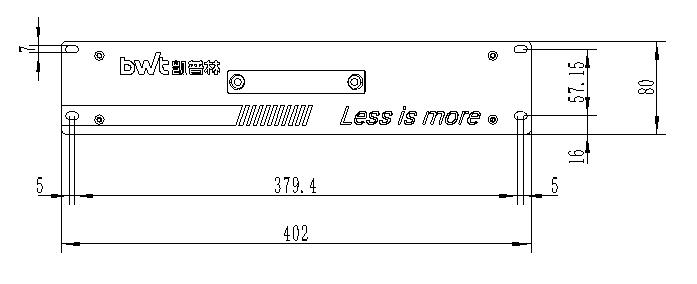

| Dimensions (H*W*D) | 80mm*402mm*296mm |
| Voltage | 220±20V, AC, PE, 50/60Hz |
| Power Consumption | 3.0kW |
| Control Mode | RS232/AD |
| Cooling Capacity Requirement | 2.5kW |
| Set Temperature | 25°C (Laser Module), 30°C (QBH) |
| Water Pipe Size (Outer Diameter) | Φ12mm |
| Cooling Water Flow | >10L/min |
| QBH Cooling Water Flow | 1.5~2.0L/min |
Applications
Key Features
Datasheet
