BFL-1030/515-20B Dual-Wavelength Femtosecond Laser
The BFL-1030/515-20B is an industrial-grade, water-cooled femtosecond laser that integrates dual-wavelength outputs in one compact enclosure: a 1030nm infrared beam with 20W average power and up to 50μJ single-pulse energy, and a frequency-doubled 515nm green beam with 10W average power and 25μJ pulse energy. Both outputs deliver an ultrashort 300fs pulse width, an adjustable repetition rate of 1-400KHz, near-diffraction-limited TEM00 beam quality (M²<1.30), 90% beam circularity, vertical polarization (100:1), and high stability (2.0% rms power stability, 3.0% rms pulse energy stability). Operating on 220V with water cooling and a 20-minute warm-up time, it is designed for high-precision, low-thermal-impact material processing in industrial and scientific environments.
Save to Favorites
Overview

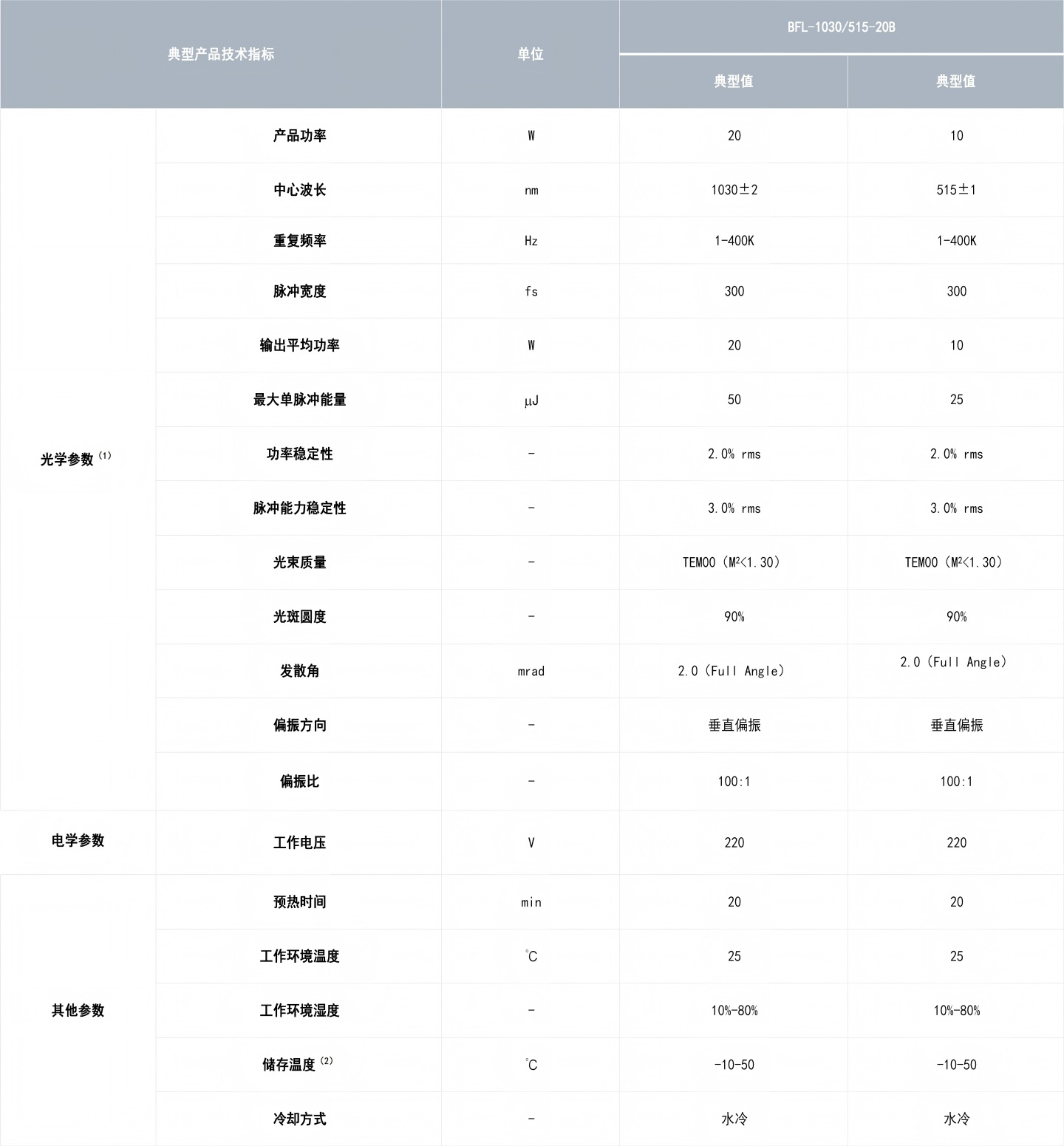

Specifications
| Parameter | Value |
|---|---|
| Product Power (1030nm Output) | 20W |
| Product Power (515nm Output) | 10W |
| Center Wavelength (1030nm Output) | 1030±2nm |
| Center Wavelength (515nm Output) | 515±1nm |
| Repetition Rate (1030nm Output) | 1-400KHz |
| Repetition Rate (515nm Output) | 1-400KHz |
| Pulse Width (1030nm Output) | 300fs |
| Pulse Width (515nm Output) | 300fs |
| Output Average Power (1030nm Output) | 20W |
| Output Average Power (515nm Output) | 10W |
| Maximum Single Pulse Energy (1030nm Output) | 50μJ |
| Maximum Single Pulse Energy (515nm Output) | 25μJ |
| Power Stability (1030nm Output) | 2.0%rms |
| Power Stability (515nm Output) | 2.0%rms |
| Pulse Energy Stability (1030nm Output) | 3.0%rms |
| Pulse Energy Stability (515nm Output) | 3.0%rms |
| Beam Quality (1030nm Output) | TEM00 (M²<1.30) |
| Beam Quality (515nm Output) | TEM00 (M²<1.30) |
| Beam Circularity (1030nm Output) | 90% |
| Beam Circularity (515nm Output) | 90% |
| Divergence Angle (1030nm Output) | 2.0mrad (Full Angle) |
| Divergence Angle (515nm Output) | 2.0mrad (Full Angle) |
| Polarization Direction (1030nm Output) | Vertical Polarization |
| Polarization Direction (515nm Output) | Vertical Polarization |
| Polarization Ratio (1030nm Output) | 100:1 |
| Polarization Ratio (515nm Output) | 100:1 |
| Operating Voltage (1030nm Output) | 220V |
| Operating Voltage (515nm Output) | 220V |
| Warm-up Time (1030nm Output) | 20min |
| Warm-up Time (515nm Output) | 20min |
| Operating Ambient Temperature (1030nm Output) | 25℃ |
| Operating Ambient Temperature (515nm Output) | 25℃ |
| Operating Ambient Humidity (1030nm Output) | 10%-80% |
| Operating Ambient Humidity (515nm Output) | 10%-80% |
| Storage Temperature (1030nm Output) | -10-50℃ |
| Storage Temperature (515nm Output) | -10-50℃ |
| Cooling Method (1030nm Output) | Water Cooling |
| Cooling Method (515nm Output) | Water Cooling |

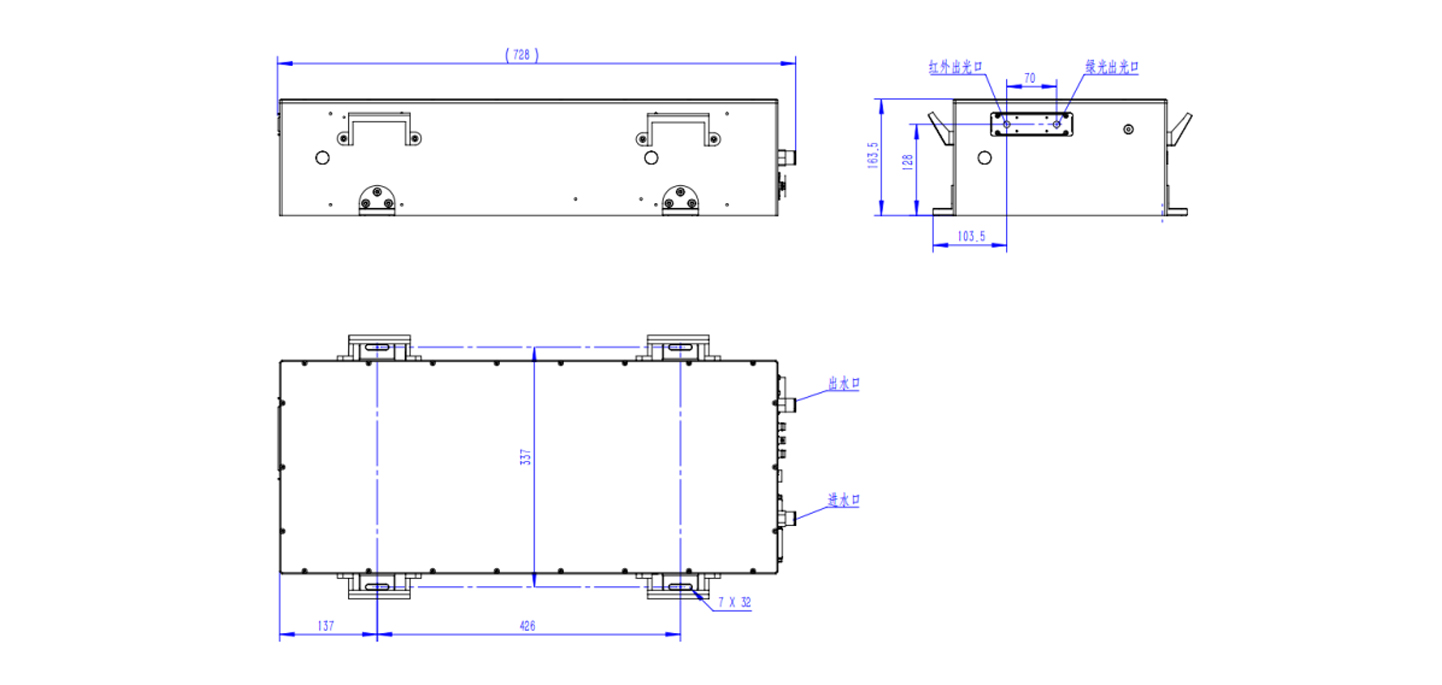

| Overall Dimensions | 728×373×163.5mm |
| Beam Exit Height | 128mm |
