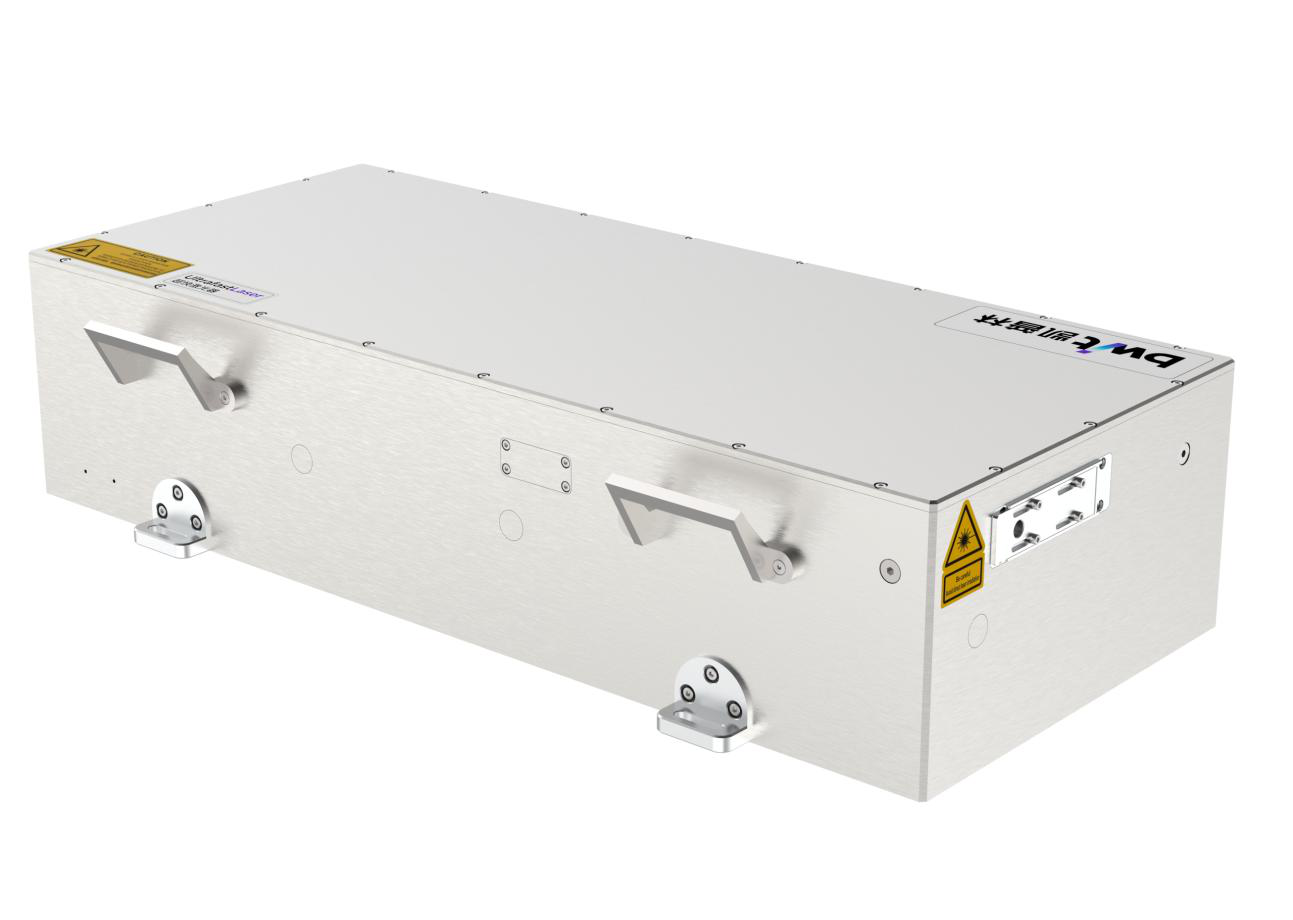

30W Infrared Femtosecond Laser (BFL-1030-30BS)
The BWT BFL-1030-30BS is a 30W infrared femtosecond laser developed by Tianjin BWT Laser Technology Co., Ltd., a national high-tech enterprise founded in 2017 and a holding subsidiary of Beijing BWT Optoelectronics Technology Co., Ltd. Operating at a center wavelength of 1030±2nm with an ultra-narrow pulse width of 300fs and a repetition rate of 1-300KHz, this water-cooled ultrafast laser delivers a maximum single pulse energy of 100μJ with TEM00 beam quality (M²<1.30) and excellent power stability (2.0% rms). Featuring a compact enclosure of L728×W345×H163.5mm, intelligent real-time monitoring, a simple control interface, and a maintenance-free, low-cost design, it is engineered for high-precision industrial micromachining. BWT Laser operates a 2,000-square-meter R&D and production facility with a 700-square-meter cleanroom and a joint laboratory with Tianjin University, and has mass-produced more than ten ultrafast laser models serving industrial micro-processing, precision marking, medical aesthetics, and scientific research.
Save to Favorites
Overview
Specifications

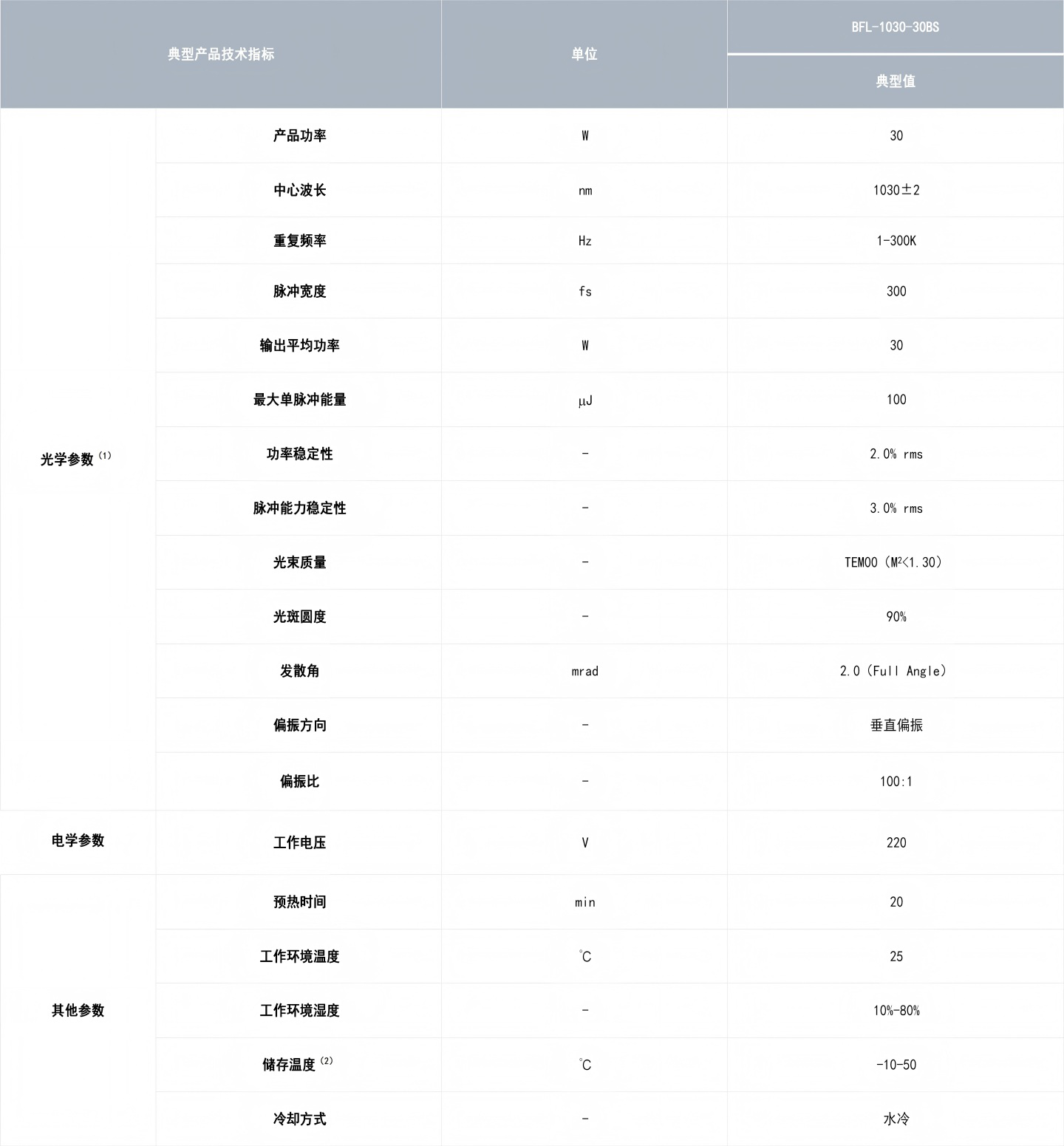

| Parameter | Value |
|---|---|
| Product Power (W) | 30 |
| Center Wavelength (nm) | 1030±2 |
| Repetition Rate (Hz) | 1-300K |
| Pulse Width (fs) | 300 |
| Output Average Power (W) | 30 |
| Maximum Single Pulse Energy (μJ) | 100 |
| Maximum Pulse Energy @300KHz (μJ) | >100 |
| Power Stability | 2.0% rms |
| Pulse Energy Stability | 3.0% rms |
| Beam Quality | TEM00 (M²<1.30) |
| Spot circularity | 90% |
| Divergence Angle (mrad) | 2.0(Full Angle) |
| Polarization Direction | 垂直偏振 |
| Polarization Ratio | 100:1 |
| Operating Voltage (V) | 220 |
| Power Supply | 110V~260V AC |
| Warm-up Time (min) | 20 |
| Operating Ambient Temperature (℃) | 25 |
| Operating Temperature (℃) | 15~35 |
| Operating Ambient Humidity | 10%-80% |
| Storage Temperature (℃) | -10~+50 |
| Cooling Method | 水冷 |
| Chiller Set Temperature (℃) | 22 |

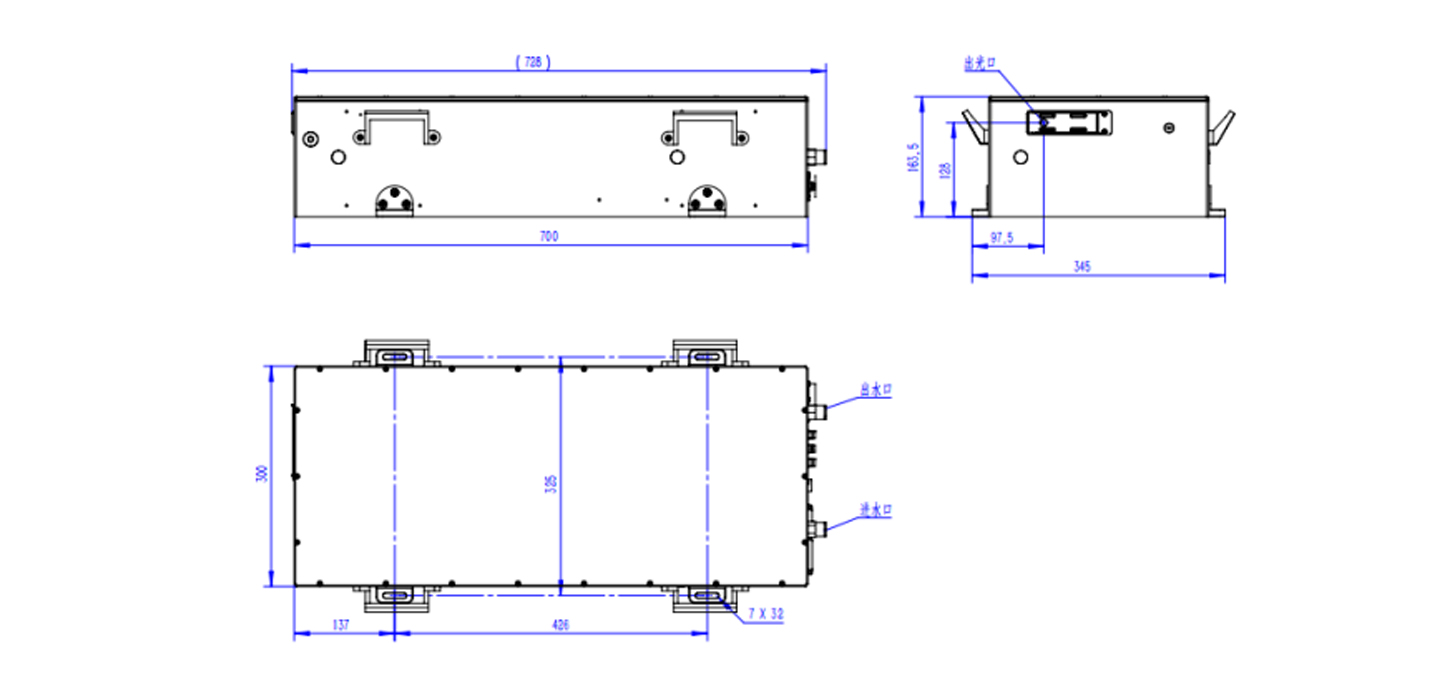

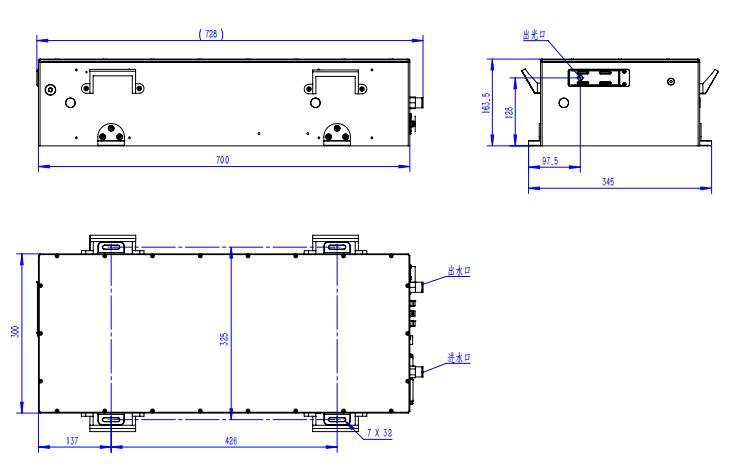

| Dimensions (mm) | L728×W345×H163.5 |
